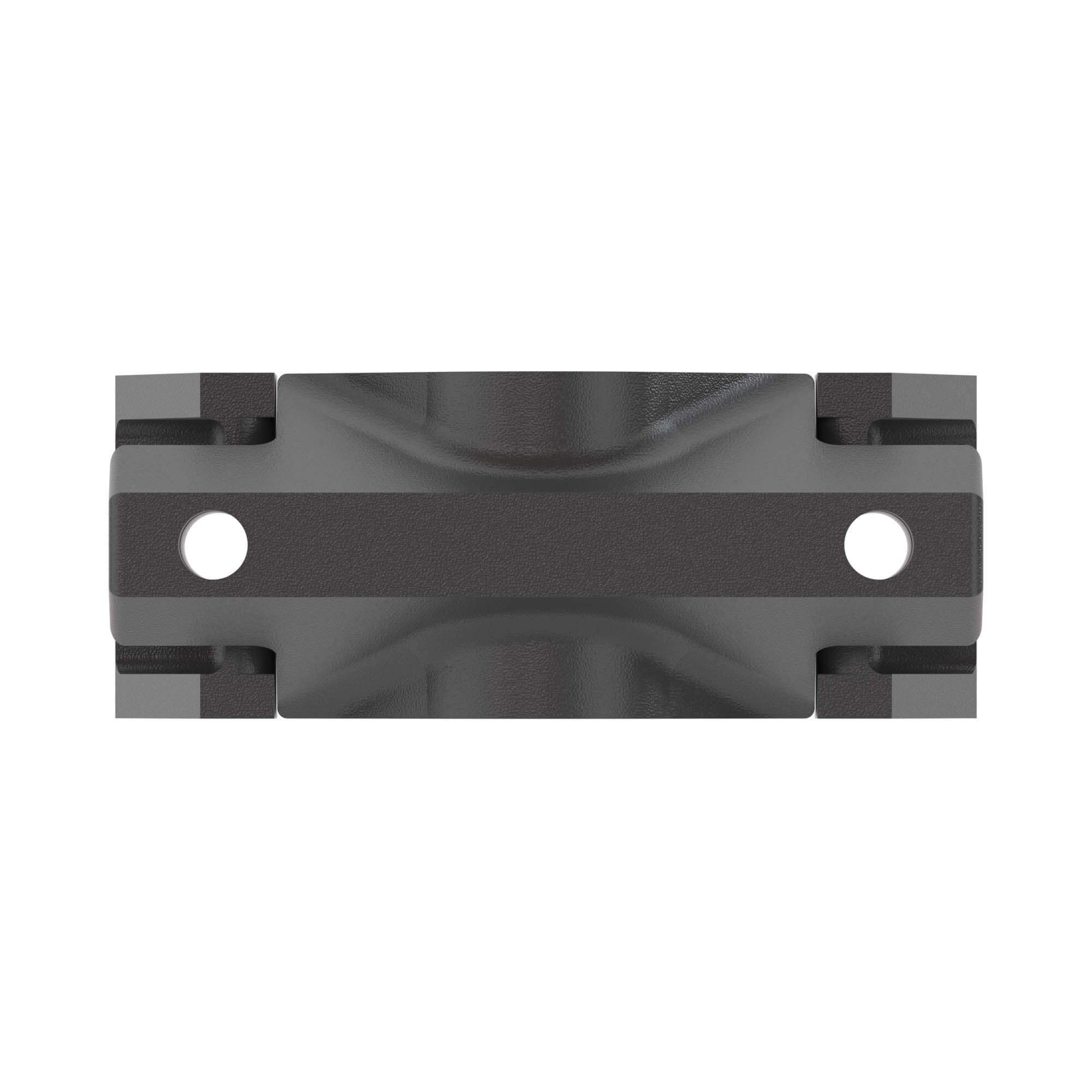

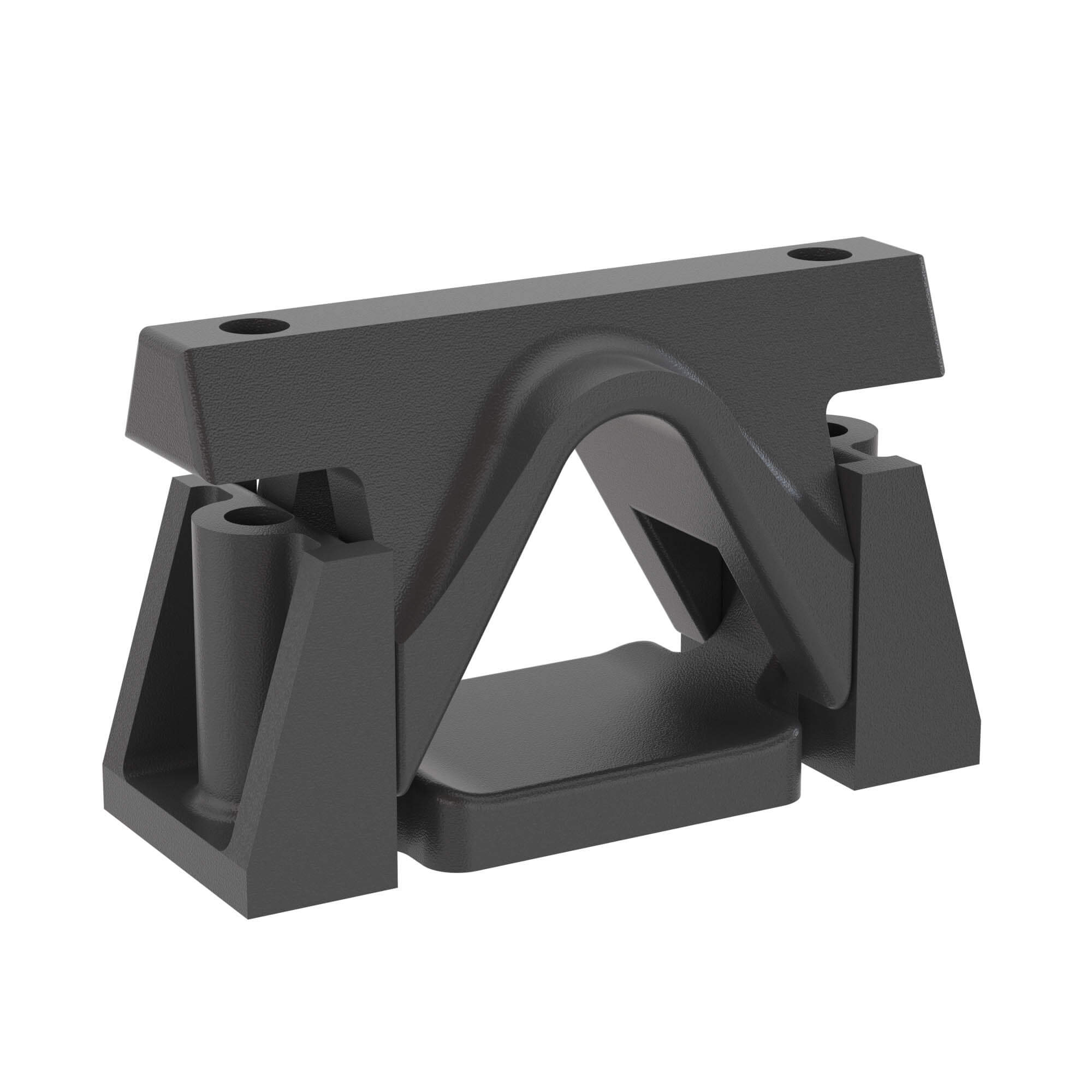

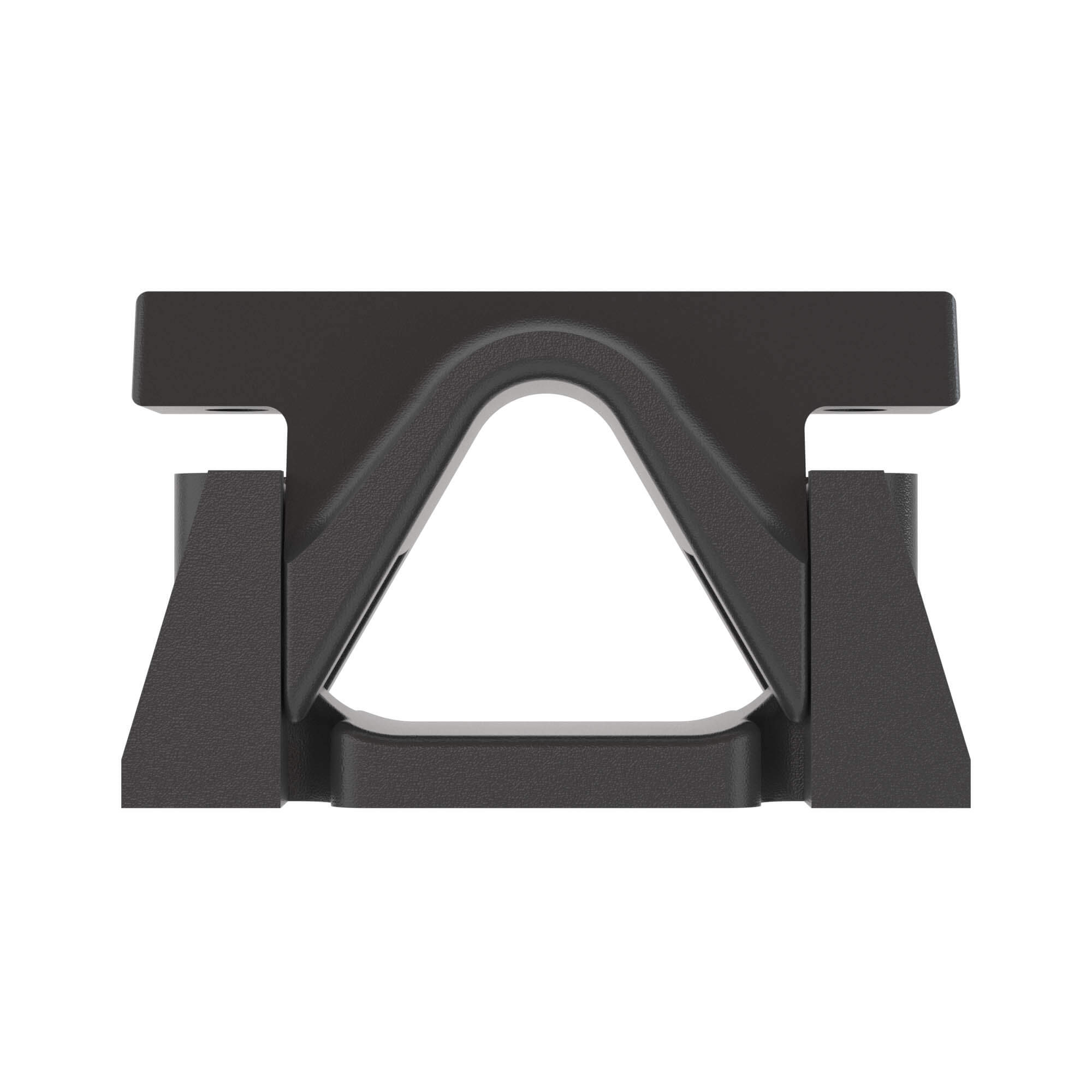

Cable holder for mounting in the triangle, 35-55 mm
Code: BHR3505
Cable holder for mounting in the triangle, 35-55 mm
Code: BHR3505
| Mounting method | Other |
| Halogen free | Yes |
| Max. number of cables | 3 |
| Chucking range, mm | 35...55 |
| With plastic tray | No |
| With metal tray | No |
| Surface protection clamp | Other |
| Surface protection screw | Other |
| Material screw | Other |
| Material clamp | Other |
| Colour | Black |
| Width | 70 |
| Height | 150 |
| Length | 176 |
| Material | Ployamide |
| Type | Fittings |
| Diameter (nominal) | 35-55 mm |

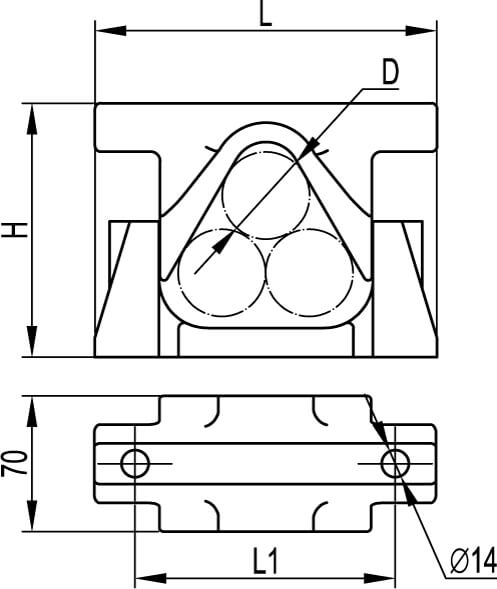

Drawings
