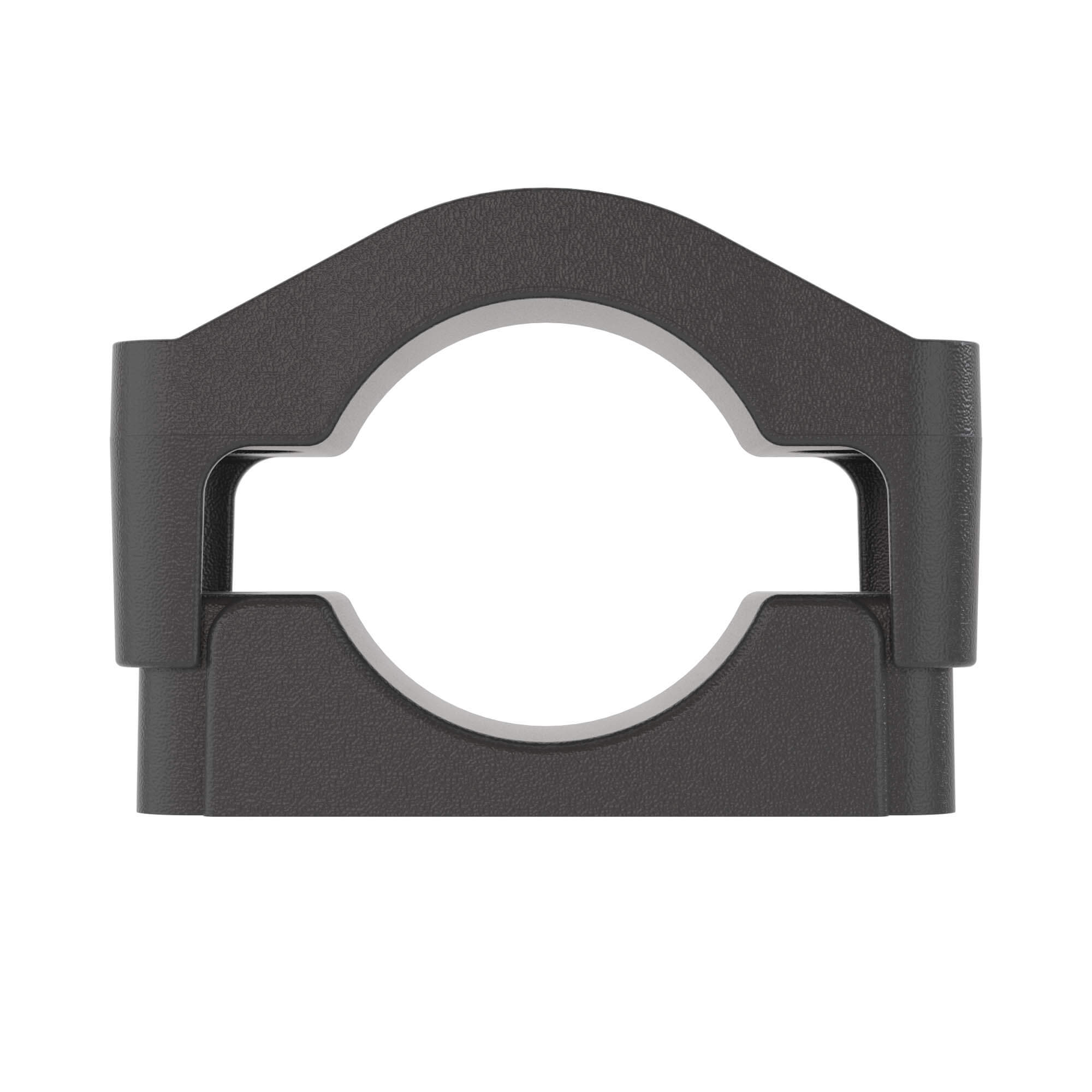

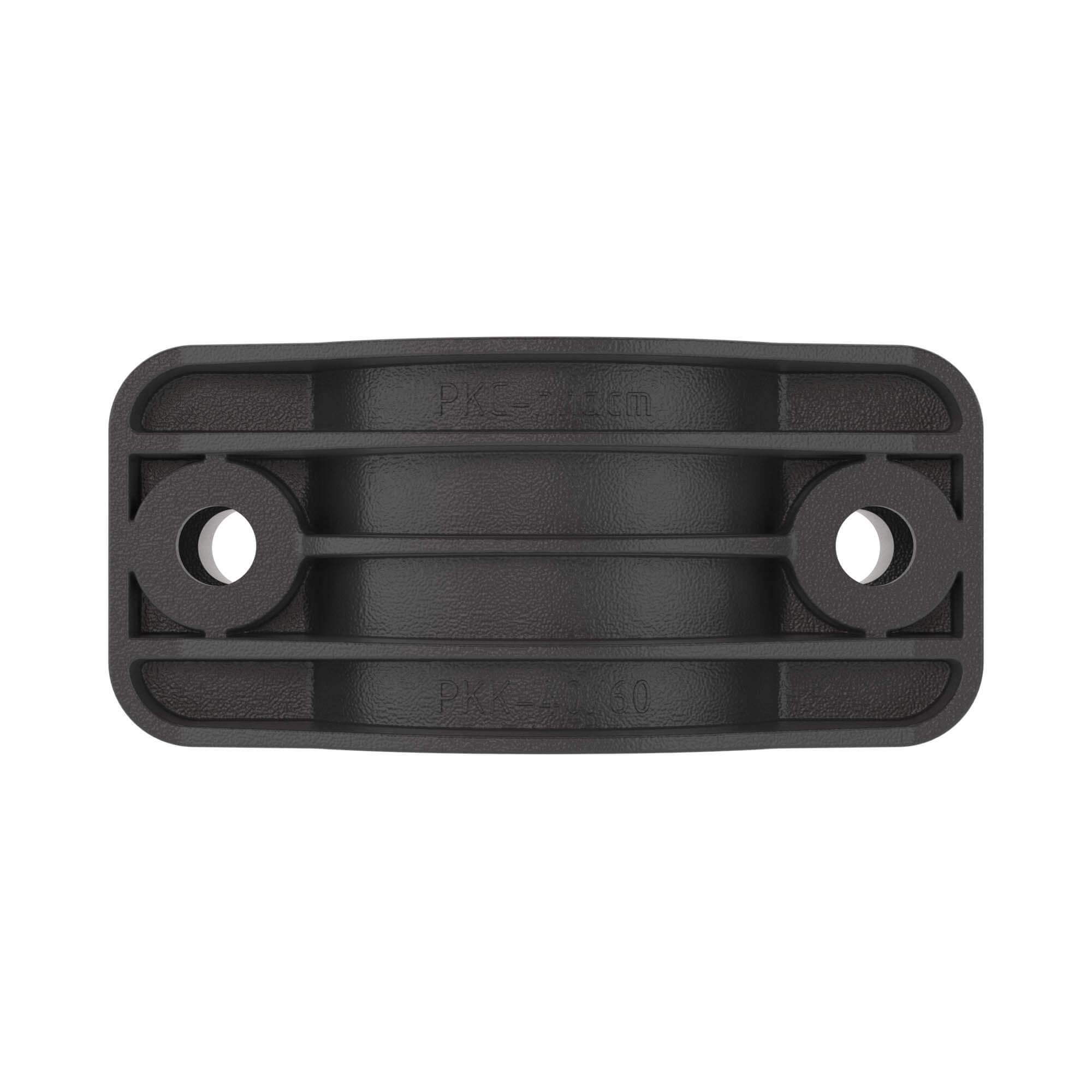

Cable holder for mounting solid and stranded cables, 40-60 mm
Code: BHR2006
Cable holder for mounting solid and stranded cables, 40-60 mm
Code: BHR2006
| Mounting method | Other |
| Halogen free | Yes |
| Max. number of cables | 1 |
| Chucking range, mm | 40...60 |
| With plastic tray | No |
| With metal tray | No |
| Surface protection clamp | Other |
| Surface protection screw | Other |
| Material screw | Other |
| Material clamp | Other |
| Colour | Black |
| Width | 55 |
| Height | 90 |
| Length | 120 |
| Material | Ployamide |
| Type | Fittings |
| Diameter (nominal) | 40-60 mm |

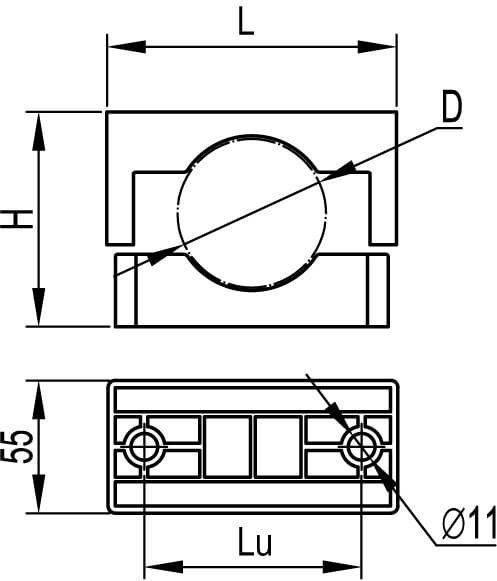

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
