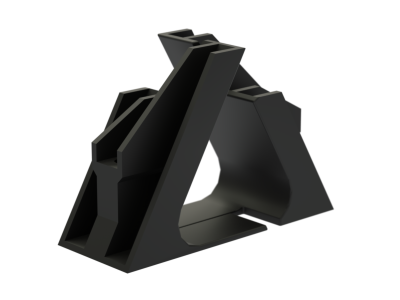

Cable holder for mounting in the triangle, 30-40 mm, type 1
Code: BHR1004
Cable holder for mounting in the triangle, 30-40 mm, type 1
Code: BHR1004
| Mounting method | Other |
| Halogen free | Yes |
| Max. number of cables | 1 |
| Chucking range, mm | 30...40 |
| With plastic tray | No |
| With metal tray | No |
| Surface protection clamp | Other |
| Surface protection screw | Other |
| Material screw | Other |
| Material clamp | Other |
| Colour | Black |
| Width | 60 |
| Height | 108 |
| Length | 103 |
| Material | Ployamide |
| Diameter (nominal) | 30-40 mm |

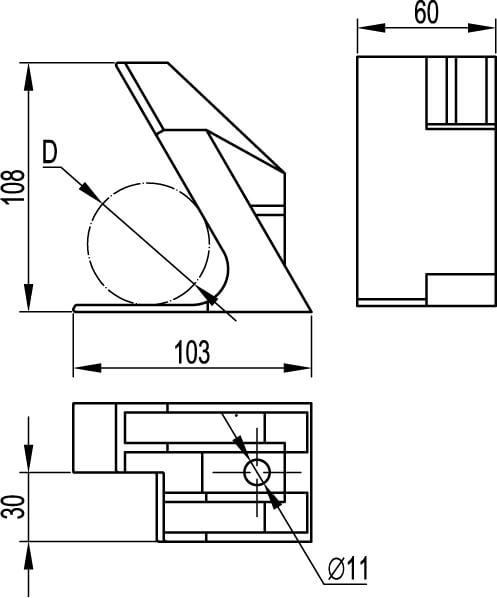

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
