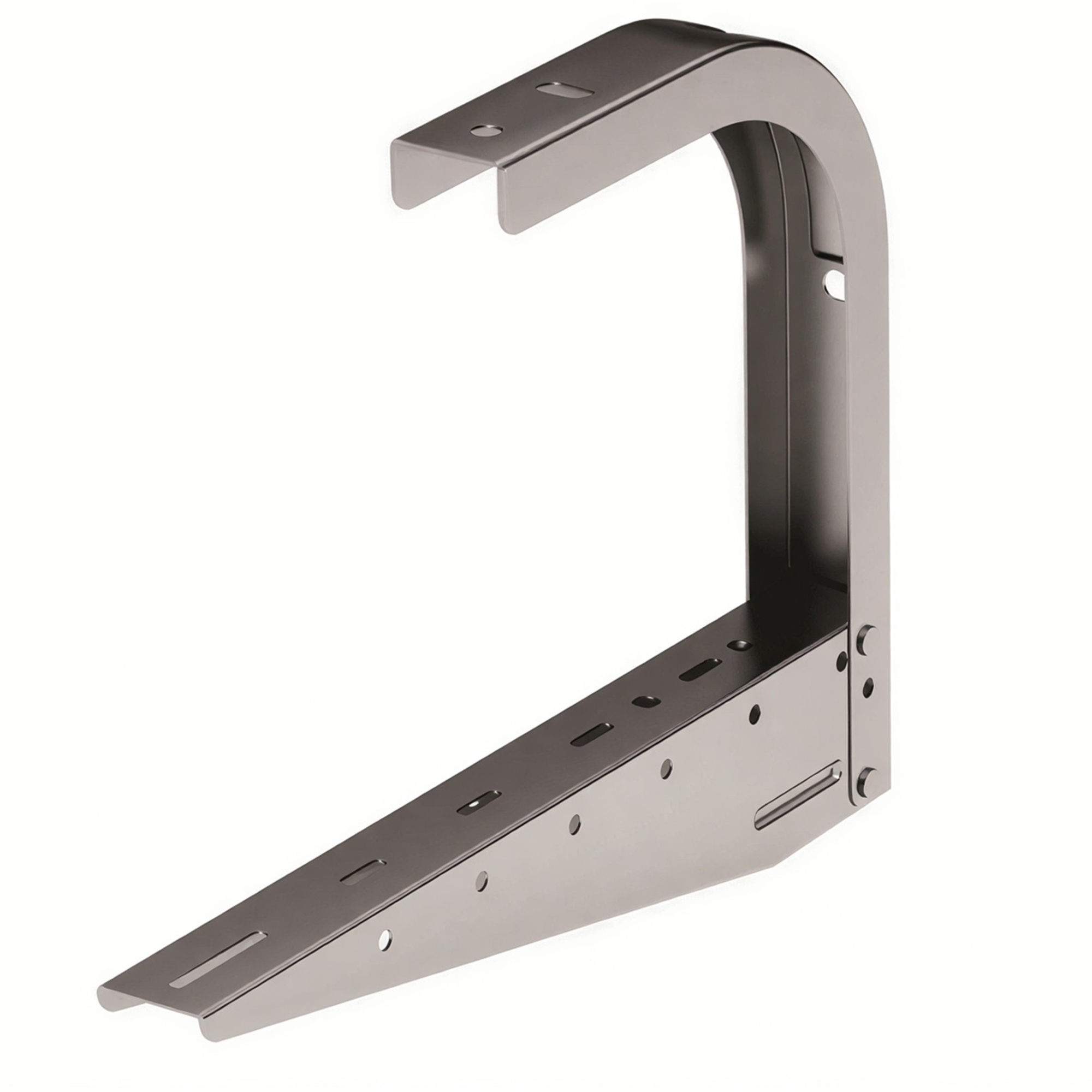

| Model | Face out bracket (C-bracket) |
| Material | Steel |
| Load bearing capacity, N | 785 |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Tray mounting | Screwable |
| Suitable for circuit integrity | No |
| Surface protection | Galvanic/electrolytic zinc plated |
| Suitable for cable management system width, mm | 400...400 |
| Material quality | Steel galvanised |
| Suitable for cable management system height, mm | 100 |
| Length, mm | 435 |
| Thickness of metal sheet, mm | 1,5 |
| Type | Brackets |
| Material | Pre-galvanized |
