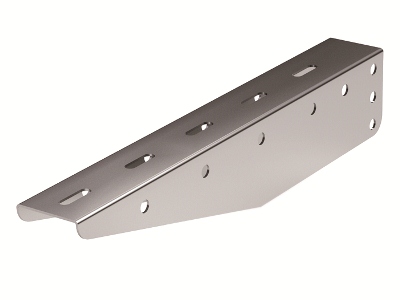

Bracket BM, L500, thickness 1,5 mm

Code: BBM5050
Bracket BM, L500, thickness 1,5 mm
Bracket BM, L500, thickness 1,5 mm

Bracket BM, L500, thickness 1,5 mm

Code: BBM5050
Colour Light grey
Width, mm 44
Model Profile console
Height, mm 80
Surface protection Sendzimir galvanized
Length, mm 530
Material Steel
Load bearing capacity, kN 1.7
Suitable for circuit integrity Yes
Length, mm 540
Thickness of metal sheet, mm 1,5
Type Brackets
Material Pre-galvanized steel
Accessories
Analogs

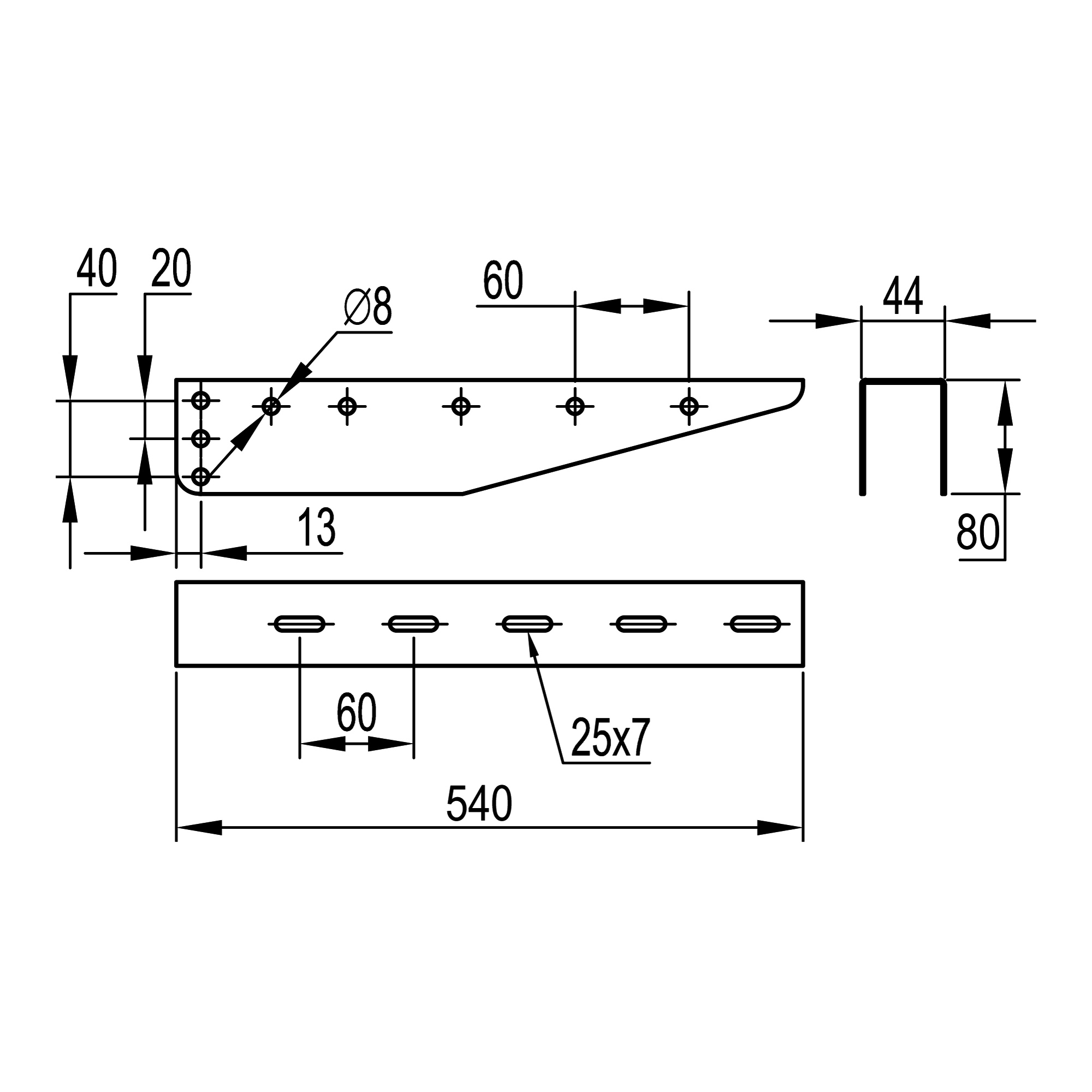

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
B5 Combitech - mounting accessories
ZIP
1.4 Mb
Mounting accessories - "B5 Combitech"
B5 Combitech - mounting accessories
RAR
313.39 Kb
ZIP
726.23 Kb
RAR
5.28 Mb
ZIP
16.63 Mb
RAR
13.65 Mb
