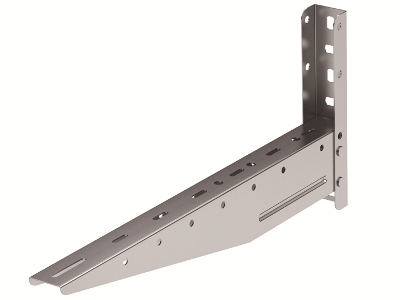

Bracket with the support ML, L500, thickness 1,5 mm
Code: BBL5550
Bracket with the support ML, L500, thickness 1,5 mm
Code: BBL5550
| Colour | Light grey |
| Width, mm | 51 |
| Model | Wall bracket |
| Height, mm | 250 |
| Surface protection | Sendzimir galvanized |
| Length, mm | 545 |
| Material | Steel |
| Load bearing capacity, kN | 2.4 |
| Suitable for circuit integrity | Yes |
| Length, mm | 546 |
| Thickness of metal sheet, mm | 1,5 |
| Type | Brackets |
| Material | Pre-galvanized steel |
Accessories
Analogs

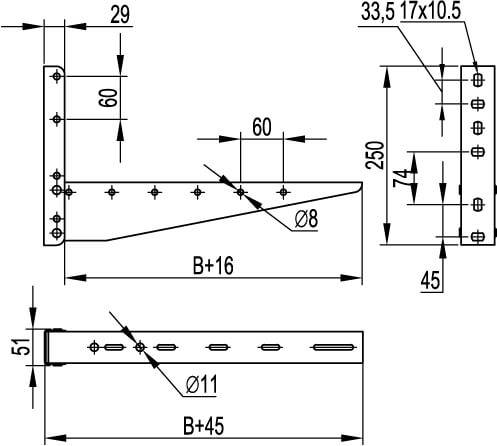

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
