Reinforced bracket, L500, thickness 2,5 mm
Code: BBH6050
Reinforced bracket, L500, thickness 2,5 mm
Code: BBH6050
Colour | Light grey |
Width, mm | 40 |
Model | Profile console |
Height, mm | 158 |
Surface protection | Sendzimir galvanized |
Length, mm | 533 |
Material | Steel |
Load bearing capacity, kN | 3.2 |
Suitable for circuit integrity | Yes |
Width, mm | 40 |
Length, mm | 533 |
Thickness of metal sheet, mm | 2,5 |
Type | Brackets |
Material | Pre-galvanized steel |
Accessories
Analogs
The accompanying goods

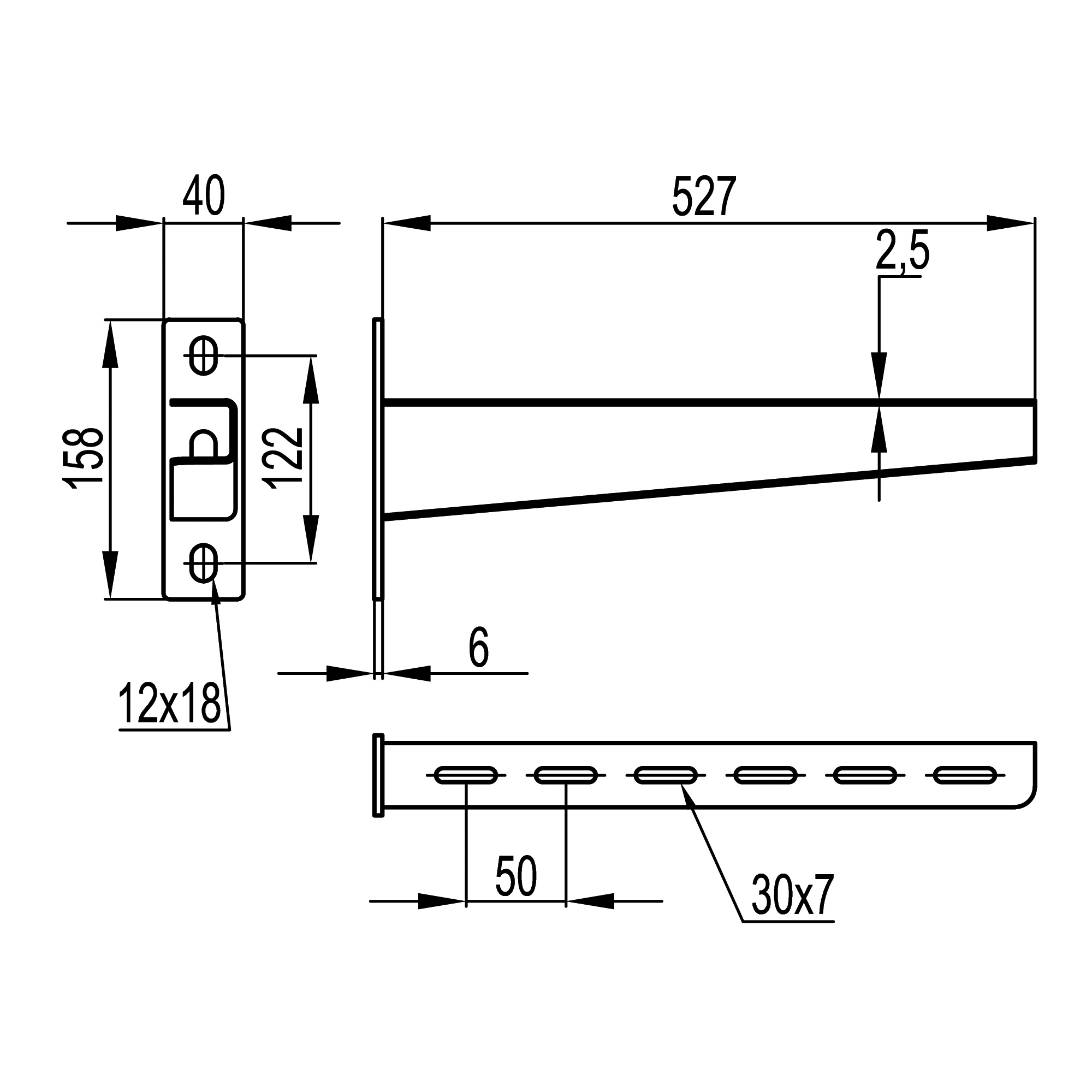

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
