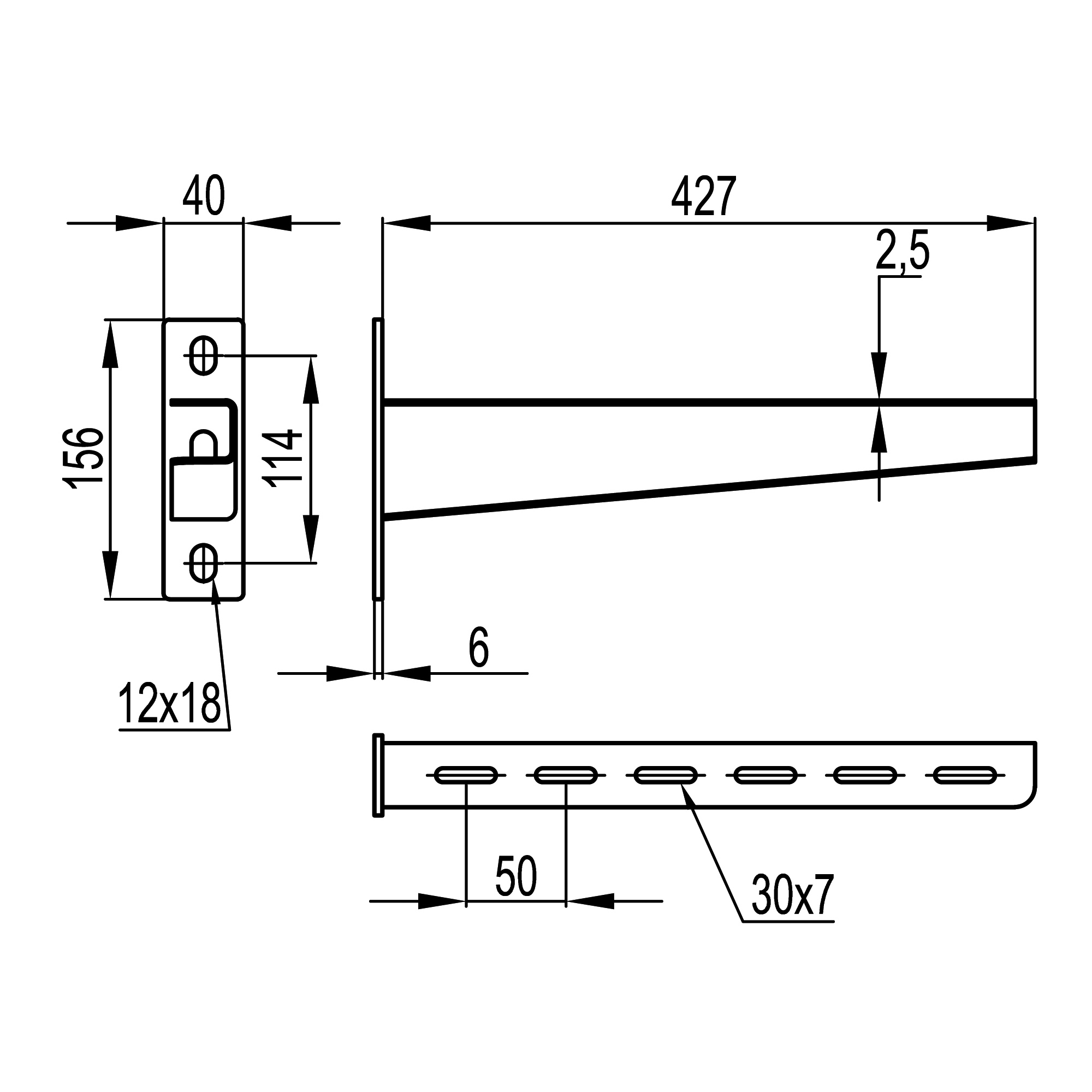

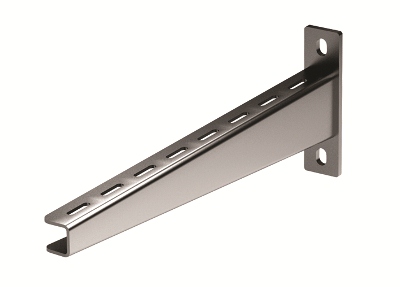

Reinforced bracket, L400, thickness 2,5 mm

Code: BBH6040
Reinforced bracket, L400, thickness 2,5 mm
Reinforced bracket, L400, thickness 2,5 mm

Reinforced bracket, L400, thickness 2,5 mm

Code: BBH6040
Colour Light grey
Width, mm 40
Model Profile console
Height, mm 150
Surface protection Sendzimir galvanized
Length, mm 433
Material Steel
Load bearing capacity, kN 3.4
Suitable for circuit integrity Yes
Width, mm 40
Length, mm 433
Thickness of metal sheet, mm 2,5
Type Brackets
Material Pre-galvanized steel
Accessories
Analogs
The accompanying goods
Drawings
