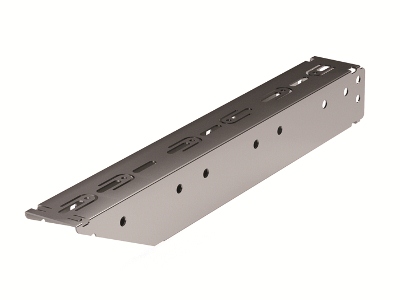

Bracket with quick hookup BBF, L200, thickness 1,5 mm
Code: BBF5020
Bracket with quick hookup BBF, L200, thickness 1,5 mm
Code: BBF5020
| Colour | Light grey |
| Width, mm | 54 |
| Model | Clamping console |
| Height, mm | 60 |
| Surface protection | Sendzimir galvanized |
| Length, mm | 257 |
| Material | Steel |
| Load bearing capacity, kN | 2.3 |
| Suitable for circuit integrity | Yes |
| Height, mm | 60 |
| Width, mm | 54 |
| Length, mm | 257 |
| Thickness of metal sheet, mm | 1,5 |
| Type | Brackets |
| Material | Pre-galvanized steel |
Accessories
Analogs

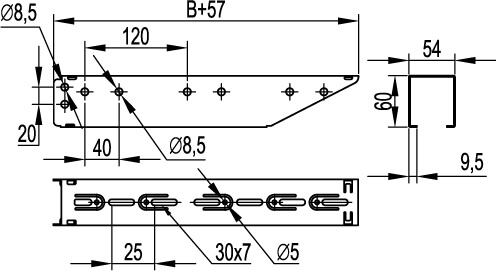

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
