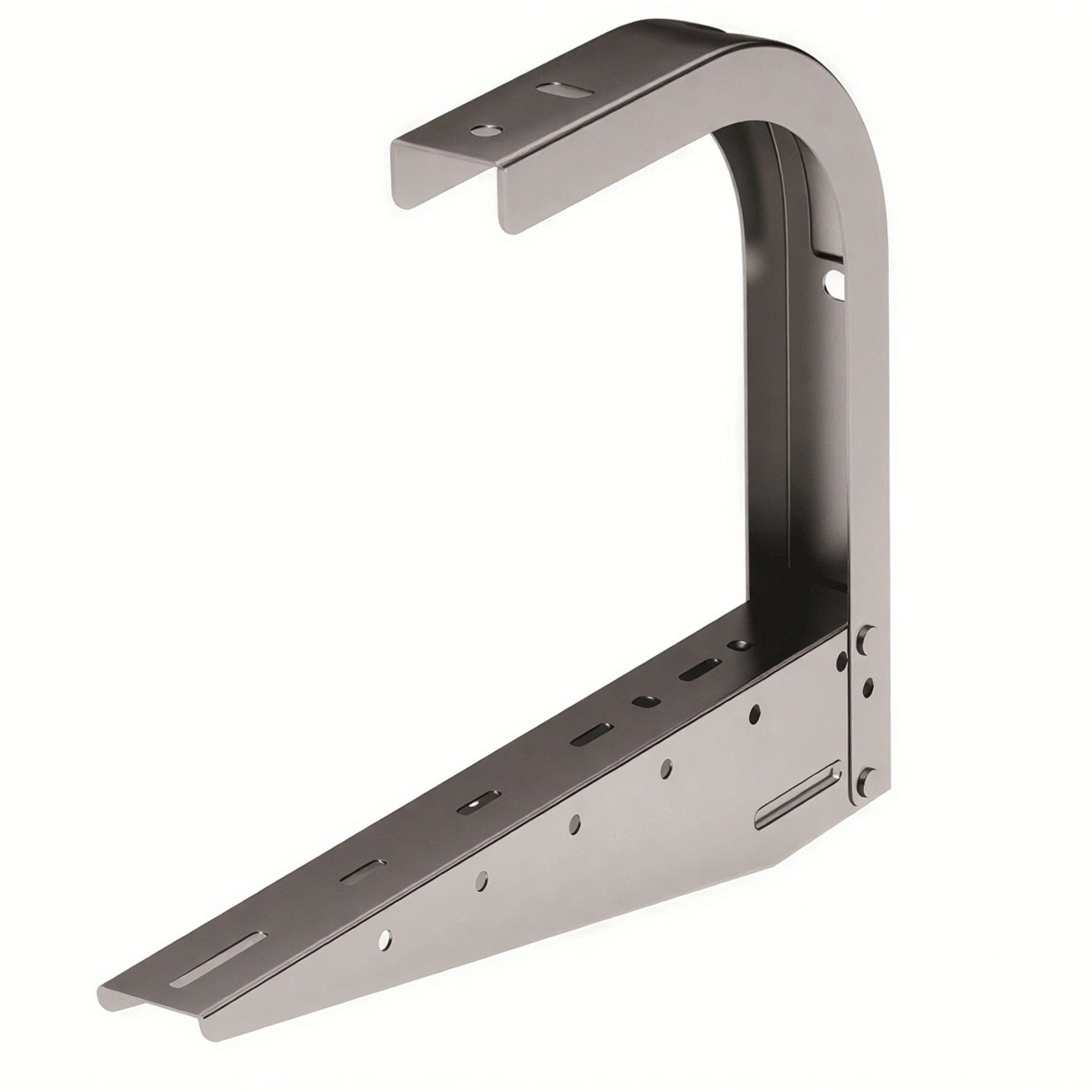

Overhead bracket CS, L200, thickness 1,5 mm

Code: BBA2020
Overhead bracket CS, L200, thickness 1,5 mm
Overhead bracket CS, L200, thickness 1,5 mm

Overhead bracket CS, L200, thickness 1,5 mm

Code: BBA2020
Model Face out bracket (C-bracket)
Material Steel
Load bearing capacity, N 1177
Suitable for wire mesh tray Yes
Suitable for cable ladder Yes
Suitable for cable tray Yes
Tray mounting Screwable
Suitable for circuit integrity No
Length, mm 235
Thickness of metal sheet, mm 1,5
Type Brackets
Material Pre-galvanized steel
Accessories
Analogs

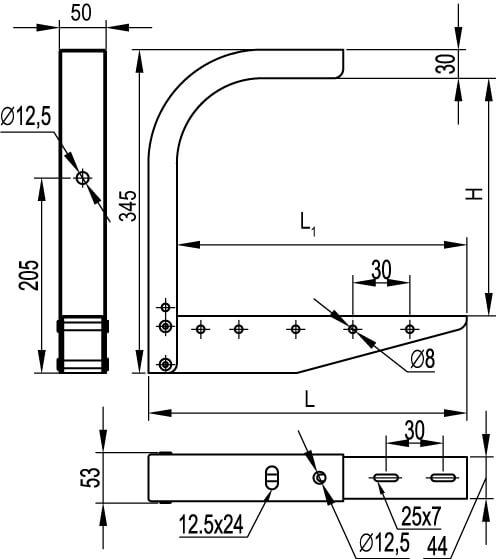

Drawings
