C-profile 41x21, L2000 thickness 2,0 mm

Code: BPV2120

C-profile 41x21, L2000 thickness 2,0 mm

Code: BPV2120
Model Singular profile
Height, mm 21
Surface protection Continuously galvanized
Material thickness, mm 2
Length, mm 2000
Material Steel
Type of perforation Back perforated
Profile shape C-profile
Slit width, mm 10.5
Hole width, mm 10.5
Suitable for circuit integrity Yes
Colour Light grey
Material Pre-galvanized steel
Accessories
Analogs

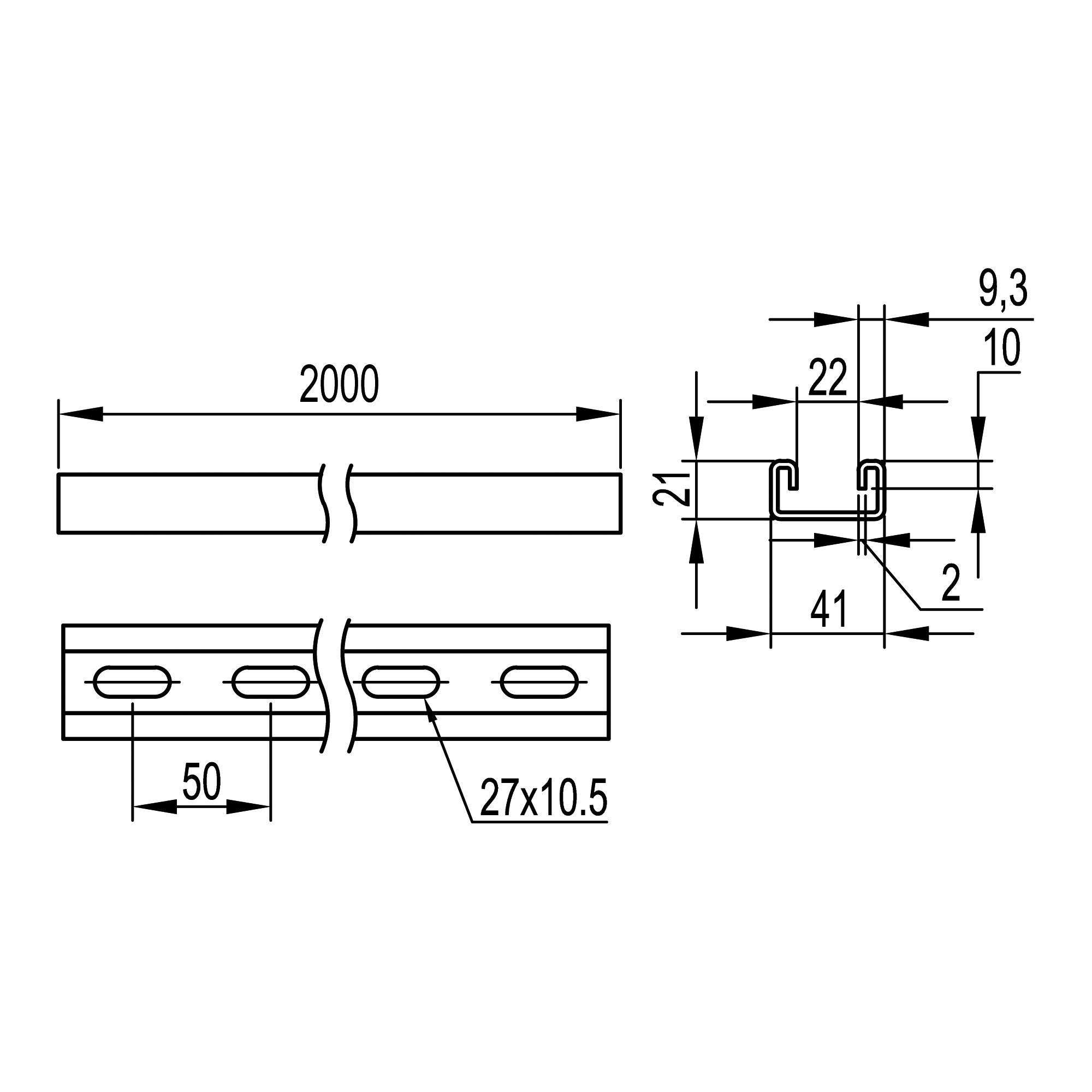

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
