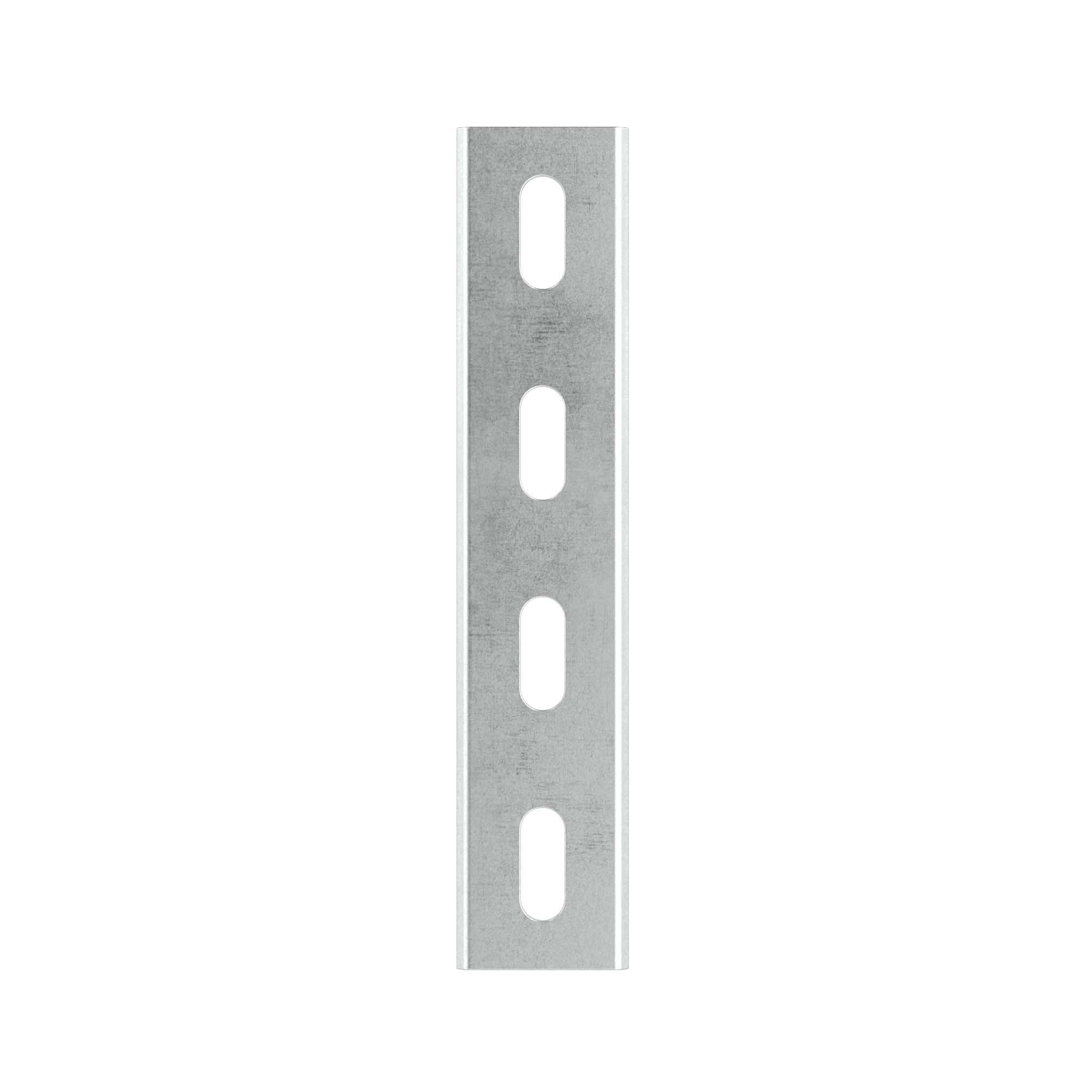

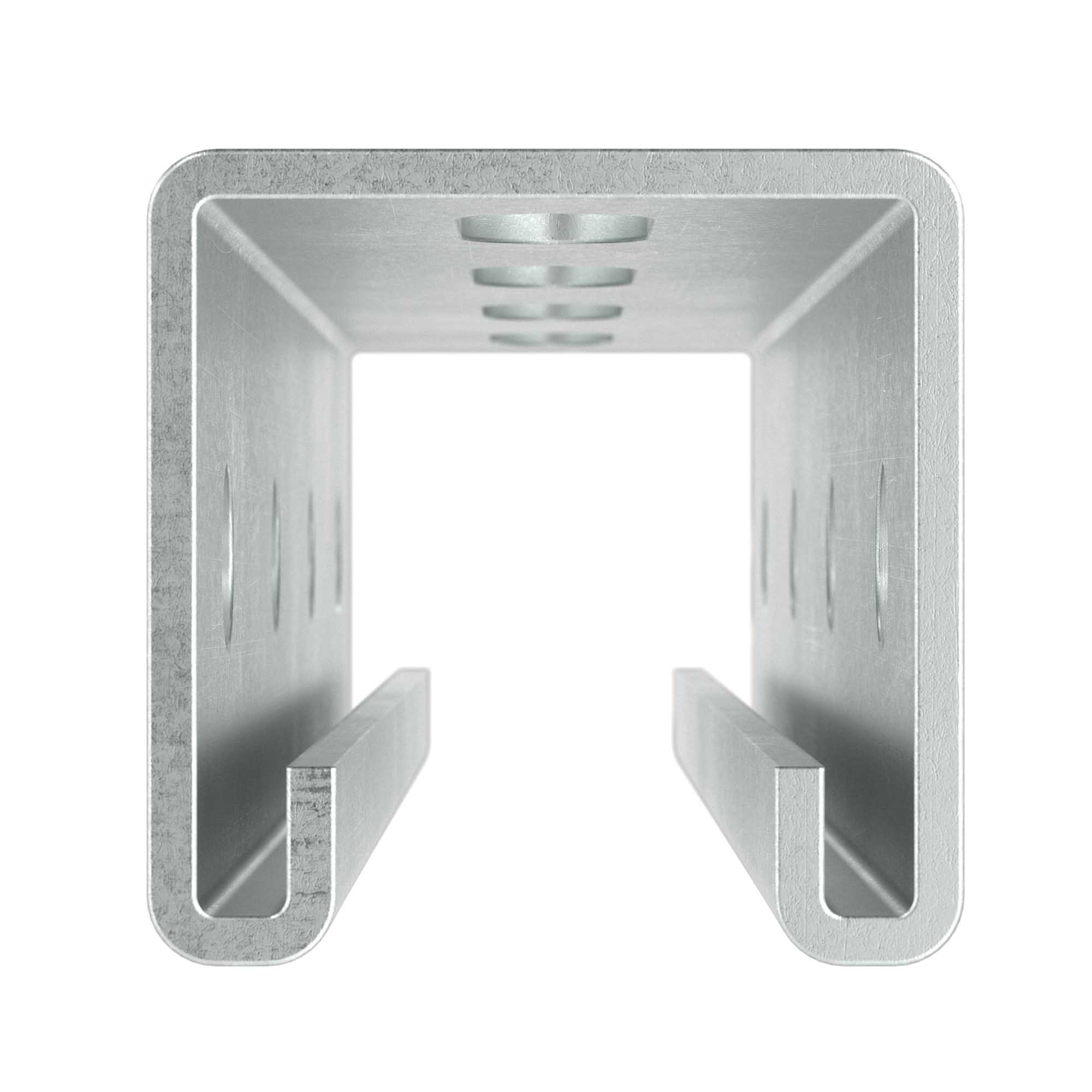

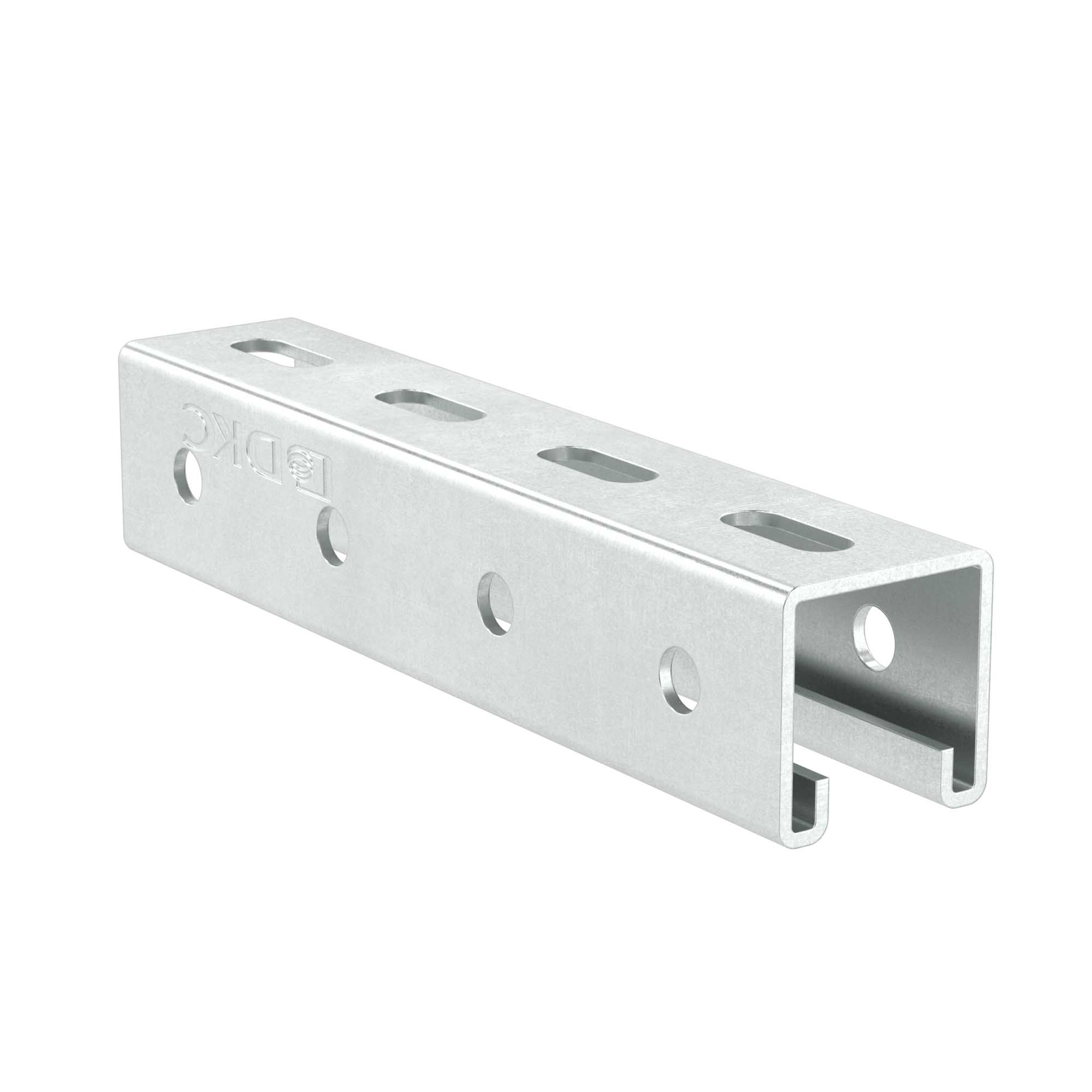

C-profile 41x41 LAS, L600, thickness 2,5 mm
Code: BPM4106
C-profile 41x41 LAS, L600, thickness 2,5 mm
Code: BPM4106
| Model | Singular profile |
| Height, mm | 41 |
| Surface protection | Continuously galvanized |
| Material thickness, mm | 2.5 |
| With toothing | Yes |
| Length, mm | 600 |
| Material | Steel |
| Type of perforation | 3 sides punched |
| Profile shape | C-profile |
| Slit width, mm | 22 |
| Hole width, mm | 10.5 |
| Snap-off | Yes |
| Suitable for circuit integrity | Yes |
| Colour | Light grey |
| Material | Pre-galvanized steel |
| Height, mm | 41 |
| Width, mm | 41 |
| Length, mm | 600 |
| Thickness of metal sheet, mm | 2,5 |
| Type | Mounting rails |
Analogs
The accompanying goods

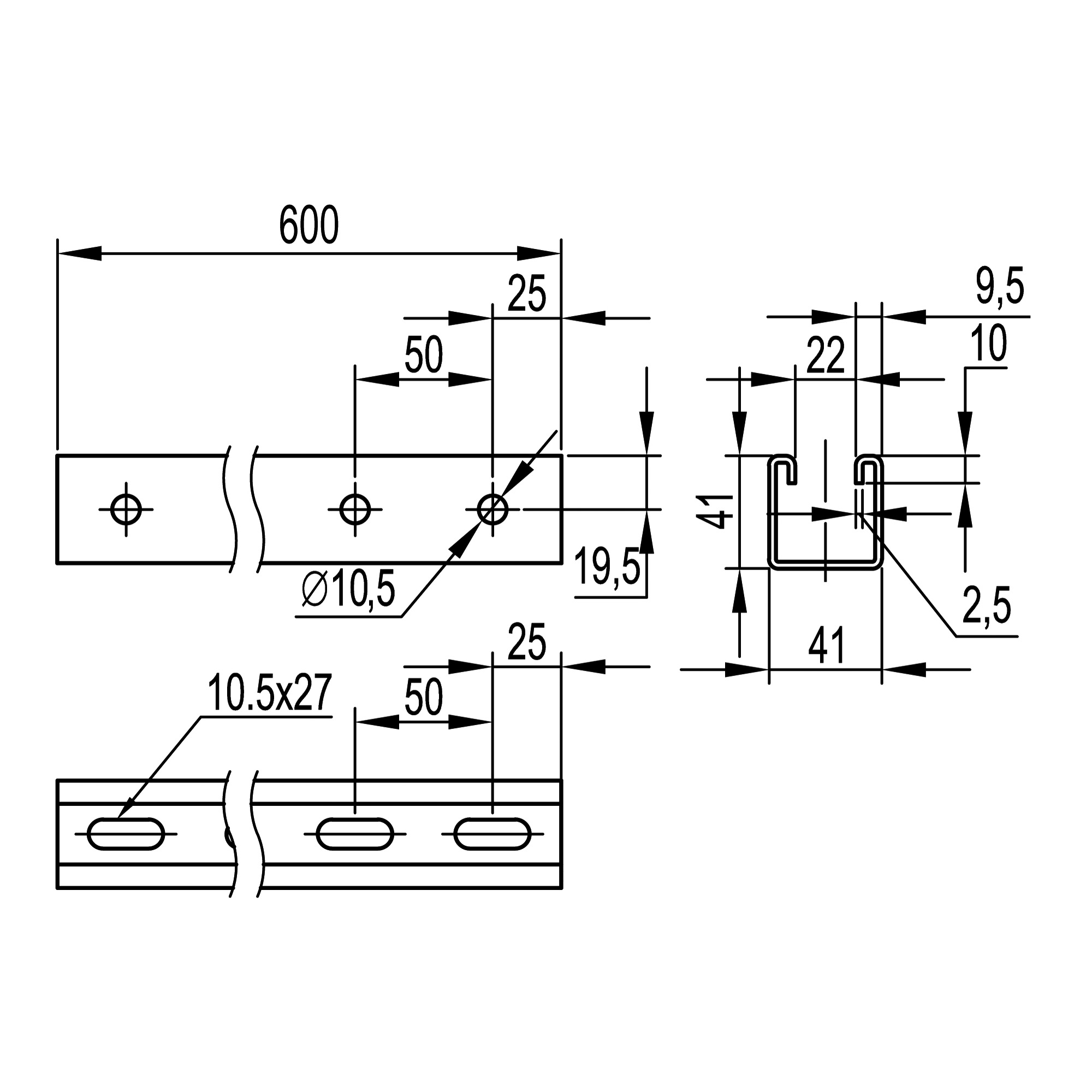

Drawings
