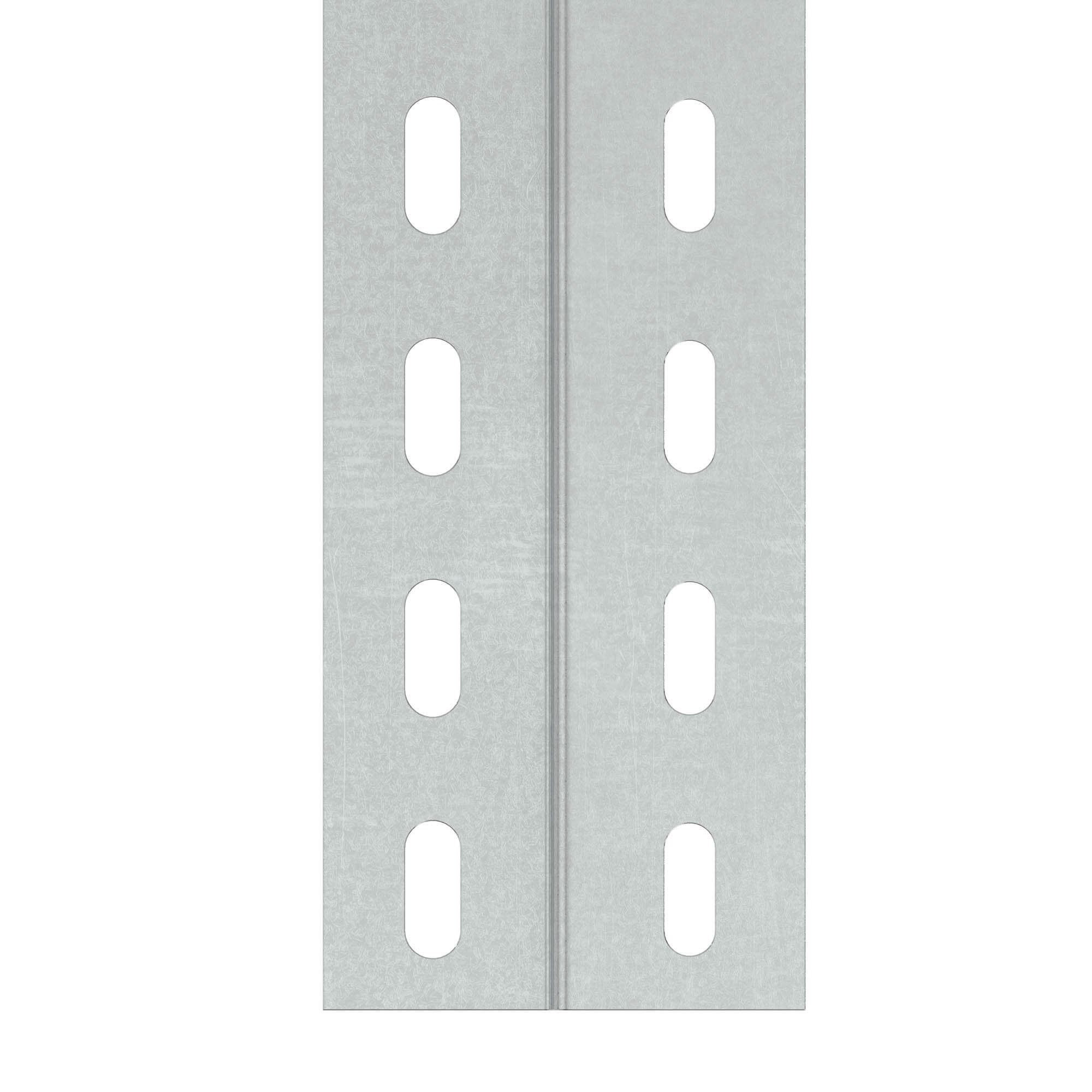

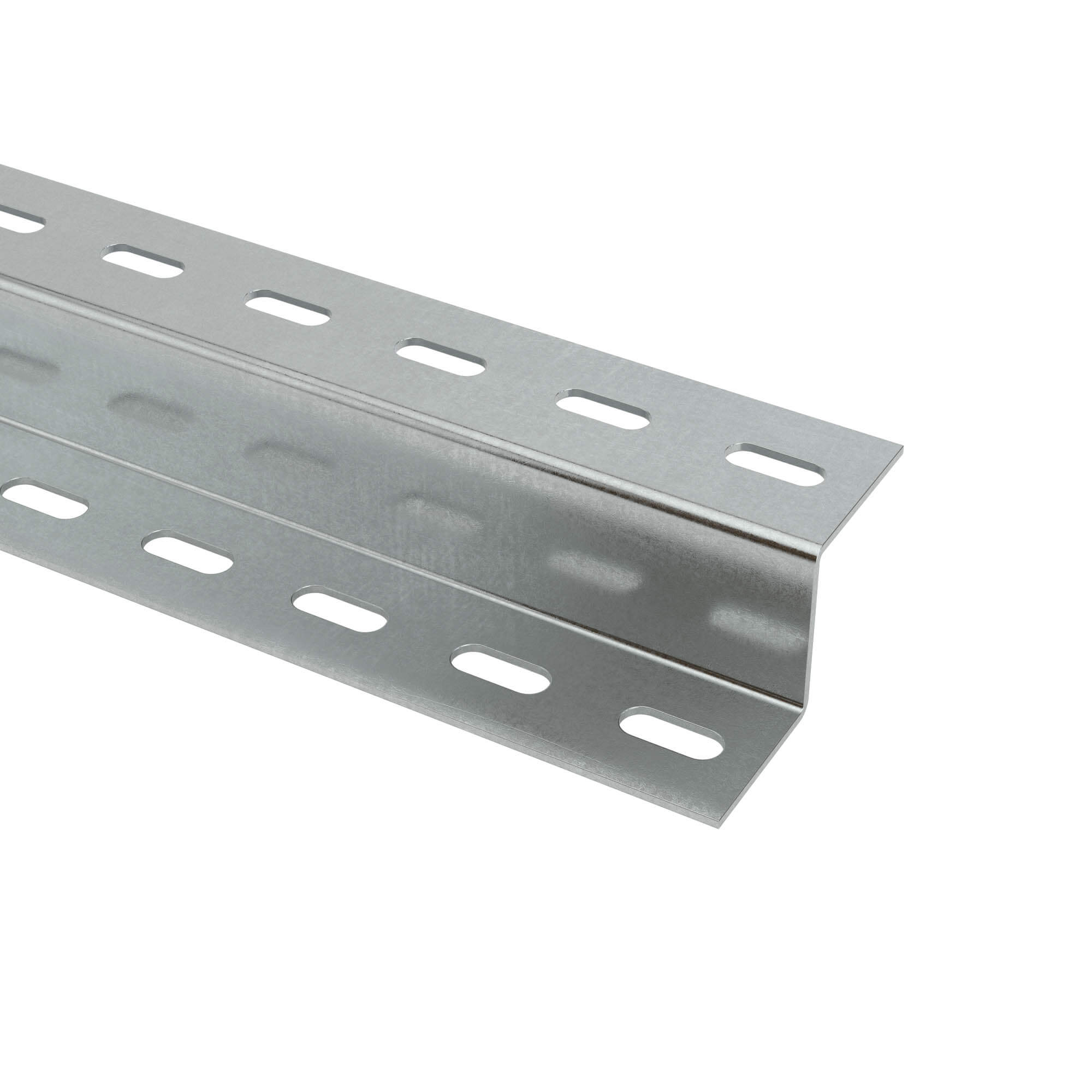

Z-profile 50х50, L2000 thickness 2,5 mm
Code: BPM3520
Z-profile 50х50, L2000 thickness 2,5 mm
Code: BPM3520
| Model | Singular profile |
| Height, mm | 50 |
| Surface protection | Continuously galvanized |
| Material thickness, mm | 2.5 |
| With toothing | No |
| Length, mm | 2000 |
| Material | Steel |
| Type of perforation | 2 sides punched |
| Profile shape | Z-profile |
| Slit width, mm | 27 |
| Hole width, mm | 10.5 |
| Snap-off | No |
| Suitable for circuit integrity | No |
| Width, mm | 102,5 |
| Length, mm | 2000 |
| Thickness, mm | 2,5 |
| Type | Mounting rails |
| Material | Pre-galvanized steel |
Accessories

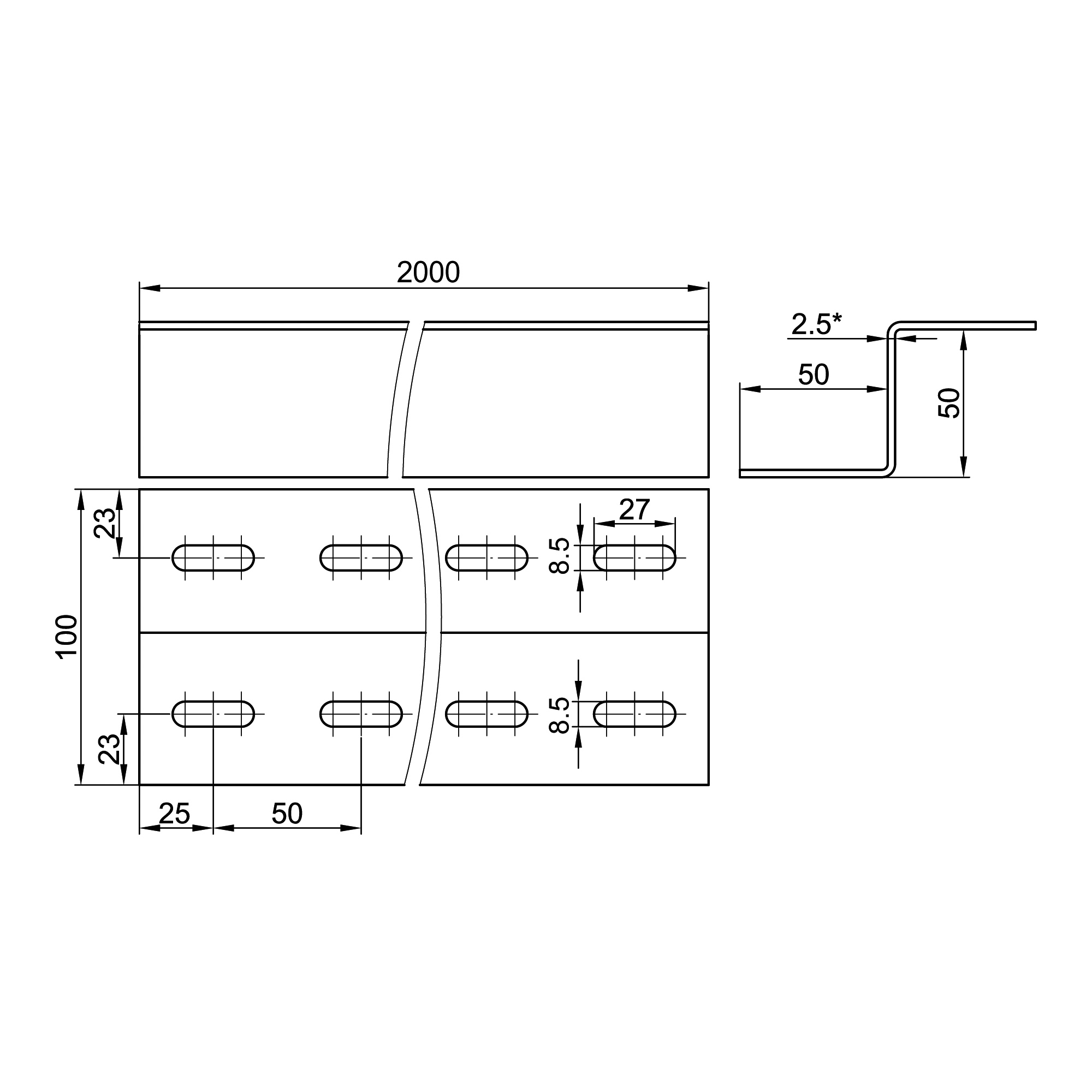

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
