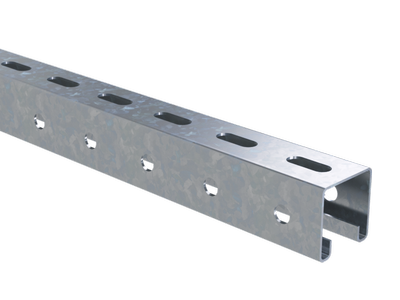

C-profile 41x41 LAS, L1800, thickness 1,5 mm

Code: BPL4118

C-profile 41x41 LAS, L1800, thickness 1,5 mm

Code: BPL4118
Model Singular profile
Height, mm 41
Surface protection Continuously galvanized
Material thickness, mm 1.5
With toothing Yes
Length, mm 1800
Material Steel
Type of perforation 3 sides punched
Profile shape C-profile
Slit width, mm 22
Hole width, mm 10.5
Snap-off Yes
Suitable for circuit integrity Yes
Colour Light grey
Length, mm 1800
Width, mm 39
Height, mm 39
Material Pre-galvanized steel
Thickness of metal sheet, mm 1.5
Type Mounting rails
Accessories
Analogs

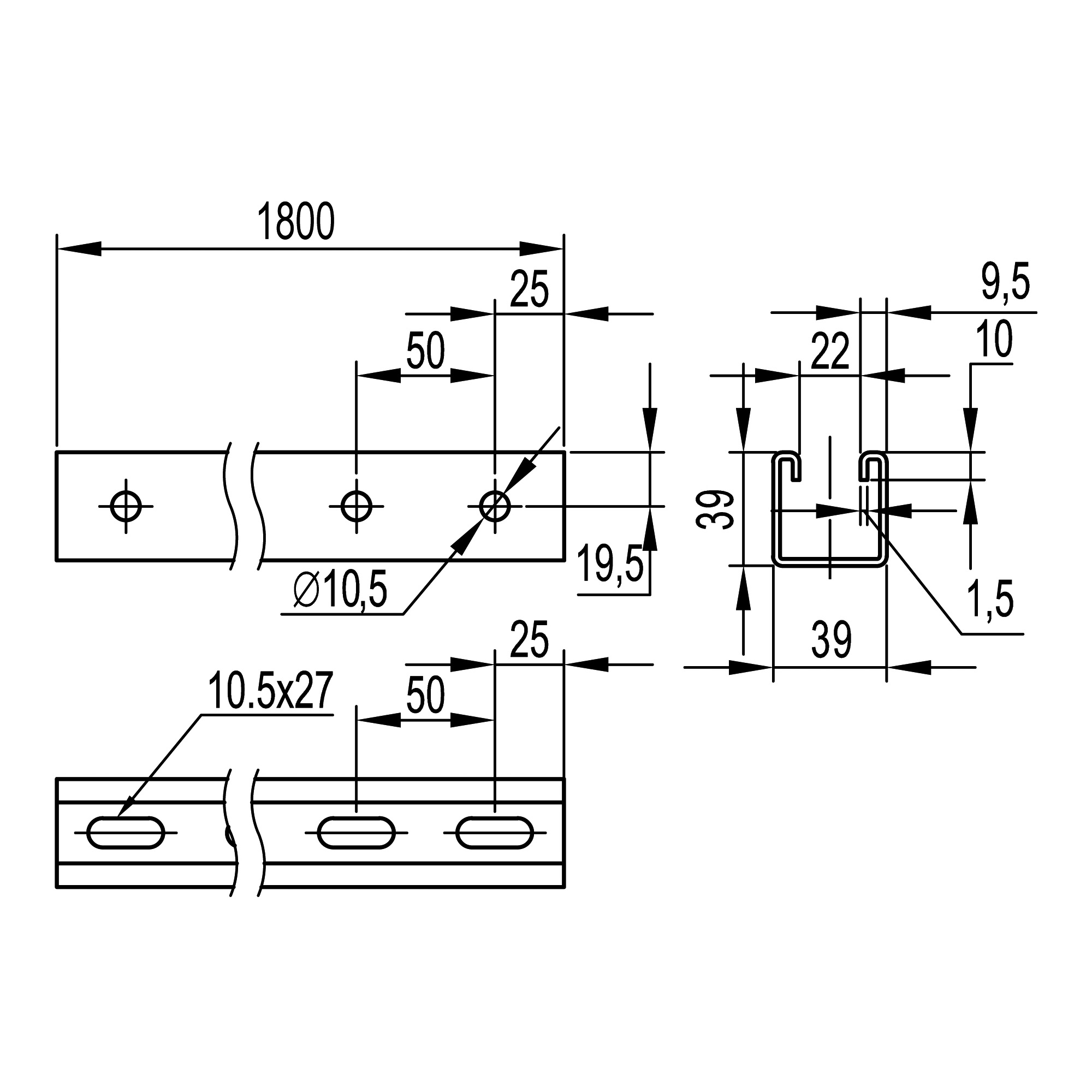

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
