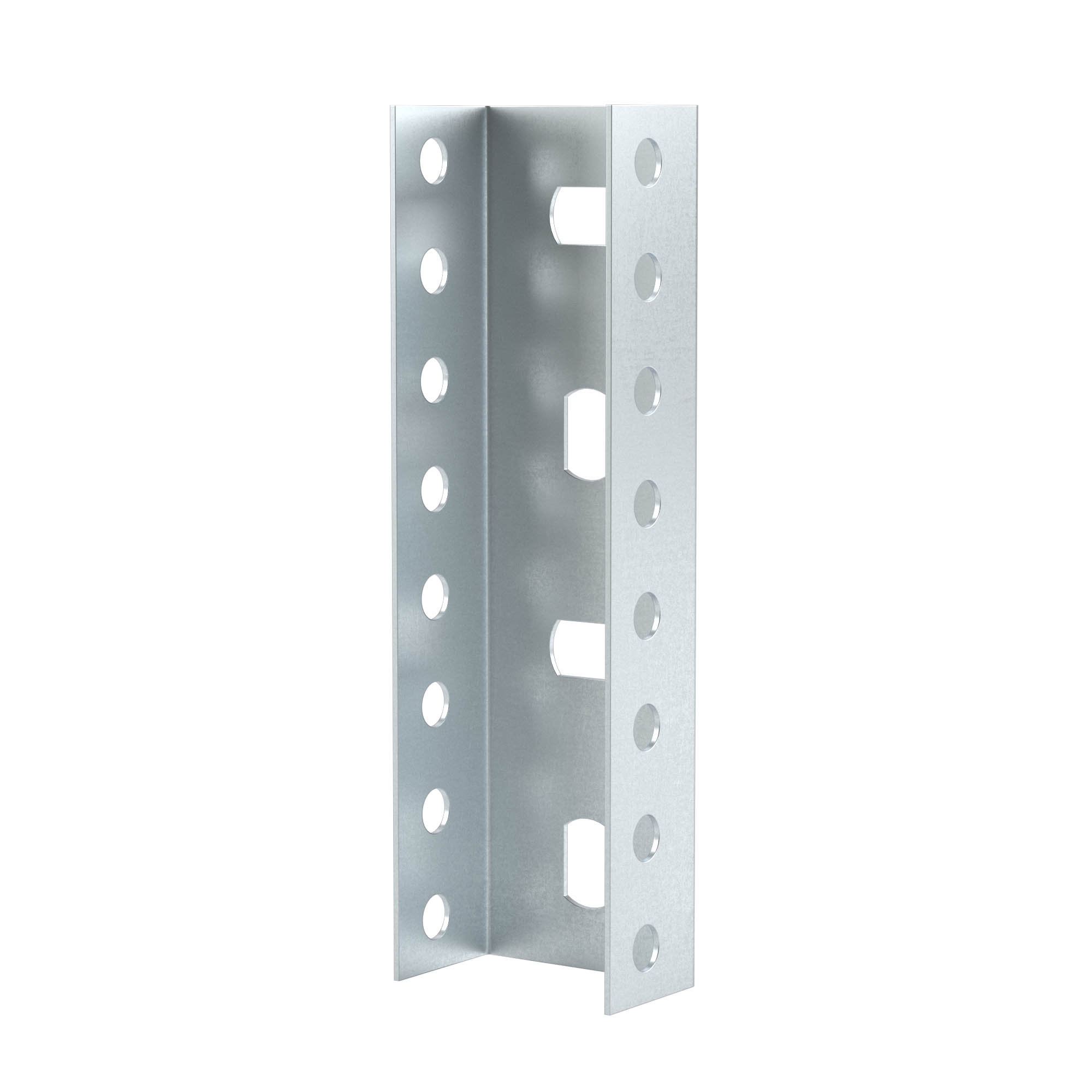

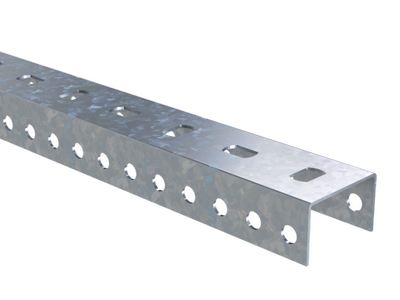

U-profile PSL, L400, thickness 1,5 mm

Code: BPL2904

U-profile PSL, L400, thickness 1,5 mm

Code: BPL2904
Model Singular profile
Height, mm 29
Surface protection Continuously galvanized
Material thickness, mm 1.5
With toothing Yes
Length, mm 400
Material Steel
Type of perforation 3 sides punched
Profile shape U-profile
Slit width, mm 17
Hole width, mm 10.5
Snap-off Yes
Suitable for circuit integrity Yes
Colour Light grey
Material Pre-galvanized steel
Height, mm 29
Width, mm 47
Length, mm 400
Thickness of metal sheet, mm 1,5
Type Mounting rails
Accessories

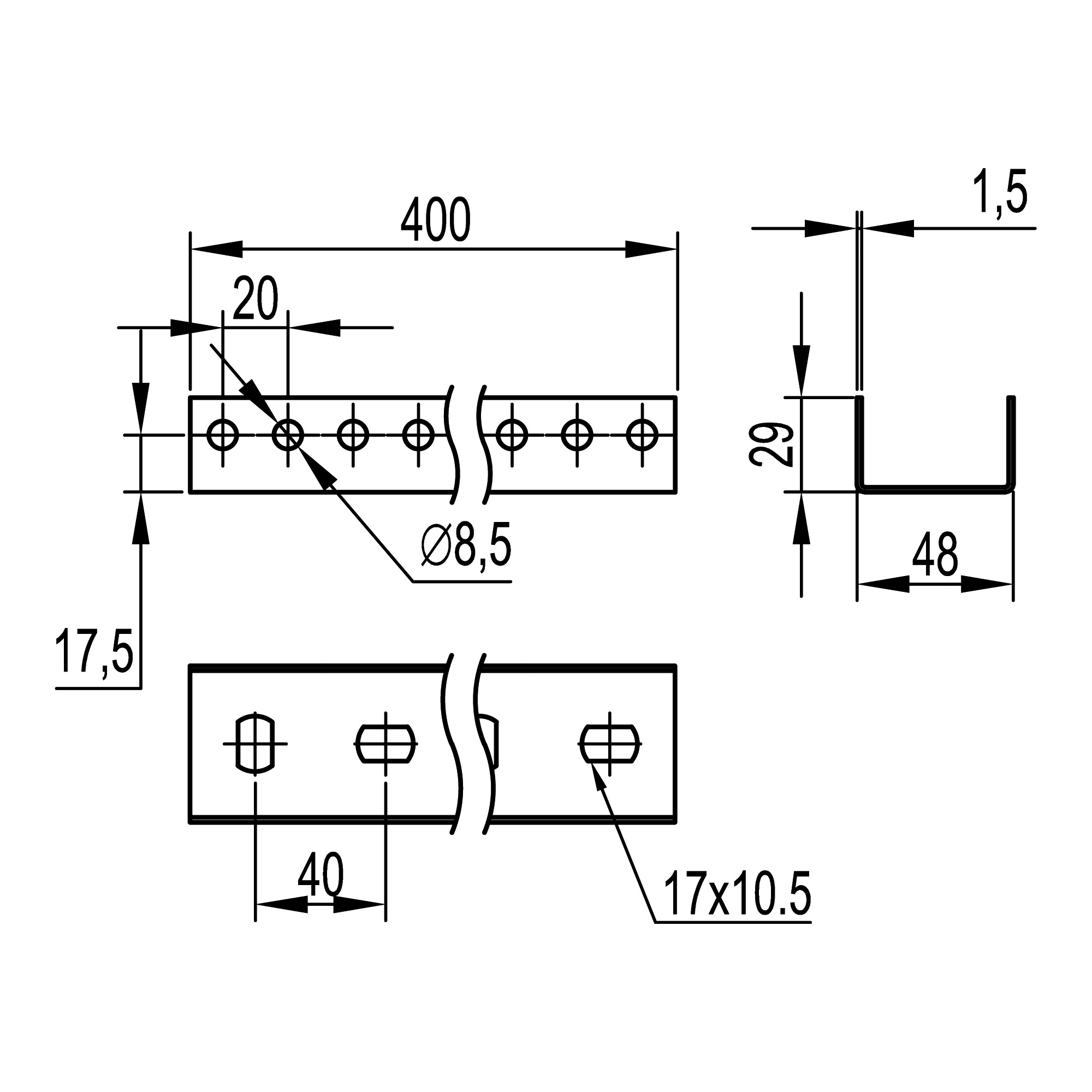

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
