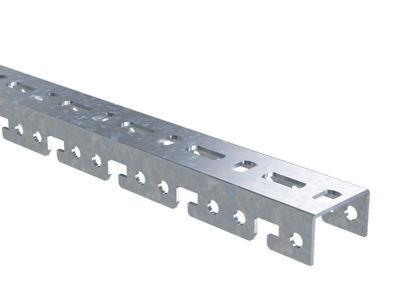

U-profile with quick hookup BBF, L400, thickness 2,5 mm
Code: BPF2904
U-profile with quick hookup BBF, L400, thickness 2,5 mm
Code: BPF2904
Model | Singular profile |
Height, mm | 29 |
Surface protection | Continuously galvanized |
Material thickness, mm | 2.5 |
With toothing | Yes |
Length, mm | 400 |
Material | Steel |
Type of perforation | 3 sides punched |
Slit width, mm | 27 |
Hole width, mm | 10.5 |
Snap-off | Yes |
Suitable for circuit integrity | Yes |
Colour | Light grey |
Material | Pre-galvanized steel |
Height, mm | 29 |
Width, mm | 50 |
Length, mm | 400 |
Thickness of metal sheet, mm | 2,5 |
Type | Mounting rails |
Accessories

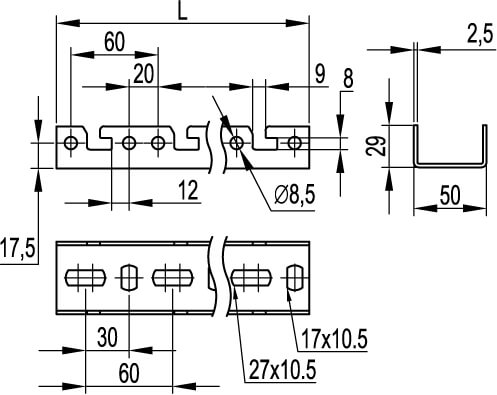

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
