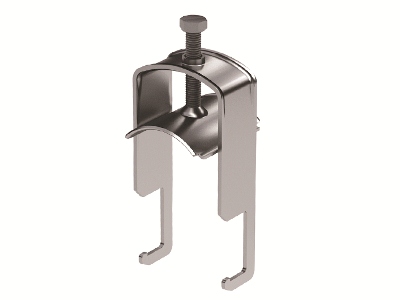

Cable cleat for tray/profile, d. 44-50

Code: BHL4450

Cable cleat for tray/profile, d. 44-50

Code: BHL4450
Mounting method C-profile
Halogen free Yes
Max. number of cables 1
Chucking range, mm 44...50
With plastic tray No
With metal tray No
Surface protection clamp Continuously galvanized
Surface protection screw Other
Material screw Other
Material clamp Steel
Material Pre-galvanized steel
Thickness of metal sheet, mm 2,5
Diameter (nominal), mm 44-50
Type Holders

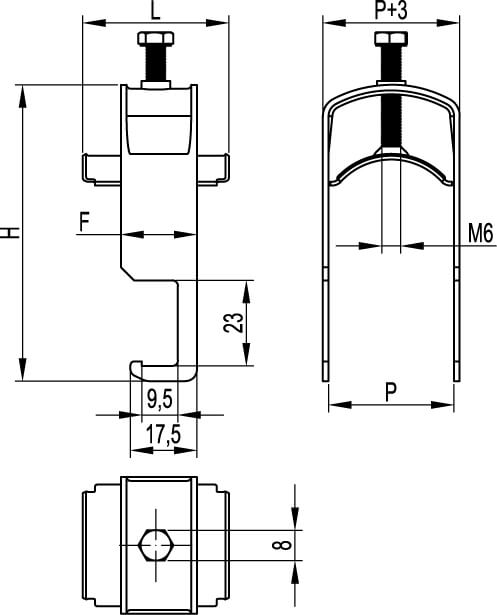

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
