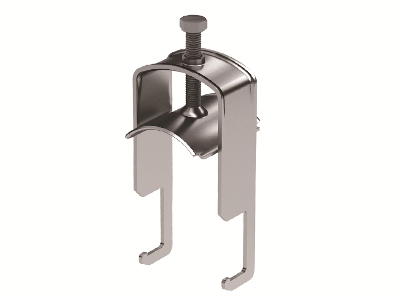

Cable cleat for tray/profile, d. 38-44

Code: BHL3844
Cable cleat for tray/profile, d. 38-44
Cable cleat for tray/profile, d. 38-44
Material PVC
Thickness of metal sheet, mm 1,5
Diameter (nominal), mm 38-44
Mounting method C-profile
Halogen free Yes
Max. number of cables 1
Chucking range, mm 38...44
With plastic tray No
With metal tray No
Surface clamp Continuously galvanized
Surface screw Other
Material screw Other
Material clamp Steel

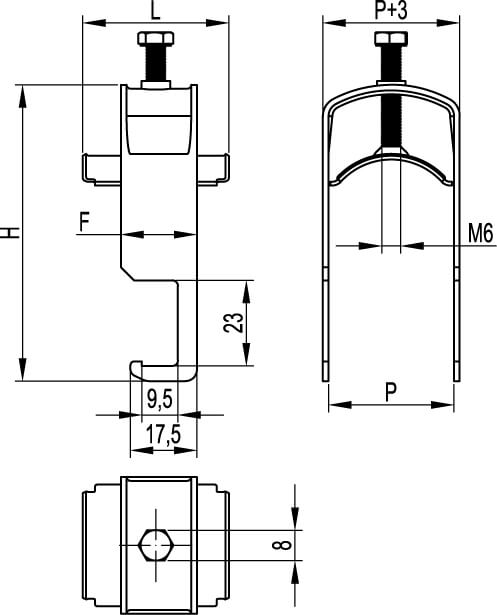

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
RAR
13.65 MB
ZIP
16.62 MB
ZIP
726.23 kB
RAR
313.39 kB
RAR
5.28 MB
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
ZIP
1.40 MB
