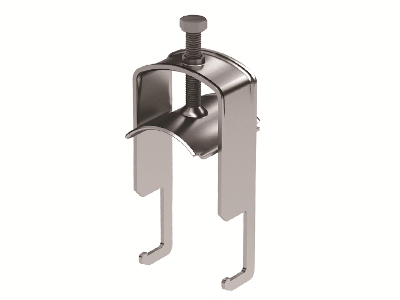

Cable cleat for tray/profile, d. 26-32
Code: BHL2632
Cable cleat for tray/profile, d. 26-32
Code: BHL2632
| Mounting method | C-profile |
| Halogen free | Yes |
| Max. number of cables | 1 |
| Chucking range, mm | 26...32 |
| With plastic tray | No |
| With metal tray | No |
| Surface protection clamp | Continuously galvanized |
| Surface protection screw | Other |
| Material screw | Other |
| Material clamp | Steel |
| Material | Pre-galvanized steel |
| Thickness of metal sheet, mm | 1,5 |
| Diameter (nominal), mm | 26-32 |
| Type | Holders |

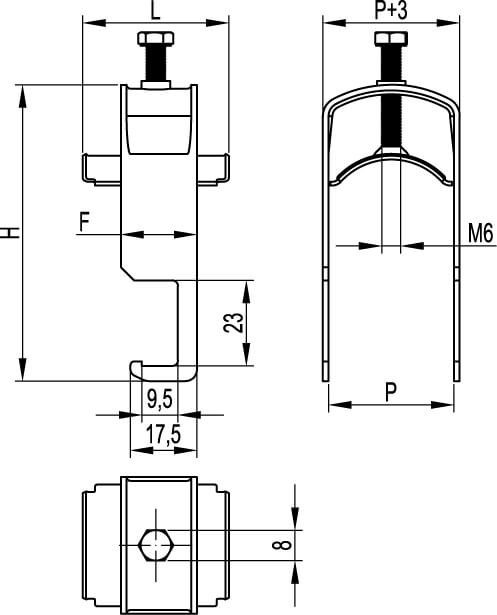

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
