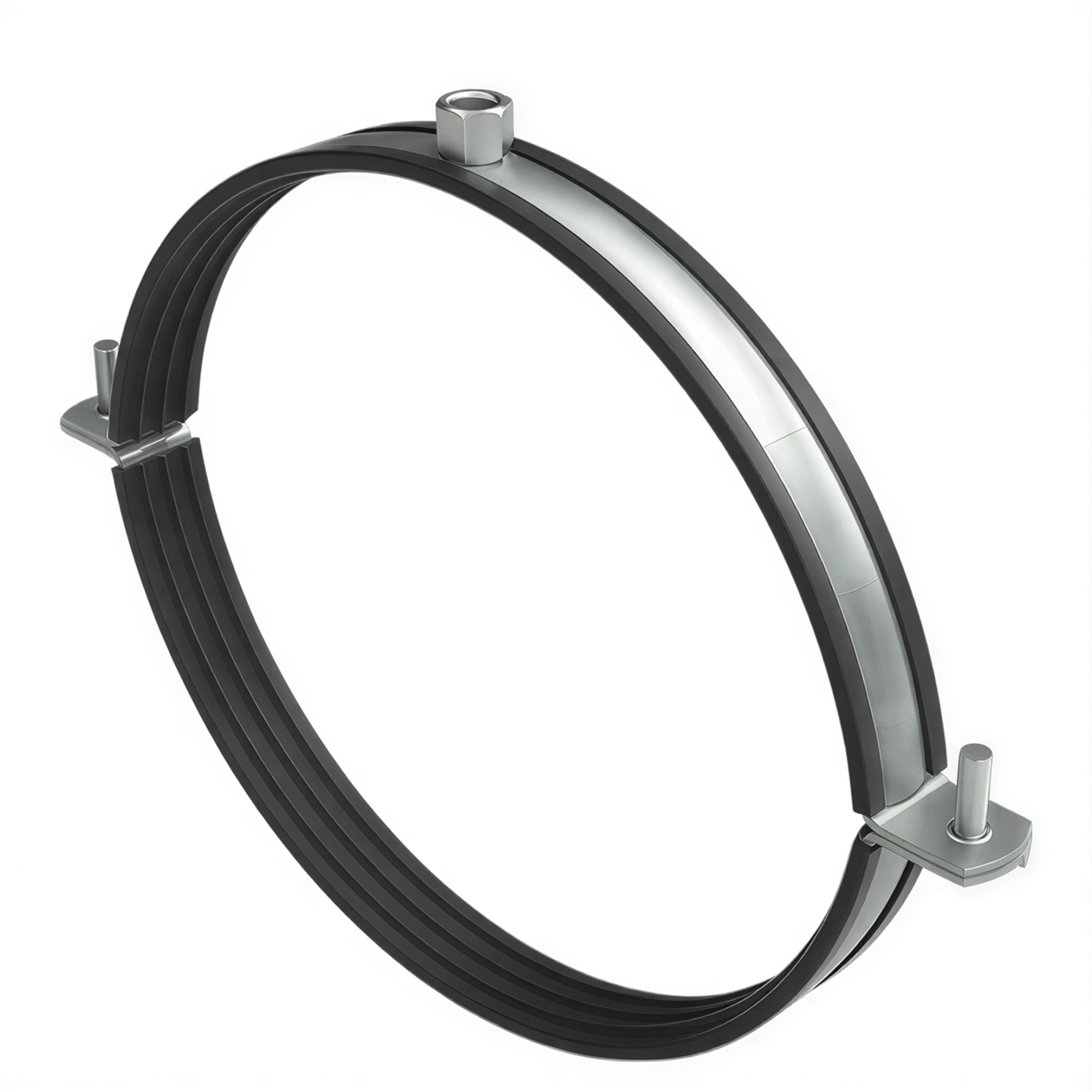

Air duct clamp with rubber with М8 nut for 280 mm tubes
Code: BHV21280
Air duct clamp with rubber with М8 nut for 280 mm tubes
Code: BHV21280
| Surface protection | Galvanic/electrolytic zinc plated |
| Material | Steel |
| Thread size (metric) | 8 |
| Outer pipe diameter, mm | 280 |
| Thread type | Metric |
| Material | Pre-galvanized steel |
| Connecting nut thread | М8 |
| Width | 20 mm |
| Pipe diameter | 280 mm |
| Thickness | 1,2 mm |
| Type | Clamp |

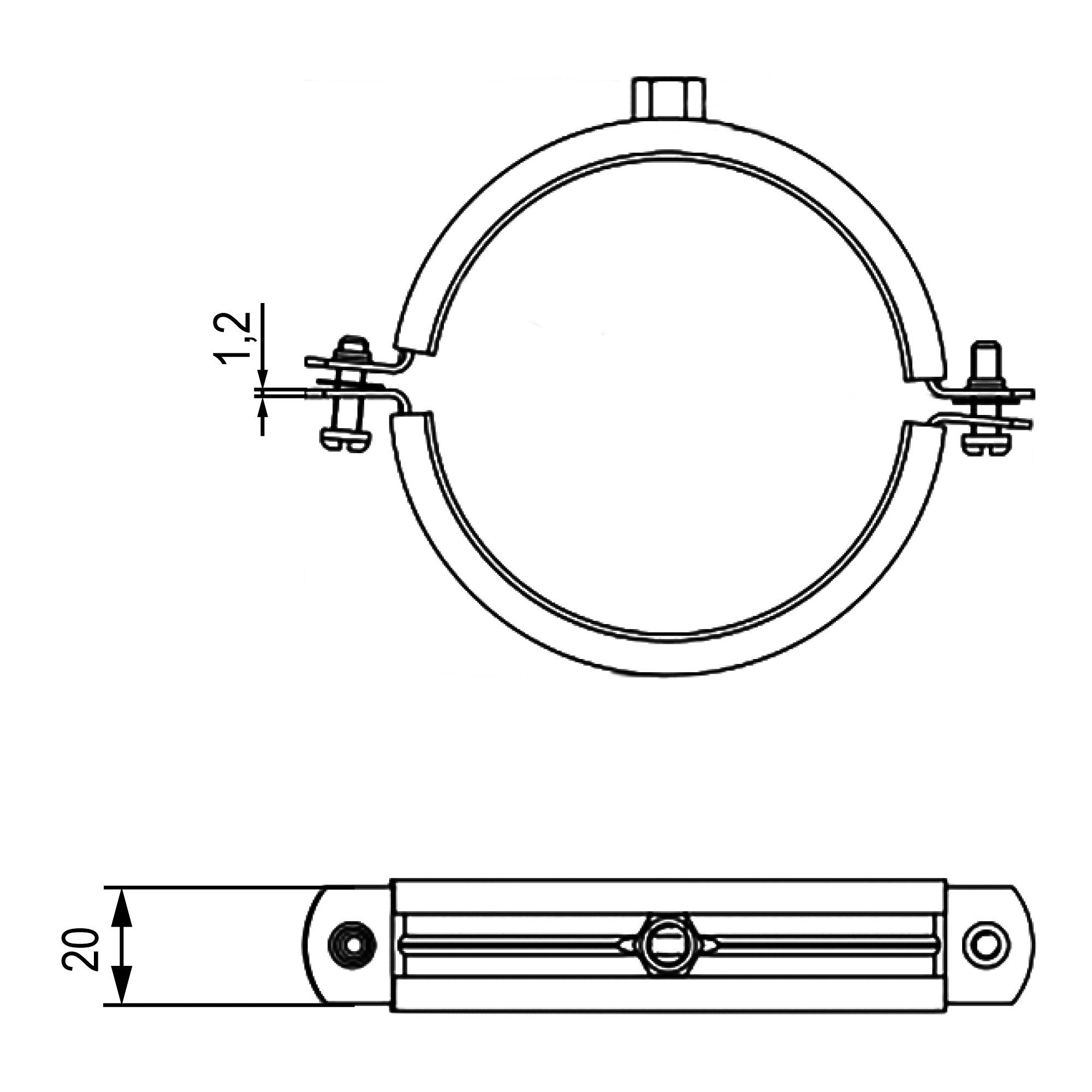

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
