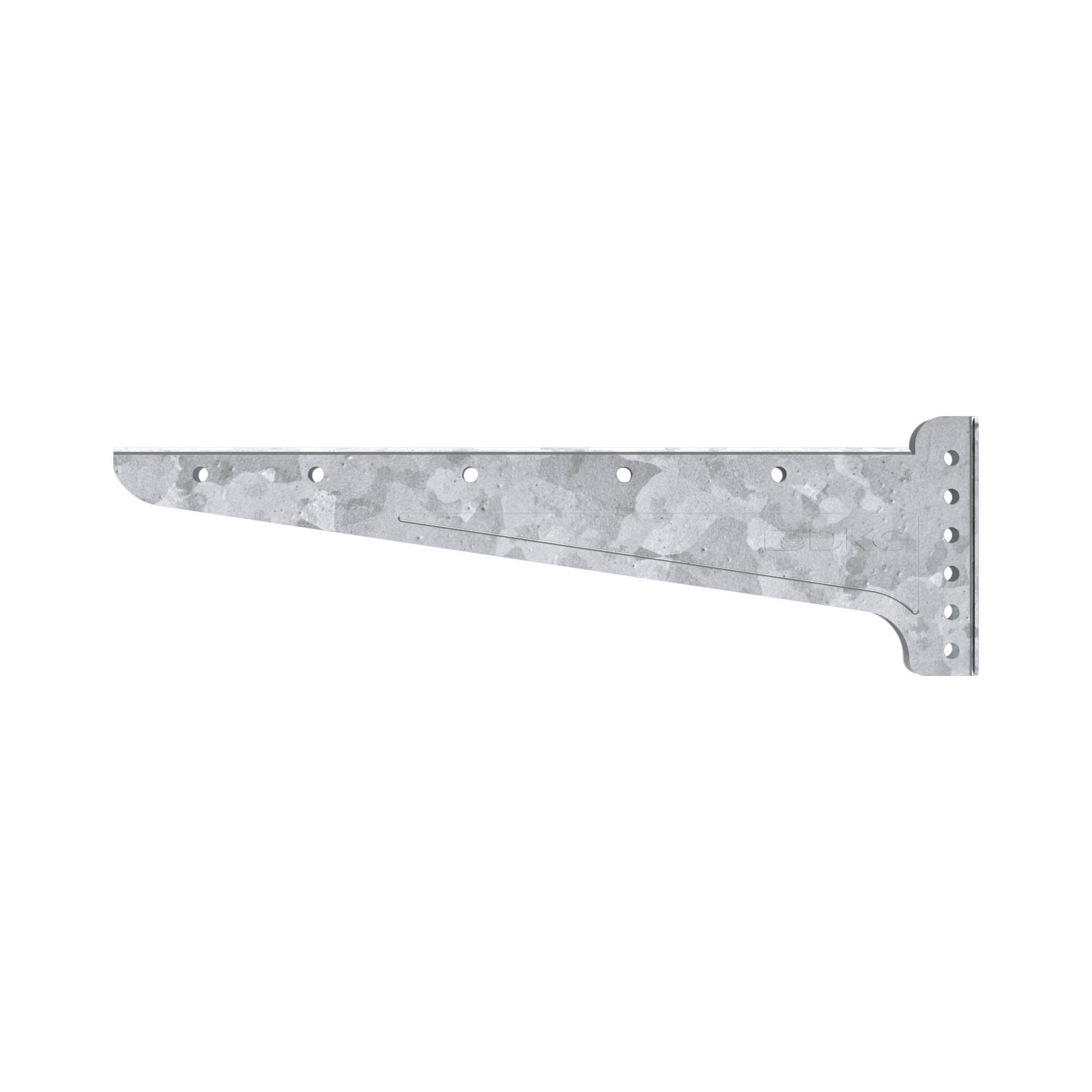

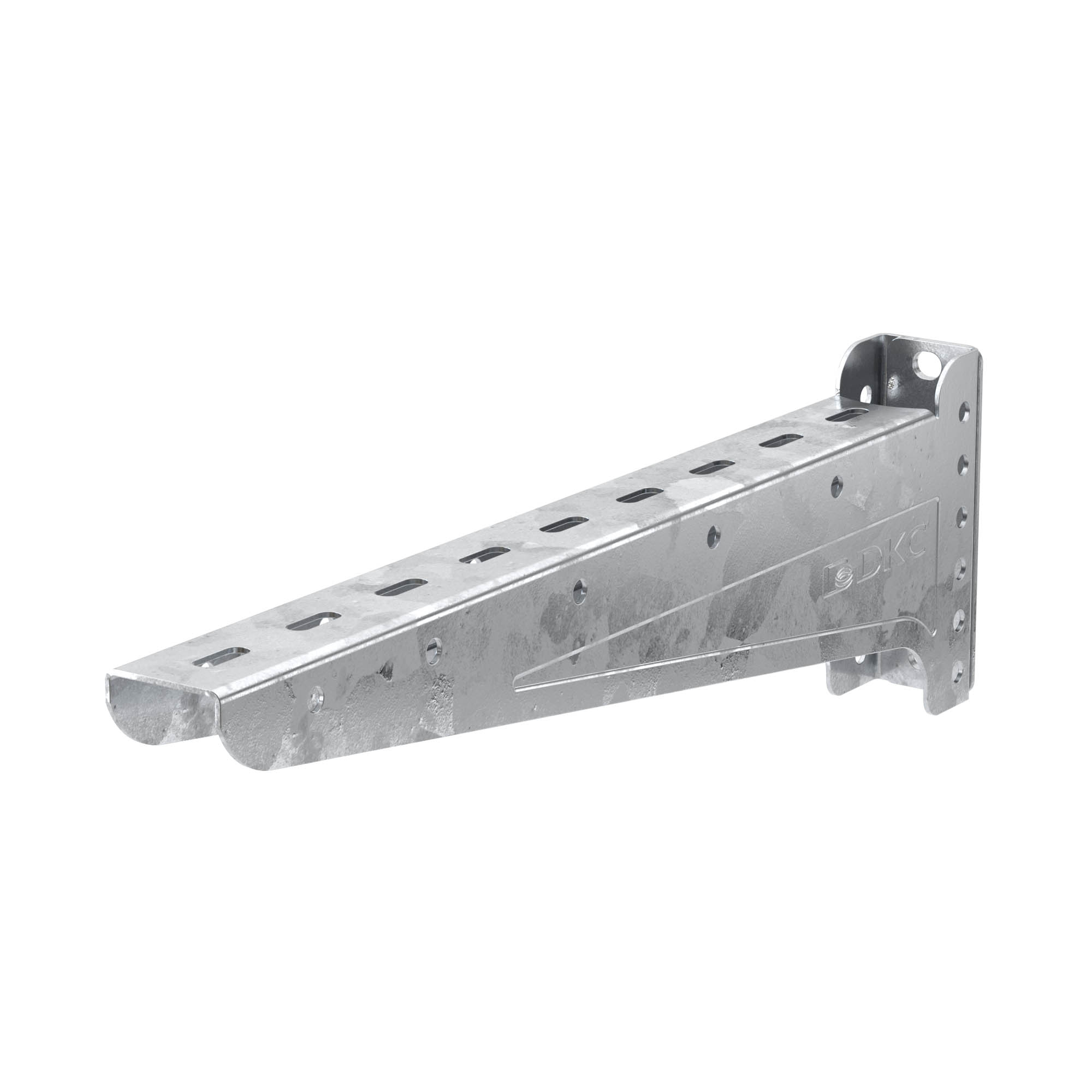

Universal reinforced bracket 200 mm

Code: BBN6020
Colour Light grey
Width, mm 44
Height, mm 90
RAL-number 7044
Surface protection Sendzimir galvanized
Material quality Other
Length, mm 234
Material Steel
Load bearing capacity, kN 2,80
Angle, ° 90
Suitable for cable management system width, mm 200
Model Wall- and profile console

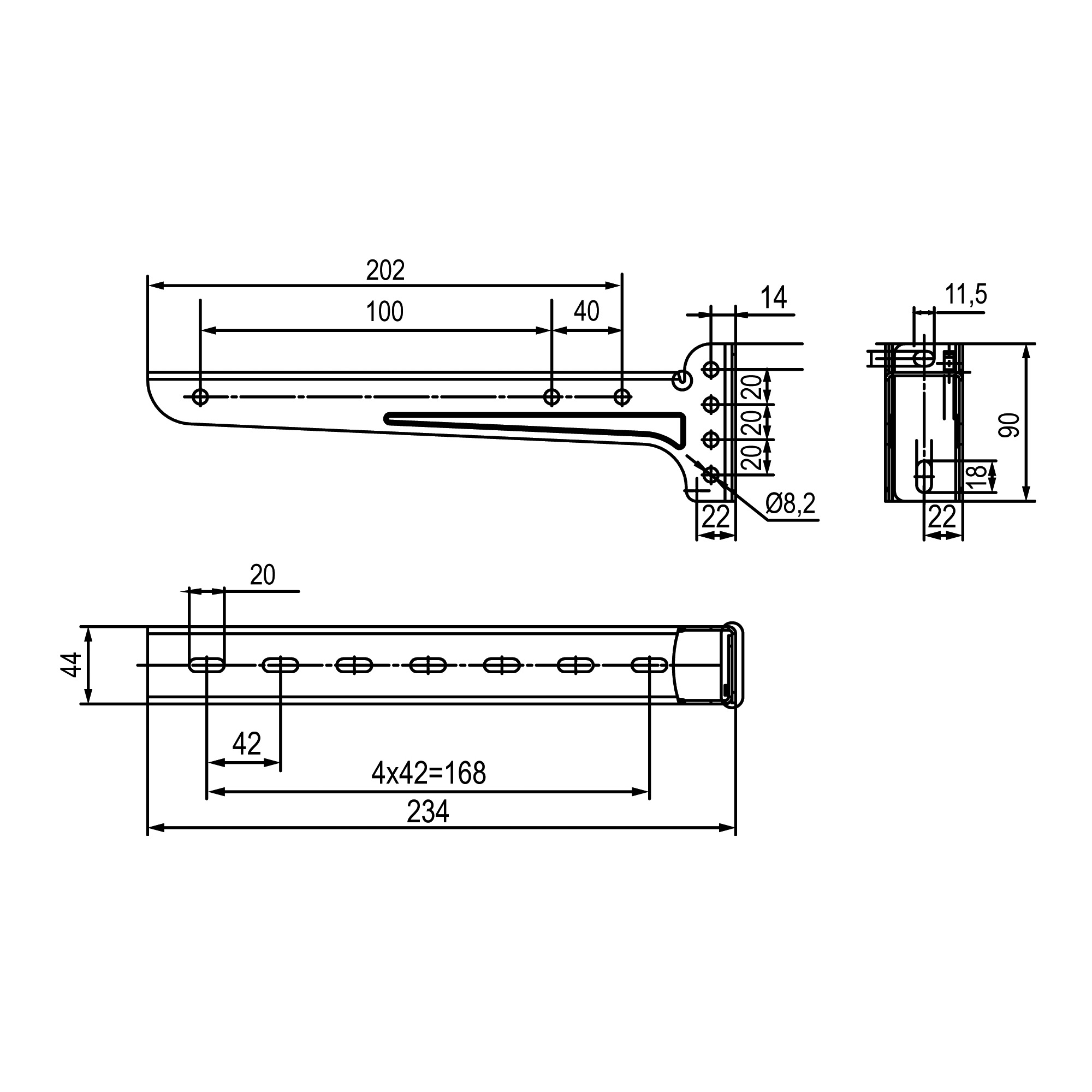

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
Certificates
Name Document
