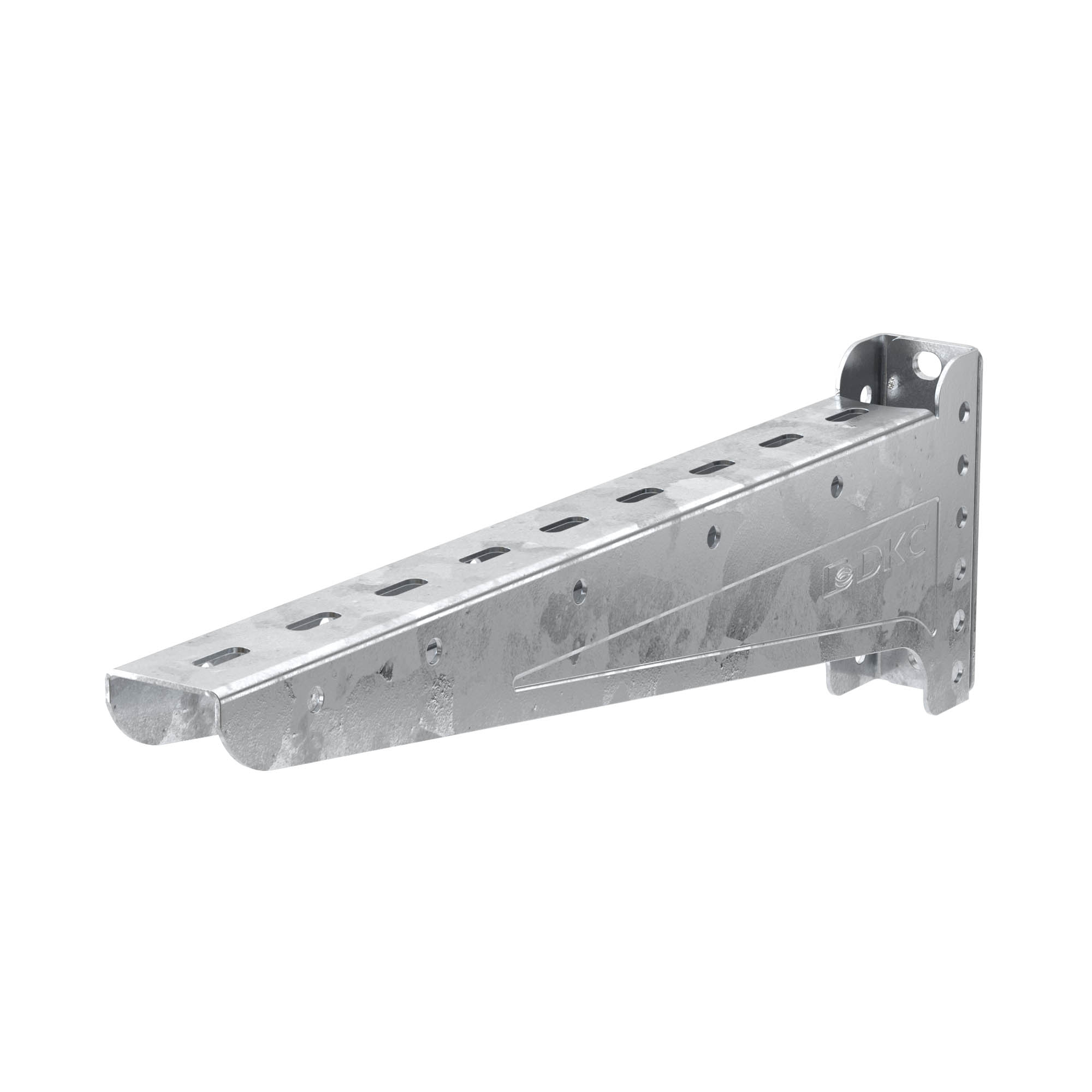

Universal bracket 150 mm

Code: BBN5015

To ask a question

ETIM

Colour	Light grey
Width, mm	44
Height, mm	90
RAL-number	7044
Surface protection	Sendzimir galvanized
Material quality	Other

Length, mm	184
Material	Steel
Load bearing capacity, kN	2,70
Angle, °	90
Suitable for cable management system width, mm	150
Model	Wall- and profile console

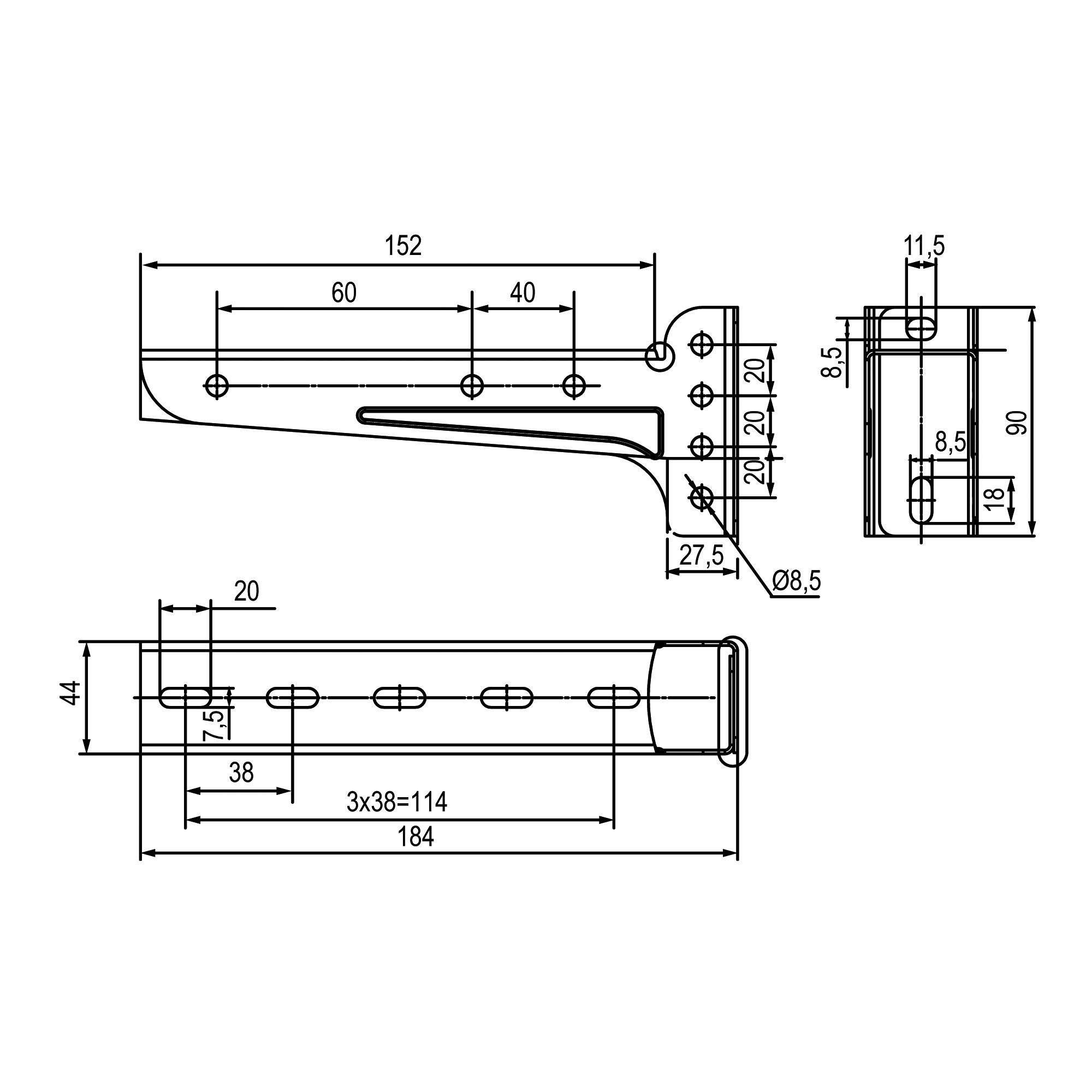

Drawings
