Universal light bracket 150 mm

Code: BBN4015

Universal light bracket 150 mm

Code: BBN4015
Colour Light grey
Width, mm 44
Height, mm 90
RAL-number 7044
Surface protection Sendzimir galvanized
Length, mm 184
Material Steel
Load bearing capacity, kN 1.82
Model Wall- and profile console
Height, mm 90
Width, mm 44
Length, mm 184
Type Brackets
Material Pre-galvanized steel
Accessories
Analogs
The accompanying goods

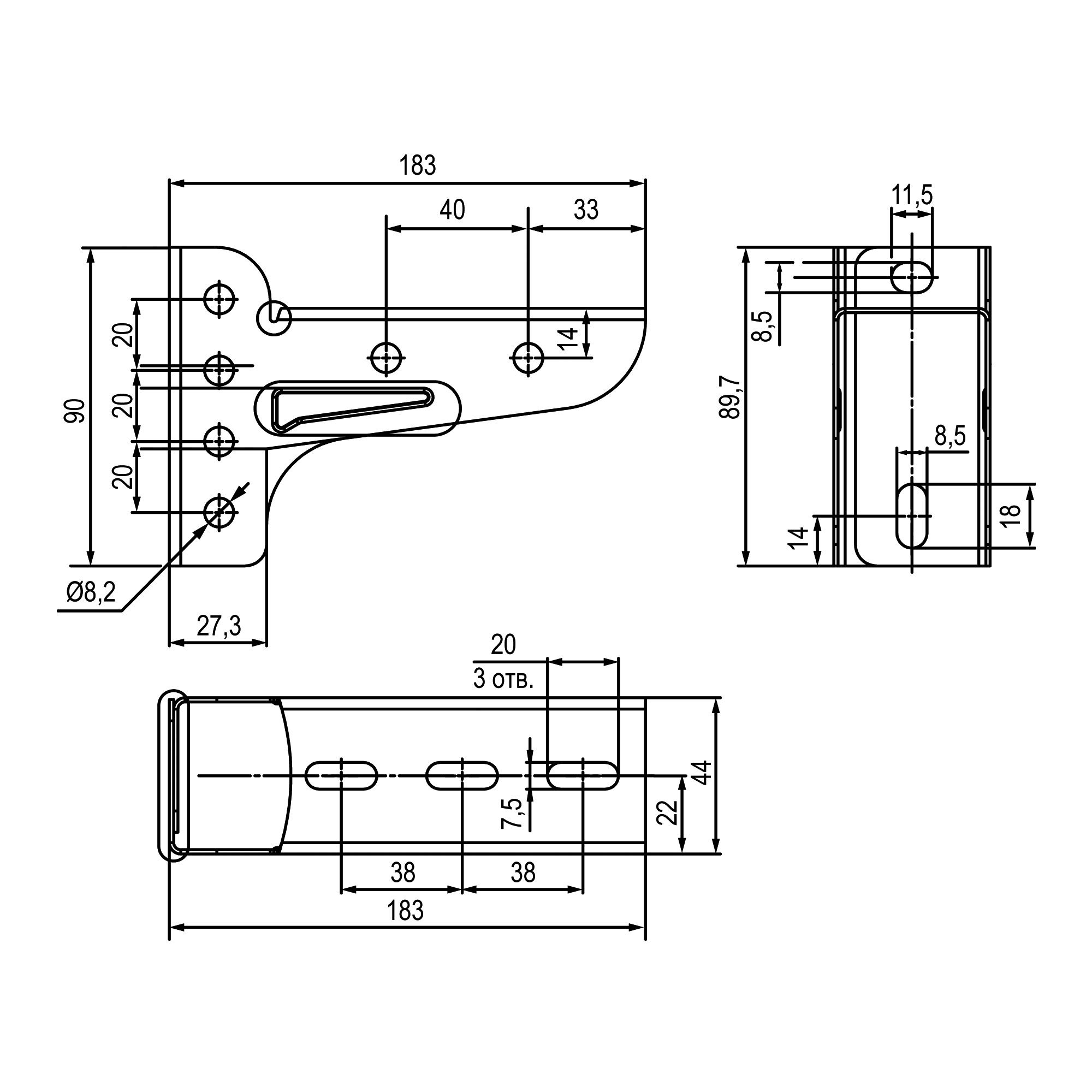

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
