Colour Light grey
Width, mm 41
Model Pendant bar
Height, mm 475
Surface protection Galvanic/electrolytic zinc plated
Adjustable Yes
Hinging No
Material quality Other
Length, mm 41
Material Steel
Suitable for circuit integrity No
Type Raised floor stand
Height 475 mm
Weight 3,34 kg

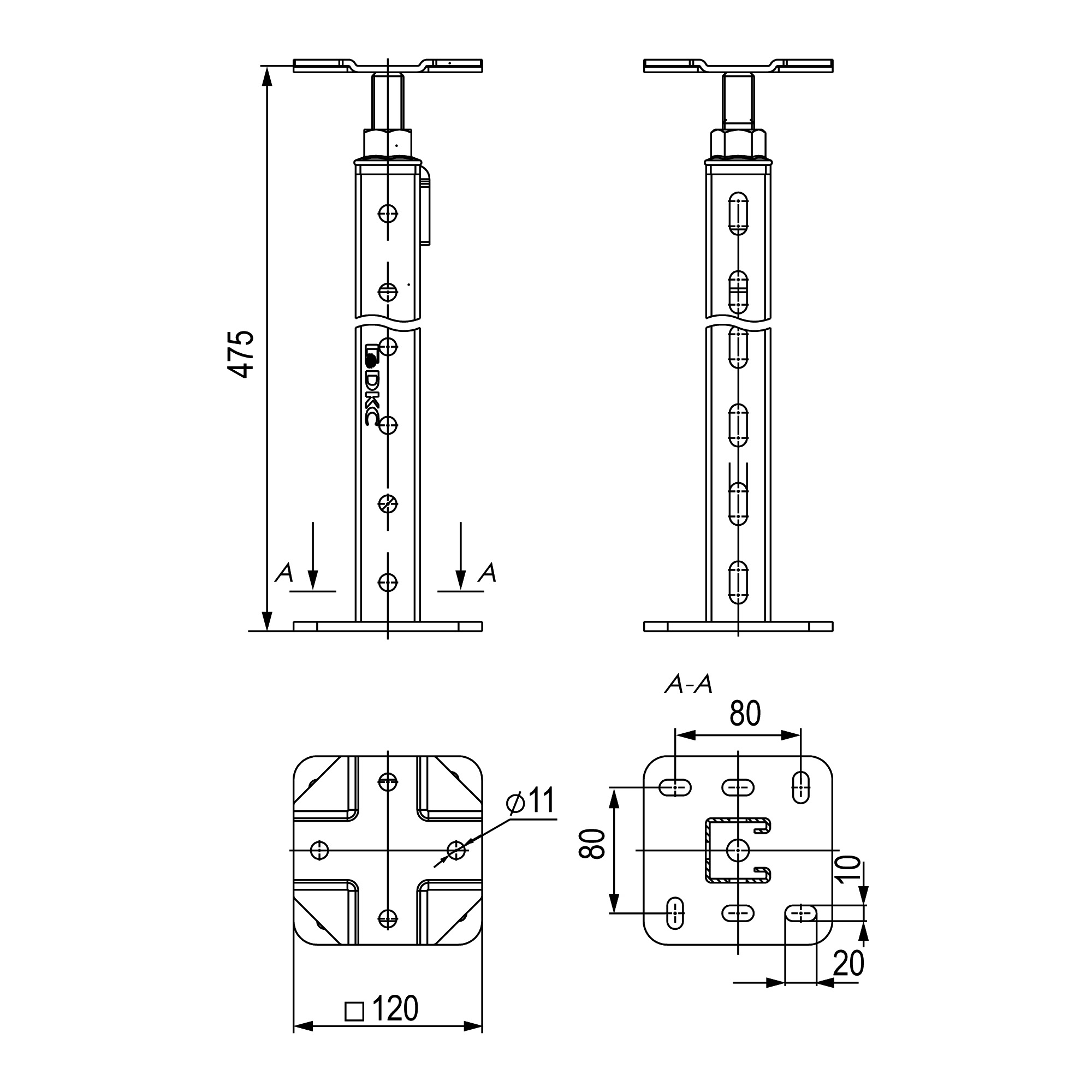

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
