| Colour | Light grey |
| Width, mm | 41 |
| Model | Pendant bar |
| Height, mm | 275 |
| Surface protection | Galvanic/electrolytic zinc plated |
| Adjustable | Yes |
| Hinging | No |
| Material quality | Other |
| Length, mm | 41 |
| Material | Steel |
| Suitable for circuit integrity | No |
| Type | Raised floor stand |
| Height | 275 mm |
| Weight | 2,93 kg |

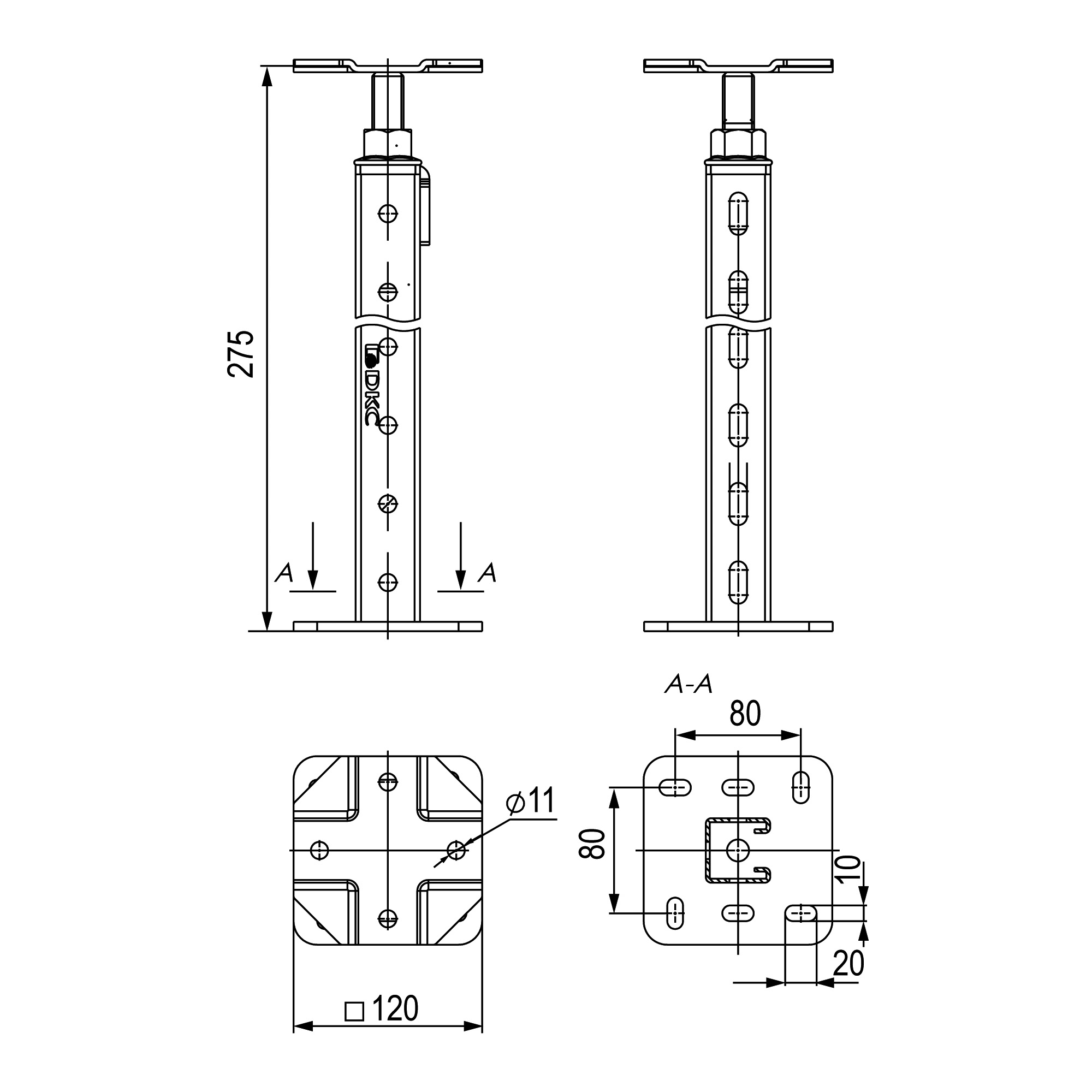

Drawings
| Seria | Name | SAT | STEP | AVEVA | DWG (dynamic blocks) | Intergraph |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
||||||
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
