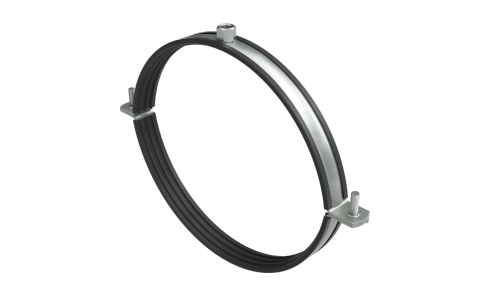

Air duct clamp with rubber for 560 mm tubes

Code: BHV21560

Air duct clamp with rubber for 560 mm tubes

Code: BHV21560
Surface protection Galvanic/electrolytic zinc plated
Material Steel
Thread size (metric) 8
Outer pipe diameter, mm 560
Thread type Metric
Material Pre-galvanized steel
Connecting nut thread Without nut
Width 25 mm
Pipe diameter 560 mm
Thickness 1,5 mm
Type Clamp

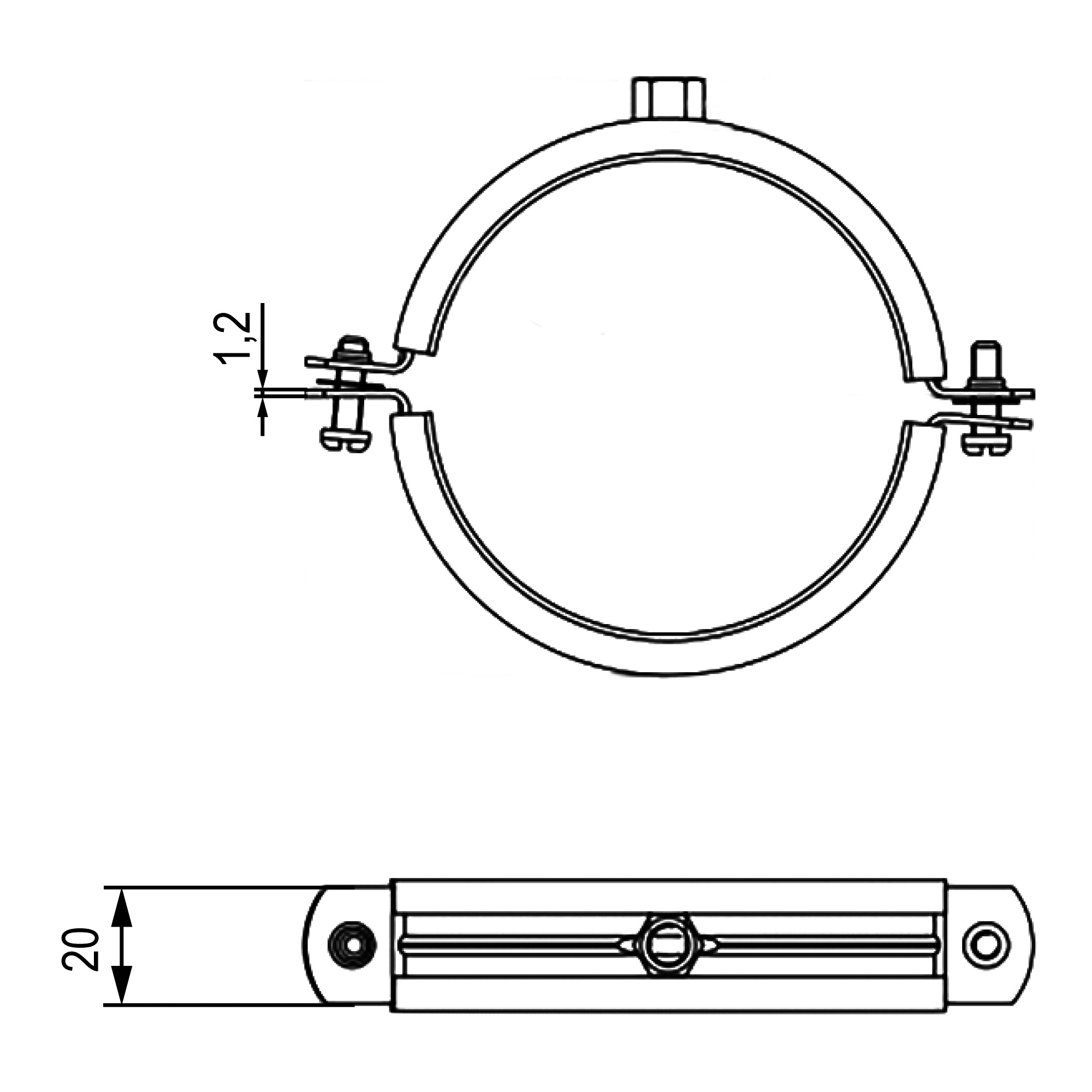

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
