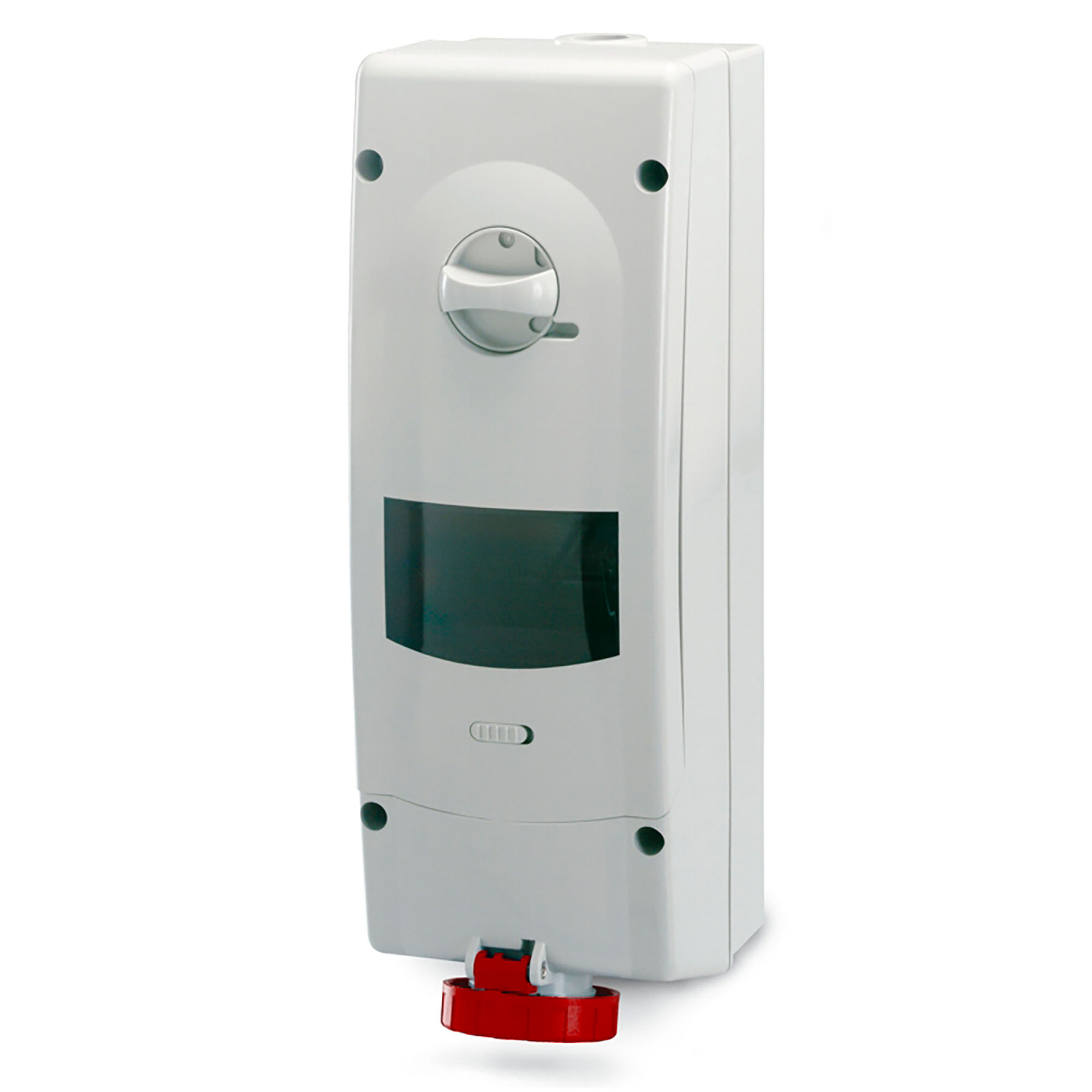

Interlocked socket ADV2 3P+N 63A 6h IP67 RCD&MCB
Code:
DIS5686387RMW
Interlocked socket ADV2 3P+N 63A 6h IP67 RCD&MCB
Code:
DIS5686387RMW
Switch | Mechanical locking |
Number of poles | 5 |
Material housing | Plastic |
IEC-amperage, A | 63 |
Amperage according to UL/CSA (for UL-version), A | 63 |
Type of switch | Auxiliary contacts |
Empty locations on mounting rail | Yes |
With earth leakage switch | Yes |
Degree of protection (IP) | IP67 |
Clock hour position, h | 6 |
Identification colour | Red |
Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
Protection | Mixed |
Product type | Surface mounting interlocked socket with DIN-rail |
Voltage | 400V |
The accompanying goods

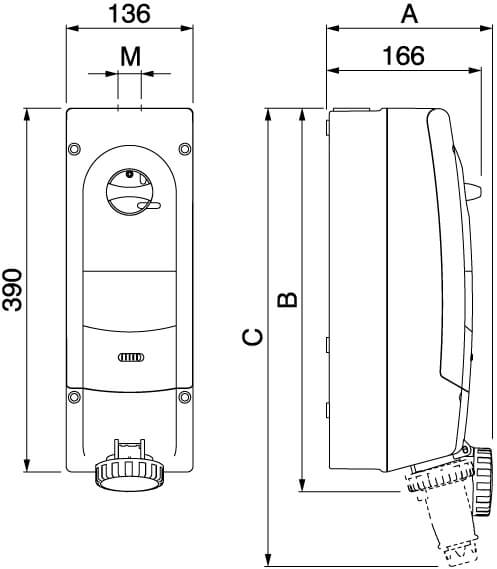

Drawings
Seria | Name | DWG | Eplan |
---|---|---|---|
