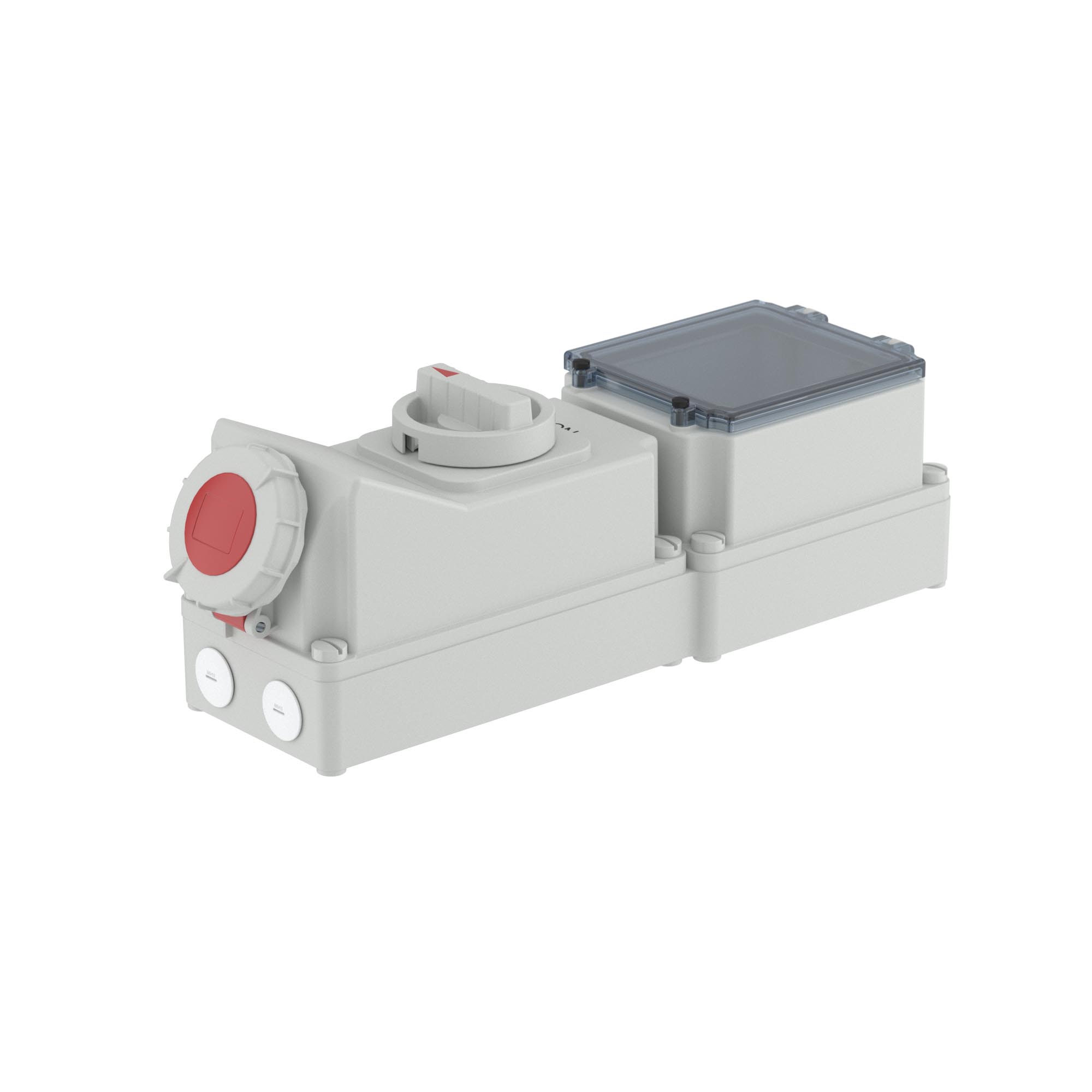

Interlocked socket with DIN-rail. Surface mounting. WSD IP67 63А 3P+E+N 400V
Code:
DIS5686387
Interlocked socket with DIN-rail. Surface mounting. WSD IP67 63А 3P+E+N 400V
Code:
DIS5686387
Model | Surface mounted (plaster) |
Number of poles | 5 |
Material | Plastic |
IEC-amperage, A | 63 |
Degree of protection (IP) | IP67 |
Identification colour | Red |
Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
Connection system | Screwed terminal |
Cable entry | Swivel |
Clock hour position, h | 6 |
Color | gray |
Material of case | Ployamide |
Height, mm | 439 |
Width, mm | 136 |
Temperature of mounting, °C | -50...+40 |
Ingress Protection rating, IP | IP67 |
Temperature of operation, °C | -50 - +40 |
Temperature of operation, °C | 60 |
Shock resistance, J | 2 |
Depth, mm | 211 |
Product type | Surface mounting interlocked socket with DIN-rail |
Voltage | 400V |
Q'ty of poles | 3P+E+N |
Degree of protection | IP67 |
Current | 63 A |
The accompanying goods

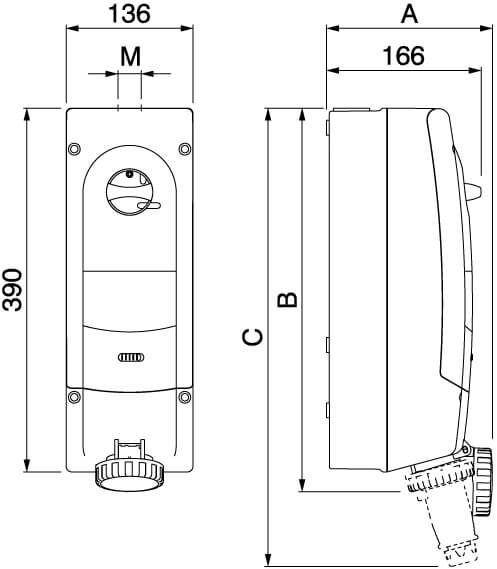

Drawings
