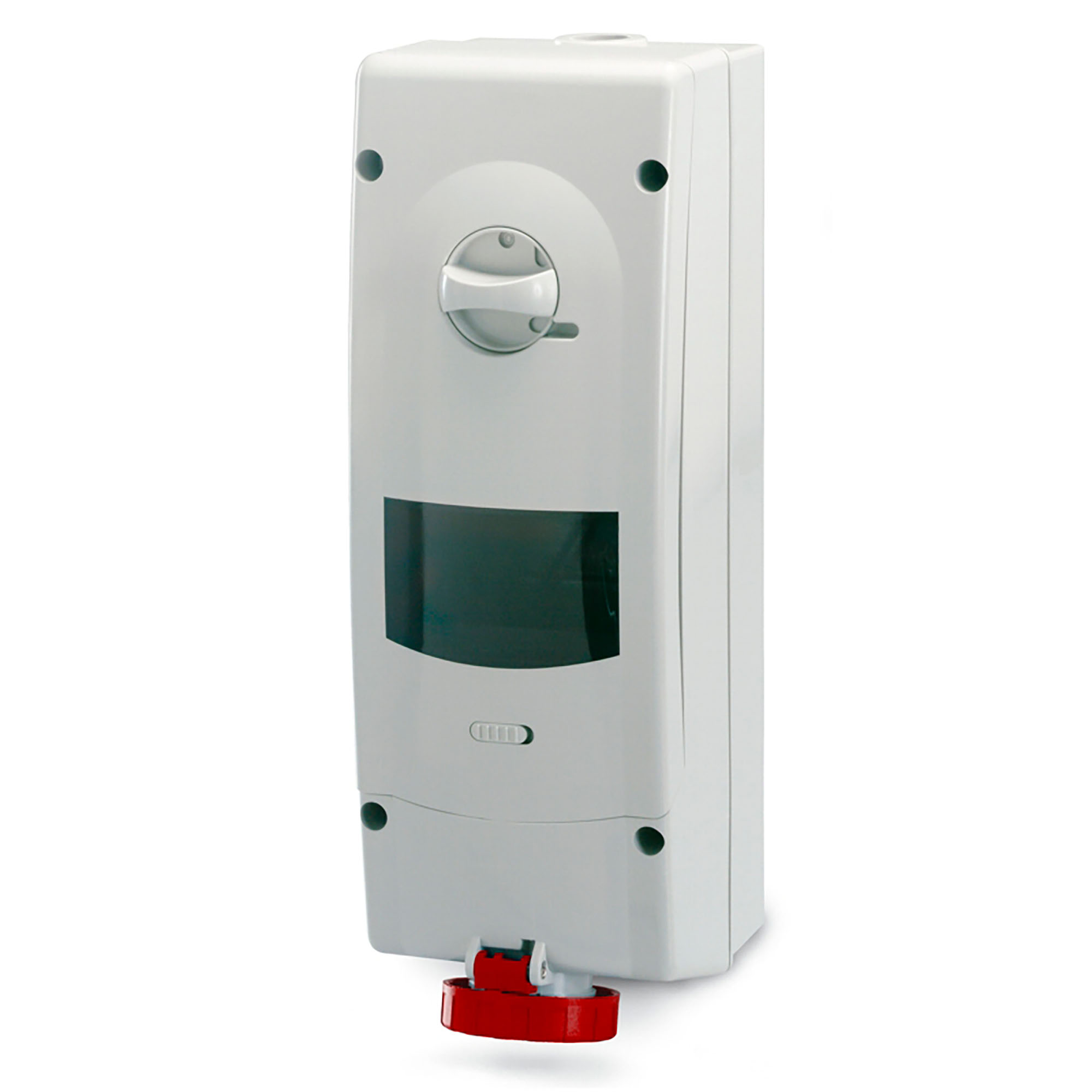

Interlocked socket ADV2 3P+T 63A 6h IP67 RCD&NCB

Code: DIS5686386RMW
Interlocked socket ADV2  3P+T 63A 6h IP67     RCD&NCB
  • To ask a question
Switch Mechanical locking
Number of poles 4
Material housing Plastic
IEC-amperage, A 63
Amperage according to UL/CSA (for UL-version), A 63
Empty locations on mounting rail Yes
With earth leakage switch Yes
Degree of protection (IP) IP67
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Protection Mixed
Product type Surface mounting interlocked socket with DIN-rail
Voltage 400V

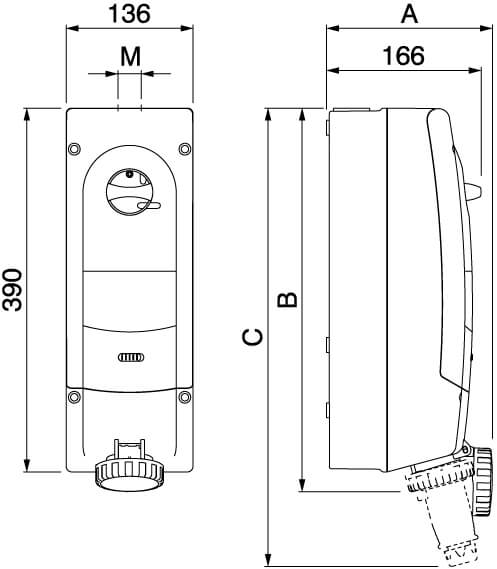

Drawings
