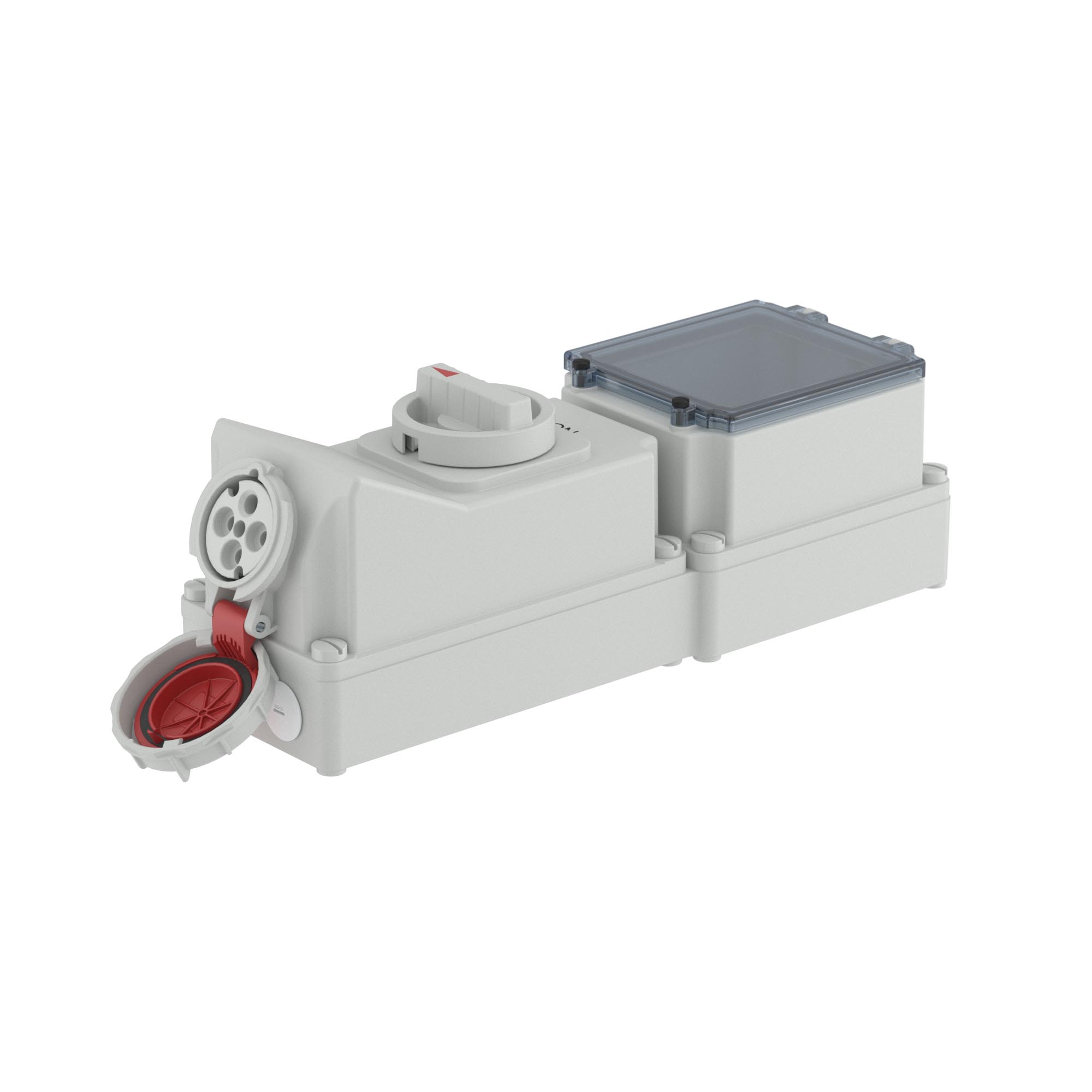

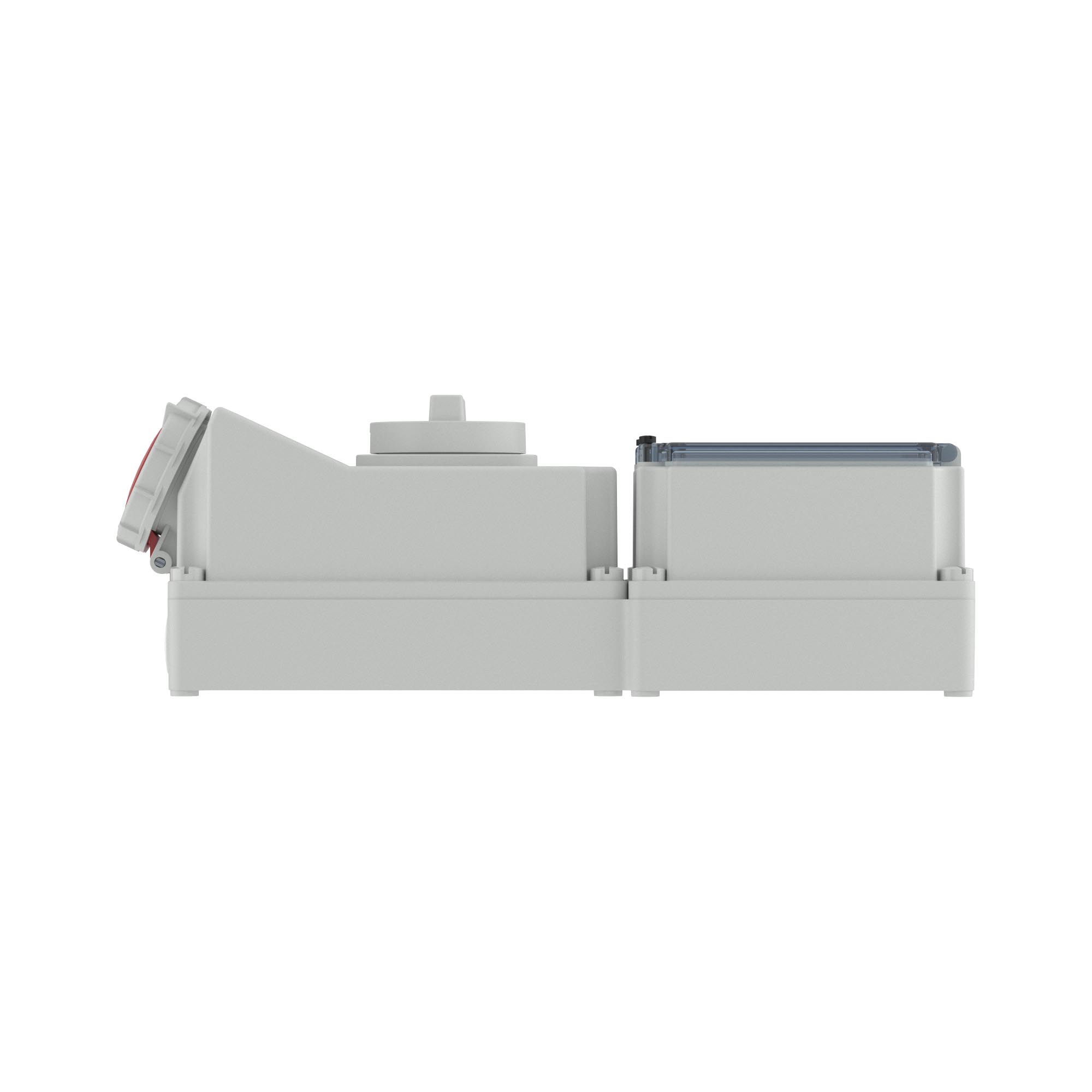

Interlocked socket with DIN-rail. Surface mounting. WSD IP67 63А 3P+E 400V
Code:
DIS5686386
Interlocked socket with DIN-rail. Surface mounting. WSD IP67 63А 3P+E 400V
Code:
DIS5686386
| Model | Surface mounted (plaster) |
| Number of poles | 4 |
| Material | Plastic |
| IEC-amperage, A | 63 |
| Degree of protection (IP) | IP67 |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Clock hour position, h | 6 |
| Height | 430 mm |
| Depth | 198 mm |
| GWFI | +960 °С |
| Q'ty of holes | 3 |
| Q'ty of poles | 3P+E |
| Temperature of operation | +40 °С |
| Material of case | Ployamide |
| Voltage | 400V |
| Clock position | 6h |
| Degree of protection | IP67 |
| -5°С ... +60°С | -25 °С...+40 °С |
| Temperature of dinamic operation | -25 °С...+40 °С |
| Temperature of static operation | -40 °С...+40 °С |
| Product type | Surface mounting interlocked socket with DIN-rail |
| Current | 63 A |
| Color | Red |
| Width | 135 mm |
The accompanying goods

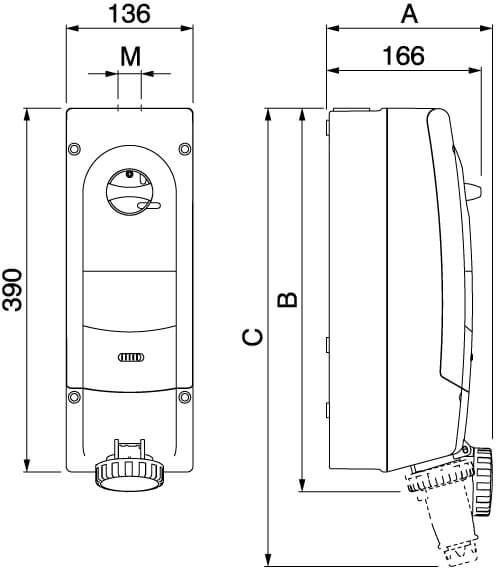

Drawings
