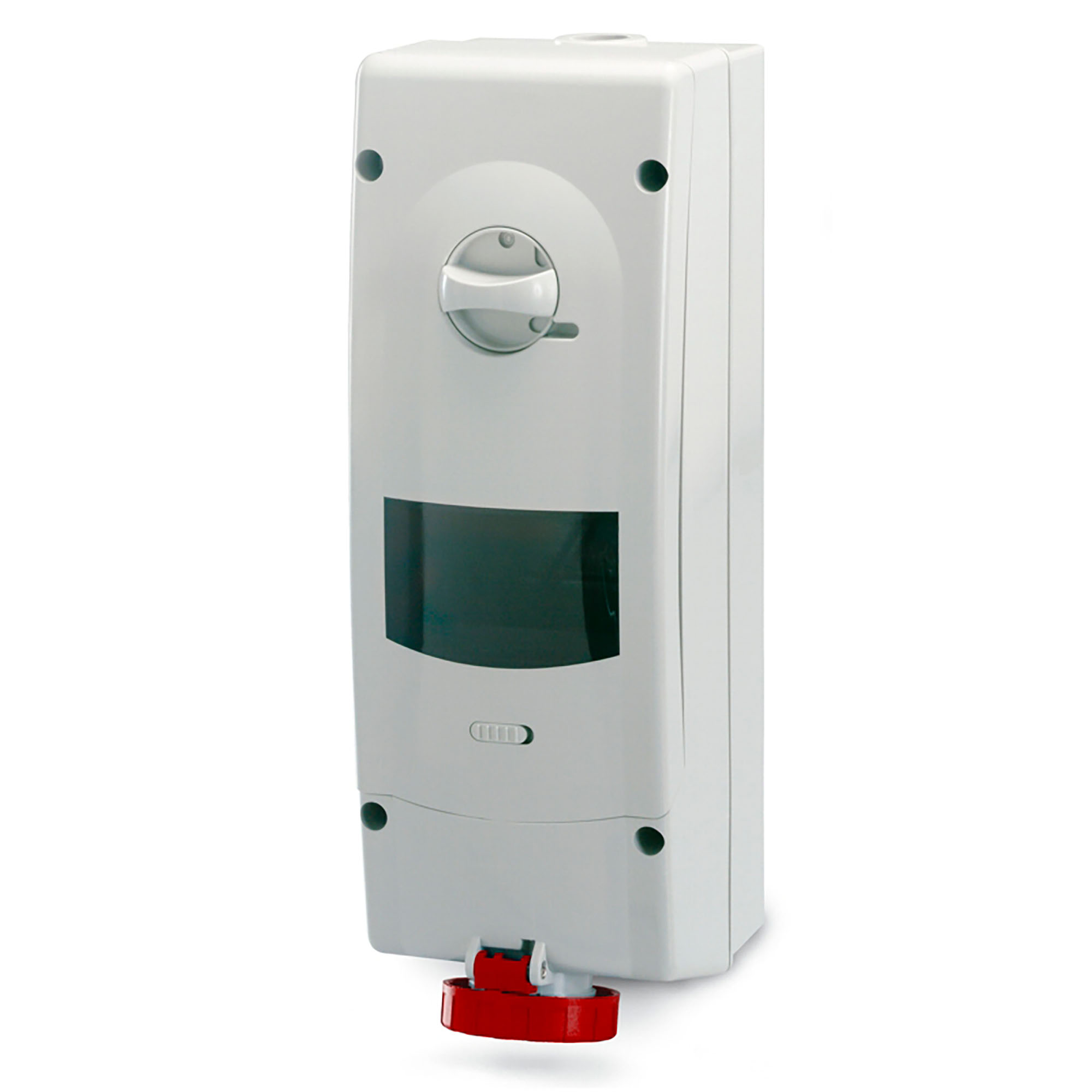

Switched socket outlets with interlock and DIN-rail IP67 32A 3P+E 400V

Code: DIS5683286

Switched socket outlets with interlock and DIN-rail IP67 32A 3P+E 400V

Code: DIS5683286
Model Surface mounted (plaster)
Number of poles 4
Material Plastic
Type of fastening External mounting
IEC-amperage, A 32
Degree of protection (IP) IP67
Military model No
Identification colour Blue
Voltage according to EN 60309-2 Other
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Angled
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 390
Flange size horizontal 136
Width of device 136
Height of device 420
Depth of device 176
Color gray
Material of case Ployamide
Height, mm 420
Width, mm 136
Temperature of mounting, °C -50...+40
Ingress Protection rating, IP IP67
Temperature of operation, °C -50 - +40
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 205
Product type Surface mounting interlocked socket with DIN-rail
Voltage 400V
Drawings
