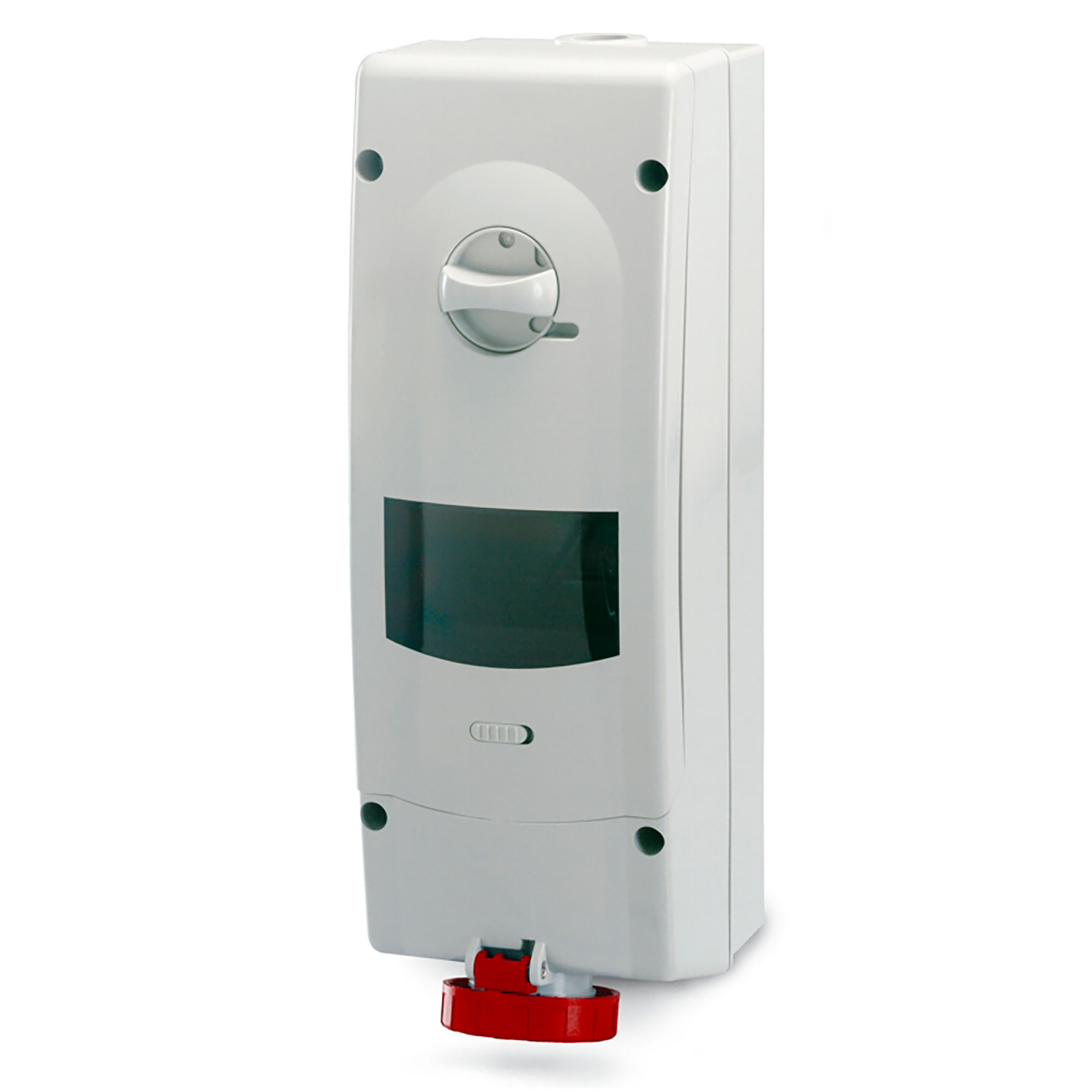

Interlocked socket with RCBO, 3P+N+E, 16А, IP67
Code: DIS5681687RW
Interlocked socket with RCBO, 3P+N+E, 16А, IP67
Code: DIS5681687RW
| Switch | Mechanical locking |
| Number of poles | 5 |
| Material housing | Plastic |
| IEC-amperage, A | 16 |
| Amperage according to UL/CSA (for UL-version), A | 16 |
| Empty locations on mounting rail | Yes |
| With earth leakage switch | Yes |
| Degree of protection (IP) | IP67 |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Protection | Mixed |
| Product type | Surface mounting interlocked socket with DIN-rail |
| Voltage | 400V |

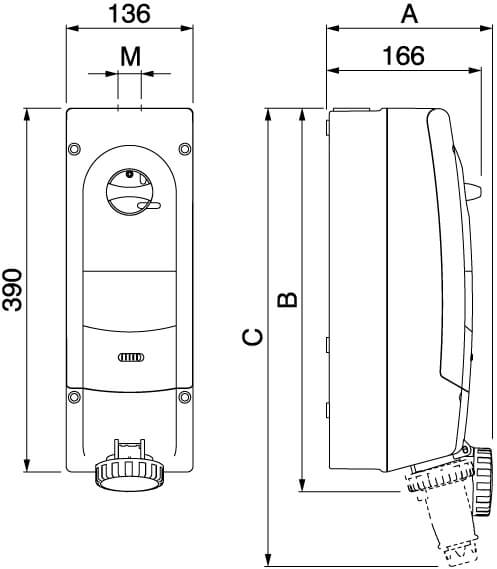

Drawings
| Seria | Name | DWG | Eplan |
|---|---|---|---|
|
