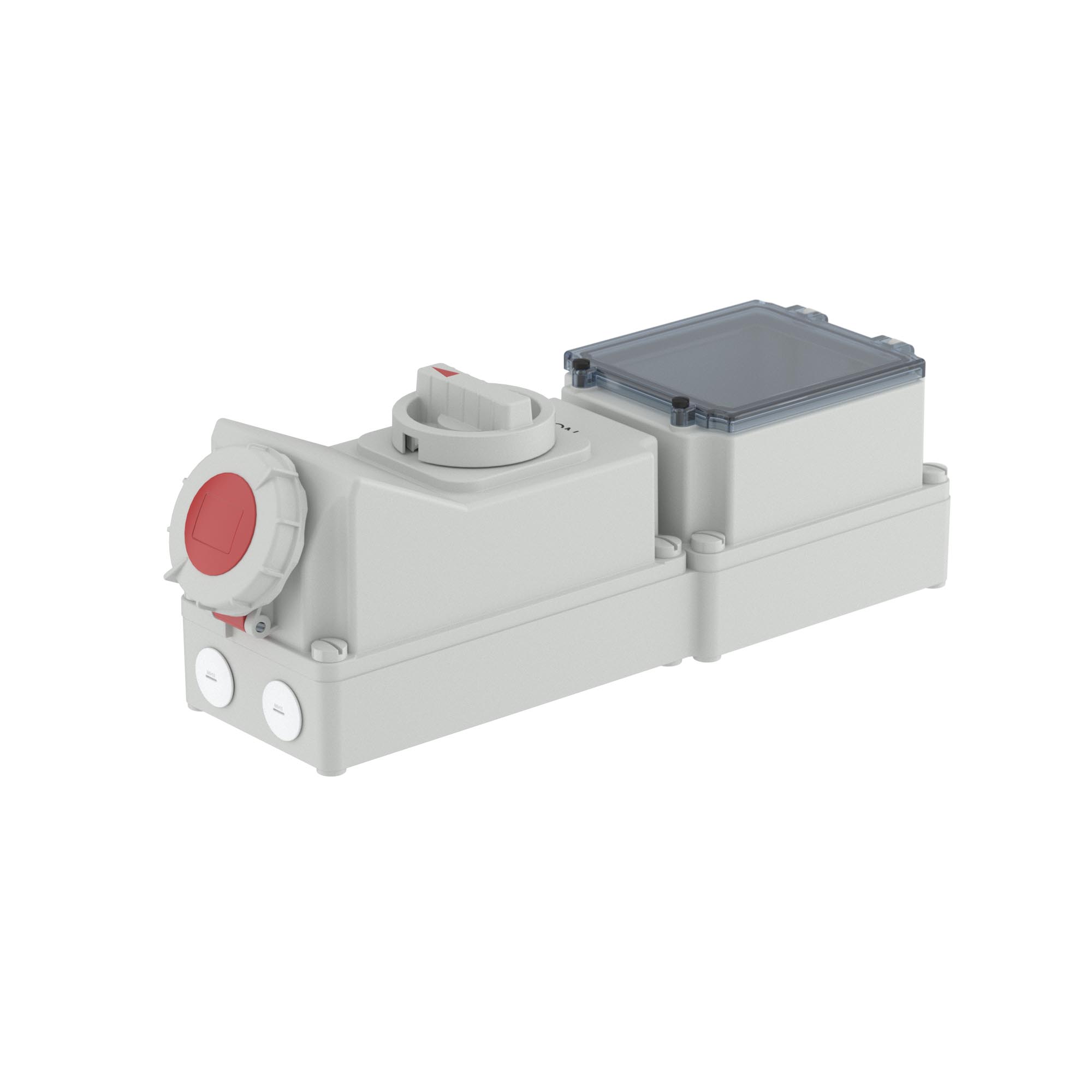

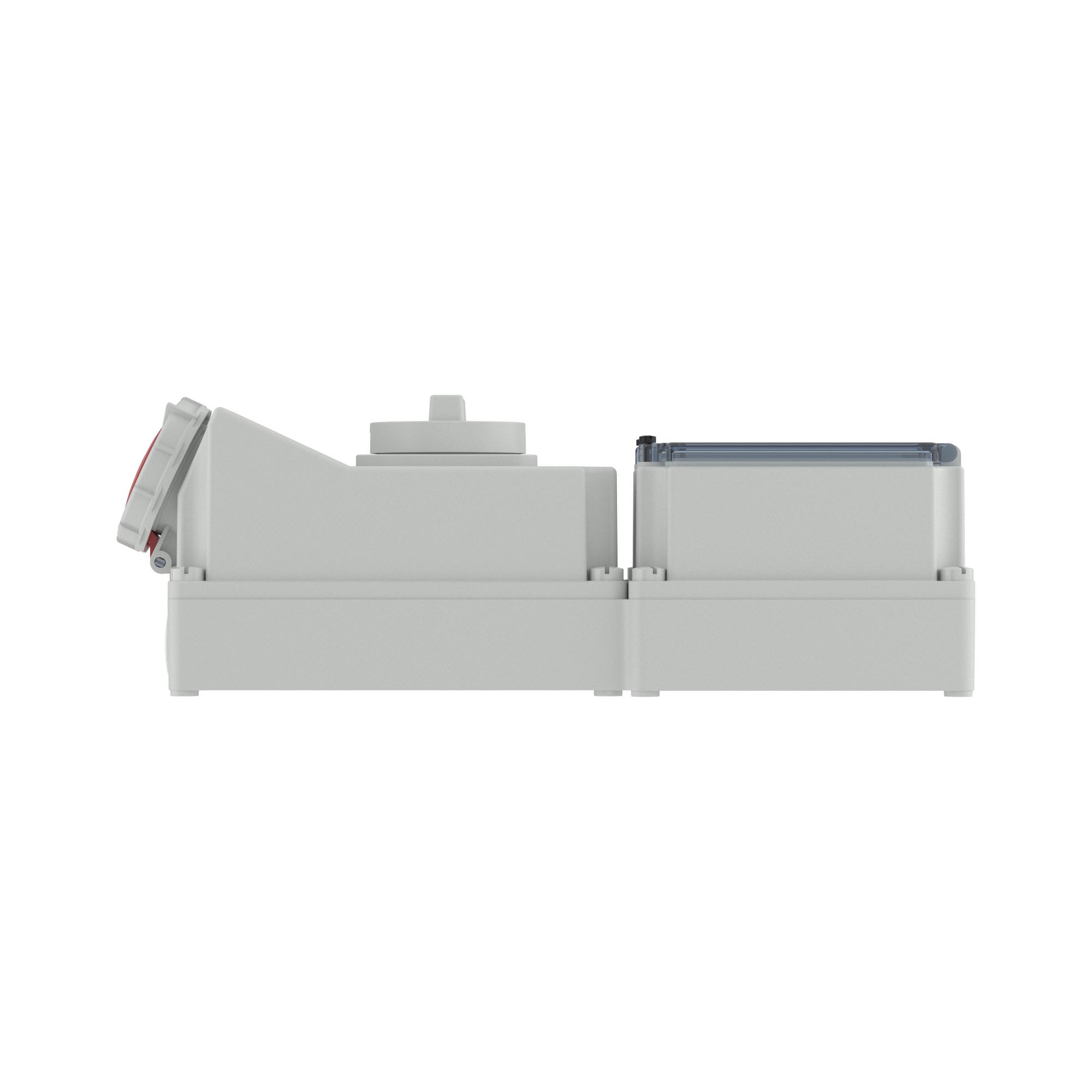

Interlocked socket with DIN-rail. Surface mounting. WSD IP67 16А 3P+E+N 400V

Code: DIS5681687

Interlocked socket with DIN-rail. Surface mounting. WSD IP67 16А 3P+E+N 400V

Code: DIS5681687
Model Surface mounted (plaster)
Number of poles 5
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP67
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Connection system Screwed terminal
Cable entry Swivel
Clock hour position, h 6
Height 396,2 mm
Depth 156 mm
GWFI +960 °С
Q'ty of holes 3
Q'ty of poles 3P+E+N
Temperature of operation +40 °С
Material of case Ployamide
Voltage 400V
Clock position 6h
Degree of protection IP67
-5°С ... +60°С -25 °С...+40 °С
Temperature of dinamic operation -25 °С...+40 °С
Temperature of static operation -40 °С...+40 °С
Product type Surface mounting interlocked socket with DIN-rail
Current 16A
Color Red
Width 135 mm
The accompanying goods

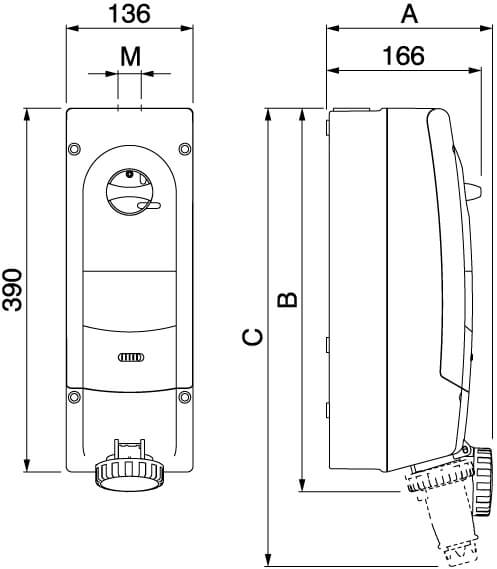

Drawings
