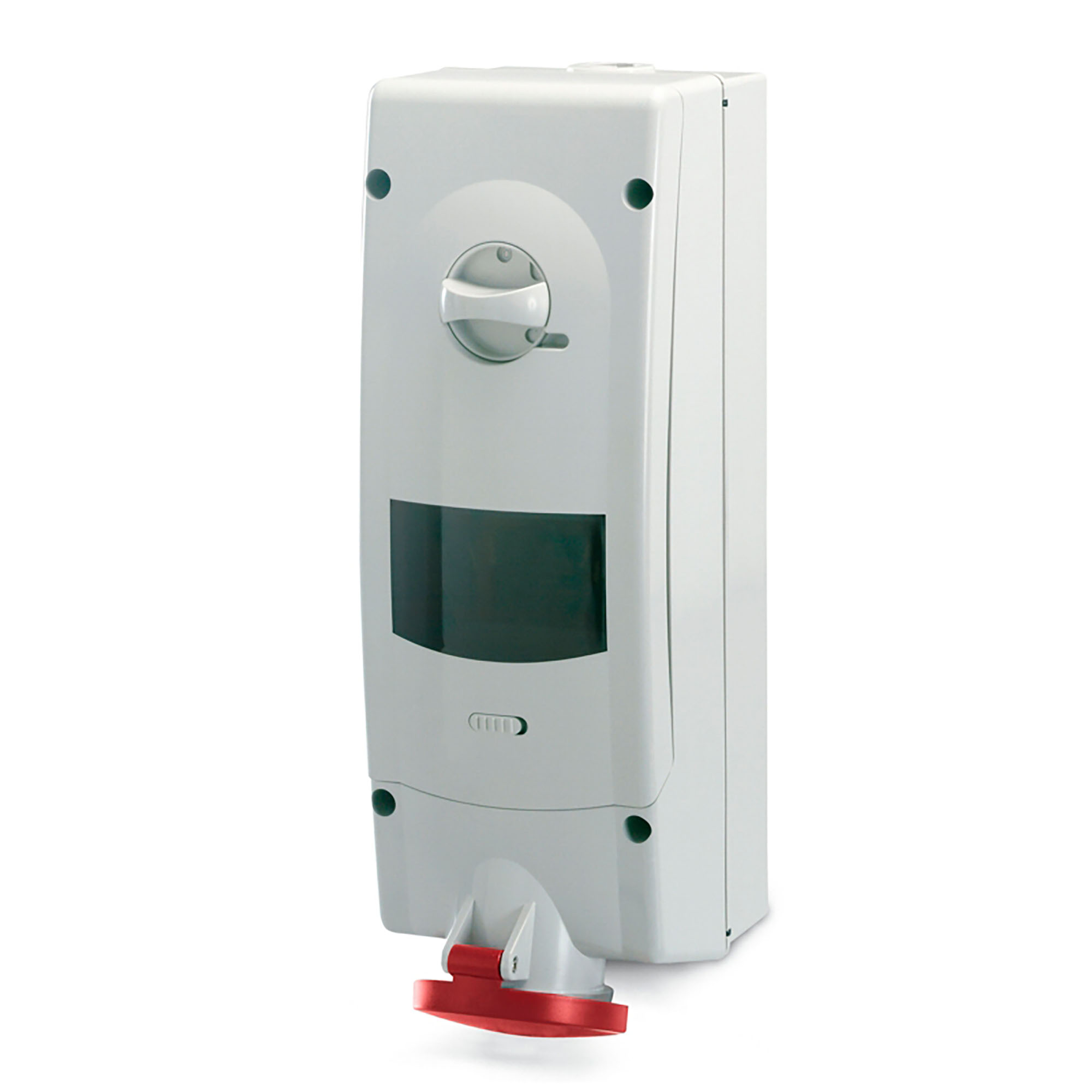

Interlocked socket ADV2 3P+N 32A 6h IP44 RCD
Code:
DIS5673287R
Interlocked socket ADV2 3P+N 32A 6h IP44 RCD
Code:
DIS5673287R
| Switch | Mechanical locking |
| Number of poles | 5 |
| Material housing | Plastic |
| IEC-amperage, A | 32 |
| Amperage according to UL/CSA (for UL-version), A | 32 |
| Type of switch | Auxiliary contacts |
| Empty locations on mounting rail | Yes |
| With earth leakage switch | Yes |
| Degree of protection (IP) | IP44 |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Protection | Mixed |
| Product type | Surface mounting interlocked socket with DIN-rail |
| Voltage | 400V |
The accompanying goods

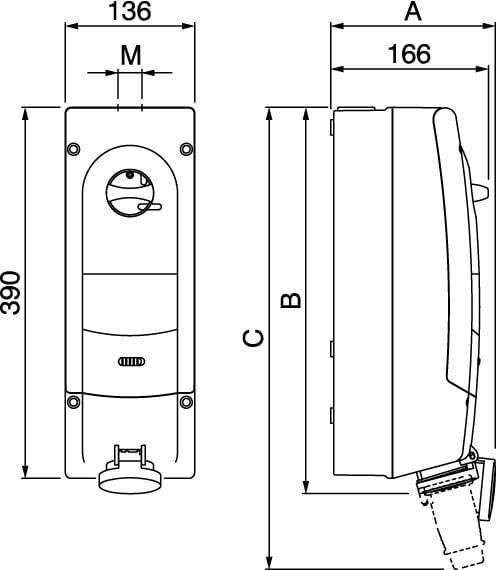

Drawings
