| Model | Surface mounted (plaster) |
| Number of poles | 4 |
| Material | Plastic |
| Type of fastening | External mounting |
| IEC-amperage, A | 16 |
| Degree of protection (IP) | IP44 |
| Military model | No |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Connection system | Screwed terminal |
| Contact less detection of the sense of rotation | No |
| Angle of plug | Right-angled |
| For heavy conditions (according to VDE) | No |
| Phase inverter | No |
| Empty locations on mounting rail | No |
| Number of height units | 1 |
| With earth leakage switch | No |
| Total number of groups | 1 |
| Flange size vertical | 390 |
| Flange size horizontal | 136 |
| Width of device | 136 |
| Height of device | 405 |
| Depth of device | 163 |
| Height, mm | 406 |
| Width, mm | 136 |
| Temperature of operation, °C | 60 |
| Shock resistance, J | 2 |
| Depth, mm | 180 |

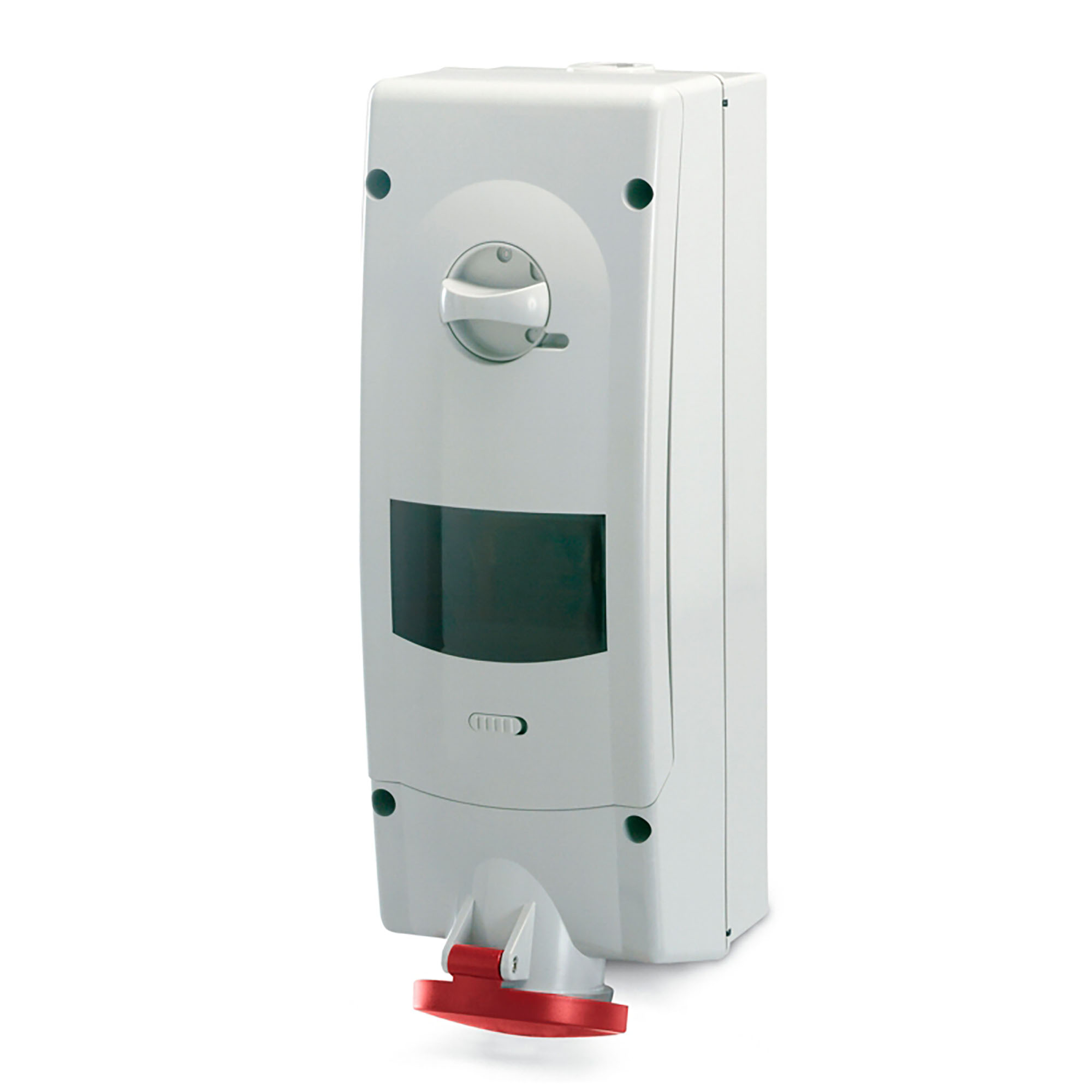

| Product type | Surface mounting interlocked socket with DIN-rail |
| Voltage | 400V |

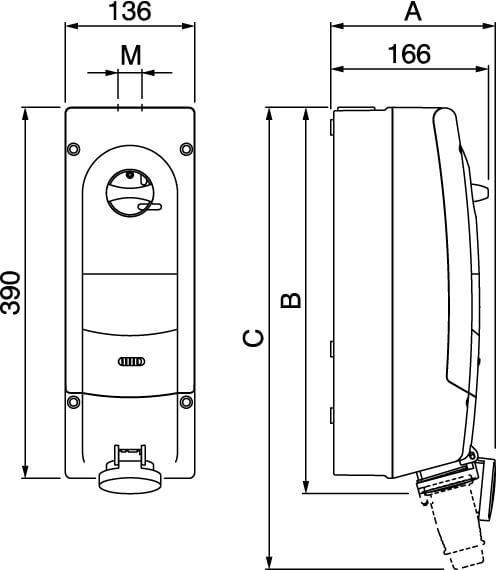

Drawings
| Seria | Name | DWG | Eplan |
|---|---|---|---|
|
