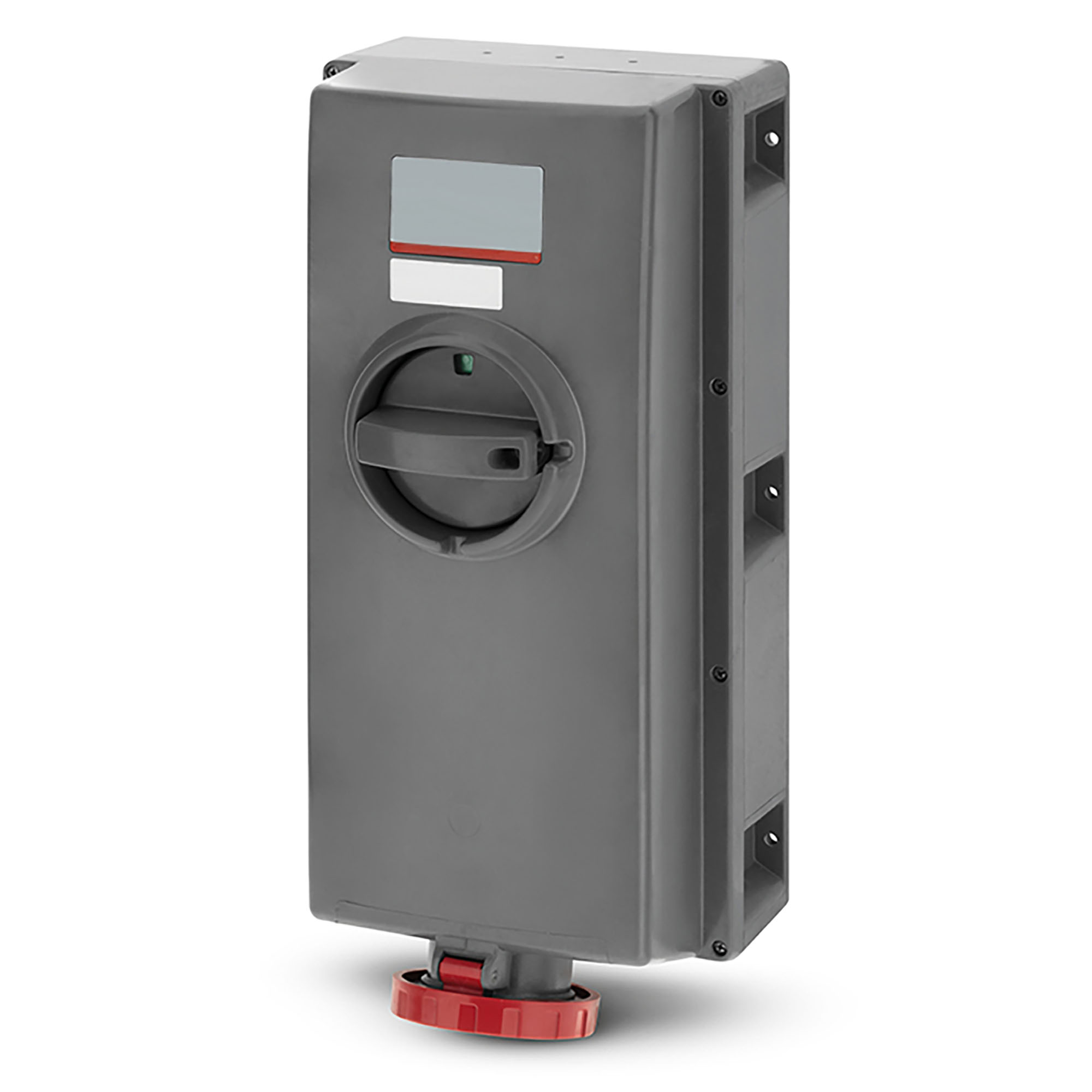

INTERLOCKED SOCKET 3P+N+E IP66 125A 6h
Code: DIS50312587RM
INTERLOCKED SOCKET 3P+N+E IP66 125A 6h
Code: DIS50312587RM
| Number of poles | 5 |
| Material | Plastic |
| IEC-amperage, A | 125 |
| Degree of protection (IP) | IP67 |
| Military model | Yes |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Flange size vertical, mm | 575 |
| Flange size horizontal, mm | 280 |
| Angle of plug | Angled |
| Connection system | Screwed terminal |
| Product type | Surface mounting interlocked socket with DIN-rail |
| Voltage | 400V |

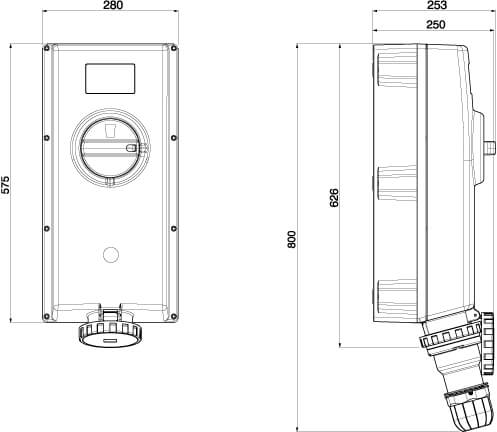

Drawings
| Seria | Name | DWG | Eplan |
|---|---|---|---|
|
