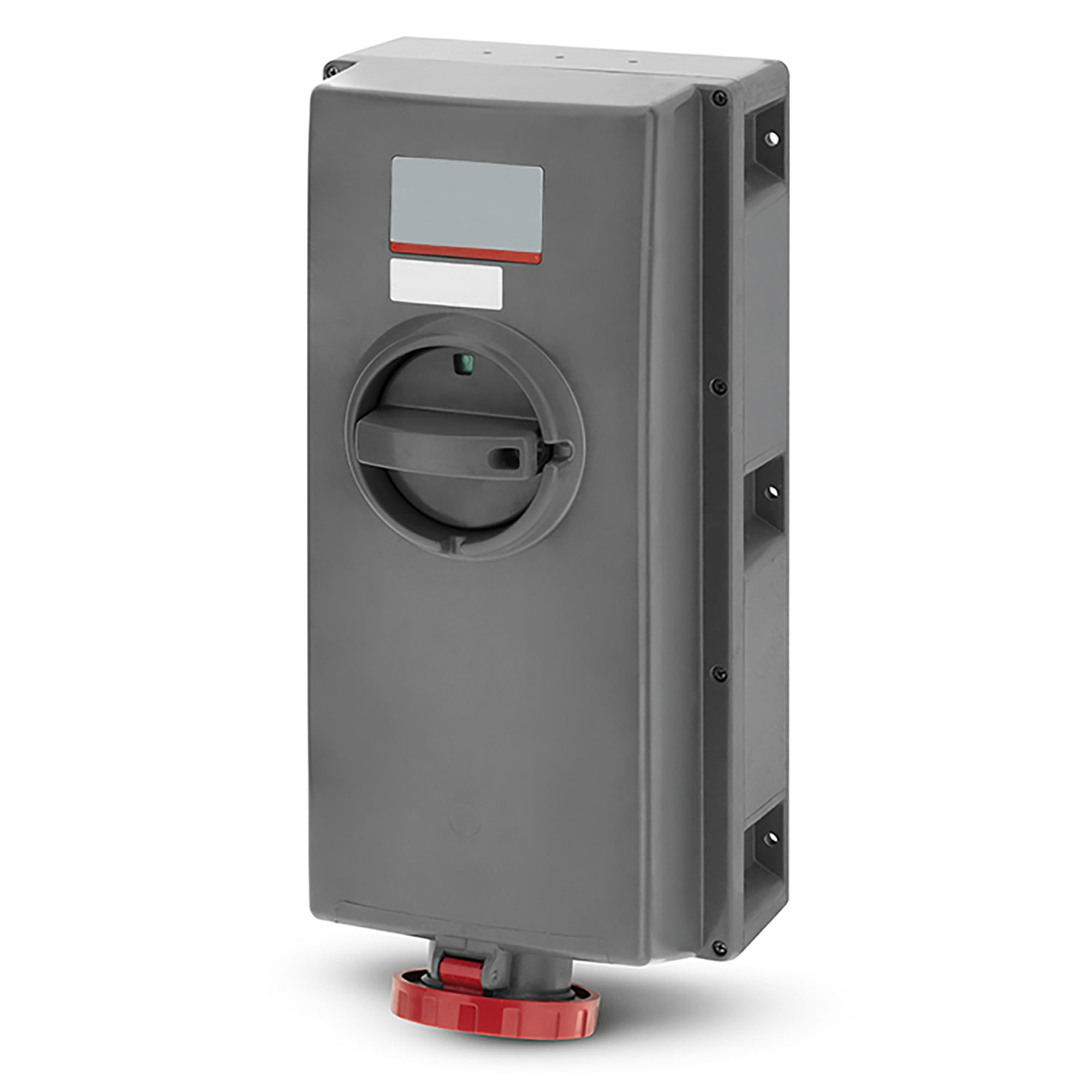

INTERLOCKED SOCKET 3P+N+E IP66 125A 6h

Code: DIS50312587M
INTERLOCKED SOCKET 3P+N+E IP66 125A 6h
  • To ask a question
Number of poles 5
Material Plastic
IEC-amperage, A 125
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 575
Flange size horizontal, mm 280
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 280
Height of device 626
Depth of device 254
Product type Surface mounting interlocked socket with DIN-rail
Voltage 400V

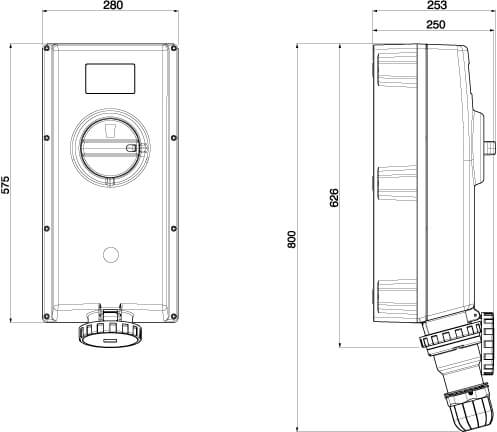

Drawings
