Switch | Mechanical locking |
Number of poles | 4 |
Material housing | Plastic |
IEC-amperage, A | 63 |
Amperage according to UL/CSA (for UL-version), A | 63 |
Type of switch | Auxiliary contacts |
Empty locations on mounting rail | Yes |
With earth leakage switch | Yes |
Degree of protection (IP) | IP67 |
Clock hour position, h | 6 |
Identification colour | Red |
Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
Protection | Mixed |

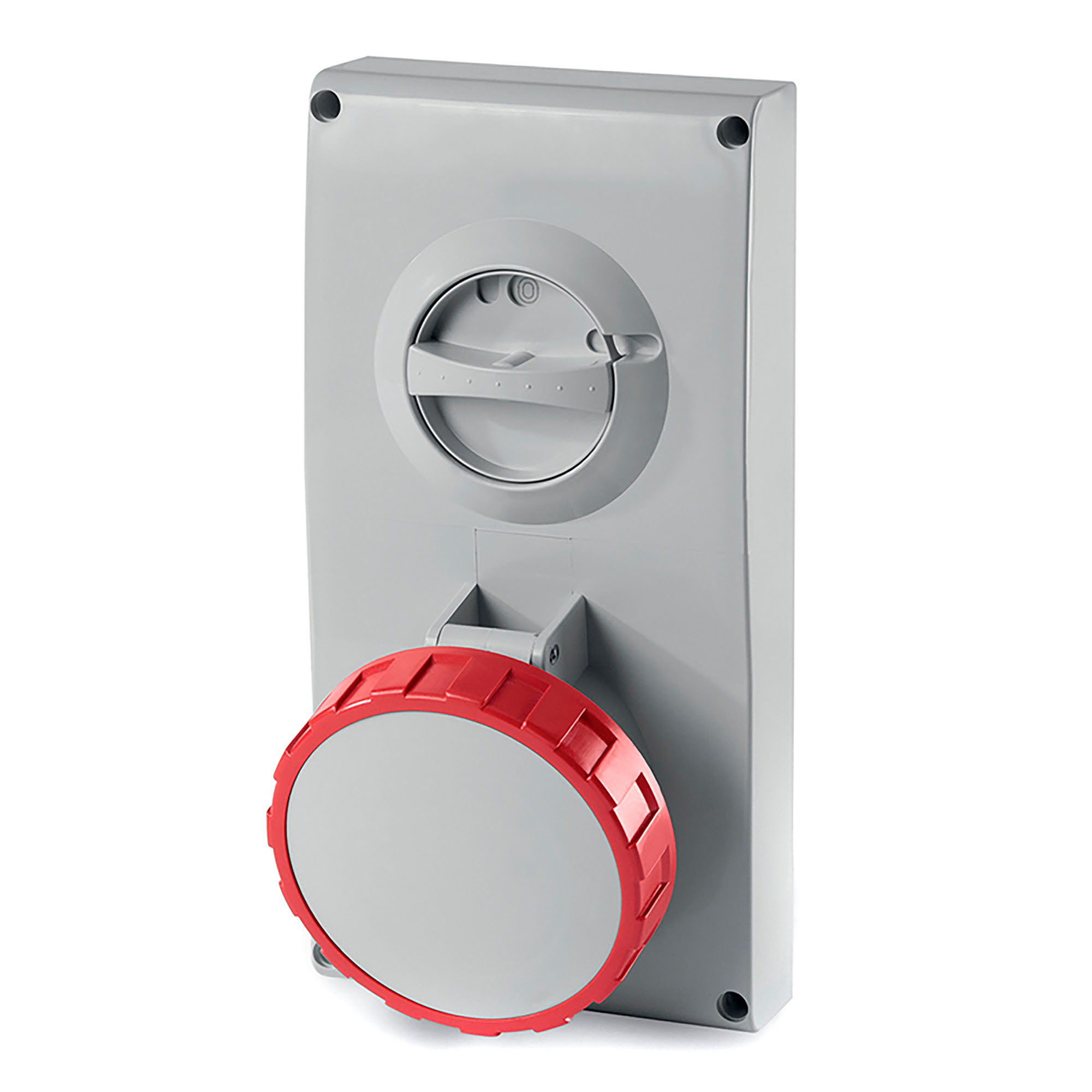

Product type | Flush-mounting interlocked socket |
Voltage | 400V |
