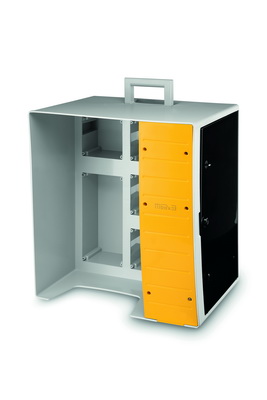

QUADRO Mbox3 VUOTO 4+1 63A omnia s/porta

Code: DIS6570035
QUADRO Mbox3 VUOTO 4+1 63A omnia s/porta
  • To ask a question
Mounting method Flush mounted (plaster)
Colour Yellow
Width, mm 465
Model Other
Halogen free No
Depth 382
Surface protection Other
Construction type Built-in installation box (device box)
Length, mm 522
Sealable No
Circuit integrity None
Material Plastic
Number of inlets 2
Mounting switching equipment Screwing
Luminaire hook mounting No
With screening No
With nail lugs No
With screws No
Wind proof Yes
Degree of protection (IP) IP66
Inlet from the rear Yes
Pipe locking No
Clamp position fixed No
Nozzle Other
Width of device 465
Height of device 522
Depth of device 382
Shape Rectangular
For tube diameter Other
Type of housing feed-through None
Equipped with Other
Cover attachment Screwed
Number of modules 39
Product type MBox Enclosures
