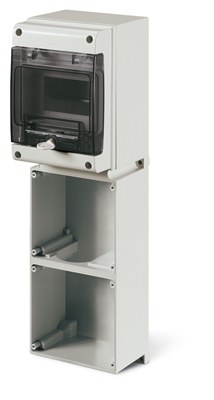

SURFACE MOUNTING SYSTEM 6 DIN
Code:
DIS5720311
SURFACE MOUNTING SYSTEM 6 DIN
Code:
DIS5720311
Removed from the product range
| Colour | Grey |
| Width, mm | 138 |
| Model | Other |
| Halogen free | No |
| Surface protection | Other |
| Construction type | Built-in installation box (device box) |
| Length, mm | 474 |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 4 |
| Mounting switching equipment | Screwing |
| Luminaire hook mounting | No |
| With screening | No |
| With nail lugs | No |
| With screws | No |
| Wind proof | Yes |
| Degree of protection (IP) | IP66 |
| Inlet from the rear | Yes |
| Pipe locking | No |
| Clamp position fixed | No |
| Nozzle | Other |
| Width of device, mm | 138 |
| Height of device, mm | 474 |
| Depth of device, mm | 143 |
| Shape | Rectangular |
| For tube diameter | Other |
| Equipped with | Other |
| Cover attachment | Screwed |
| Number of modules | 6 |
| Product type | Block Enclosures |
