Switch | Mechanical locking |
Number of poles | 3 |
Material housing | Plastic |
IEC-amperage, A | 16 |
Amperage according to UL/CSA (for UL-version), A | 16 |
Type of switch | Auxiliary contacts |
Empty locations on mounting rail | Yes |
With earth leakage switch | Yes |
Degree of protection (IP) | IP67 |
Clock hour position, h | 6 |
Identification colour | Blue |
Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
Protection | Mixed |

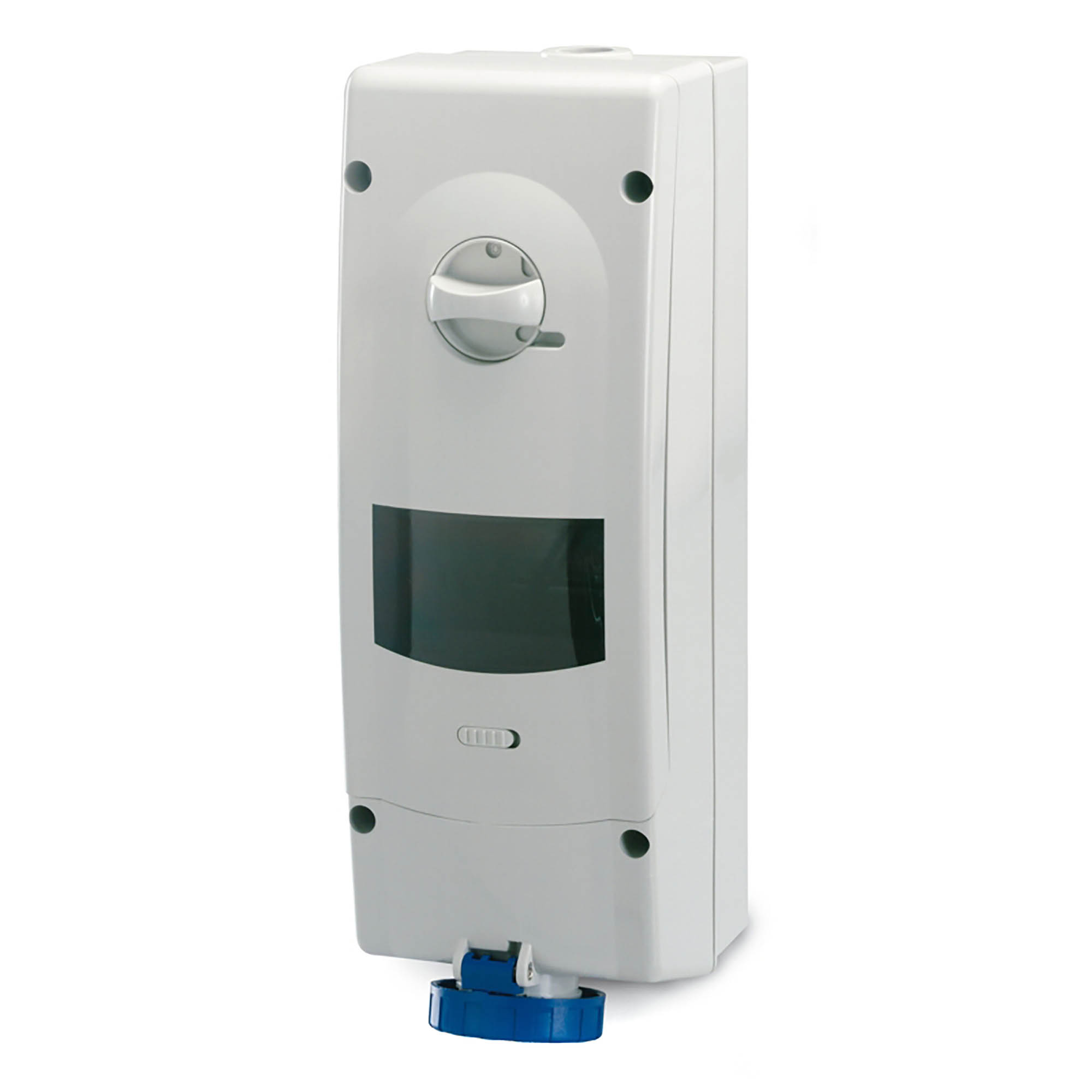

Product type | Surface mounting interlocked socket with DIN-rail |
Voltage | 230 V |
