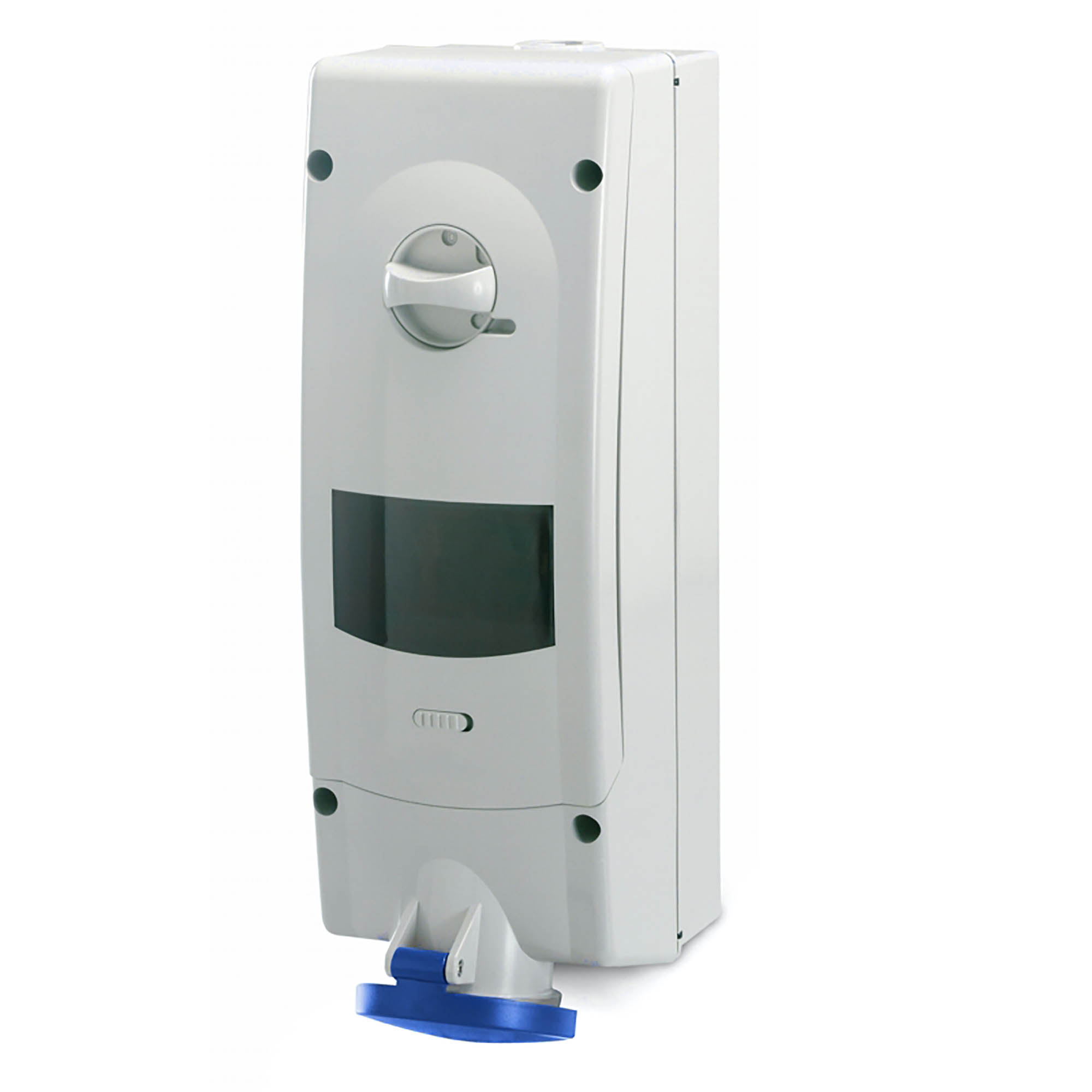

Interlocked socket ADV2 2P+T 16A 6h IP44 RCD&MCB

Code: DIS5671683RM

Interlocked socket ADV2 2P+T 16A 6h IP44 RCD&MCB

Code: DIS5671683RM
Switch Mechanical locking
Number of poles 3
Material housing Plastic
IEC-amperage, A 16
Amperage according to UL/CSA (for UL-version), A 16
Empty locations on mounting rail Yes
With earth leakage switch Yes
Degree of protection (IP) IP44
Clock hour position, h 6
Identification colour Blue
Voltage according to EN 60309-2 230 V (50+60 Hz) blue
Protection Mixed
Product type Surface mounting interlocked socket with DIN-rail
Voltage 230 V

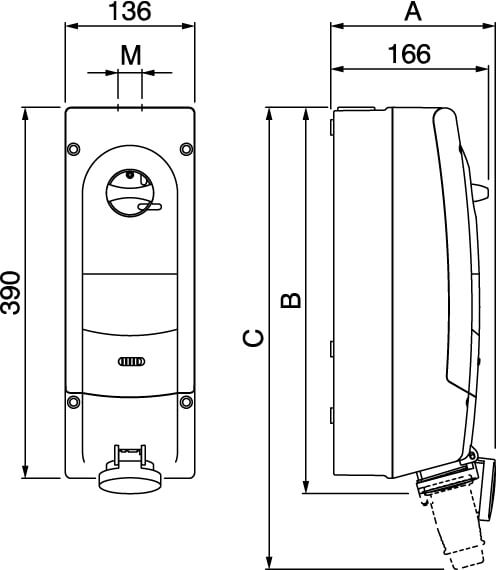

Drawings
