INTERLOCKED SOCKET 2P+E IP66 125A 6h

Code: DIS50312583M
Number of poles 3
Material Plastic
IEC-amperage, A 125
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Flange size vertical, mm 575
Flange size horizontal, mm 280
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 108
Height of device 99
Depth of device 61

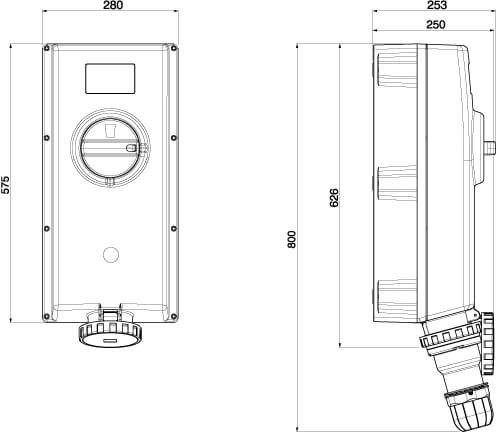

Drawings
