| Switch | Mechanical locking |
| Protection | Mixed |
| Material housing | Plastic |
| Amperage according to UL/CSA (for UL-version), A | 32 |
| Empty locations on mounting rail | No |
| With earth leakage switch | No |
| Number of poles | 5 |
| IEC-amperage, A | 32 |
| Degree of protection (IP) | IP44 |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |

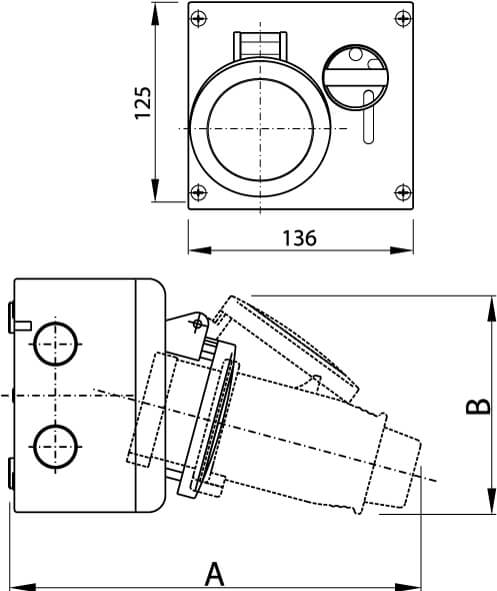

| Height, mm | 125 |
| Width, mm | 136 |
| Temperature of operation, °C | 60 |
| Shock resistance, J | 2 |
| Depth, mm | 148 |

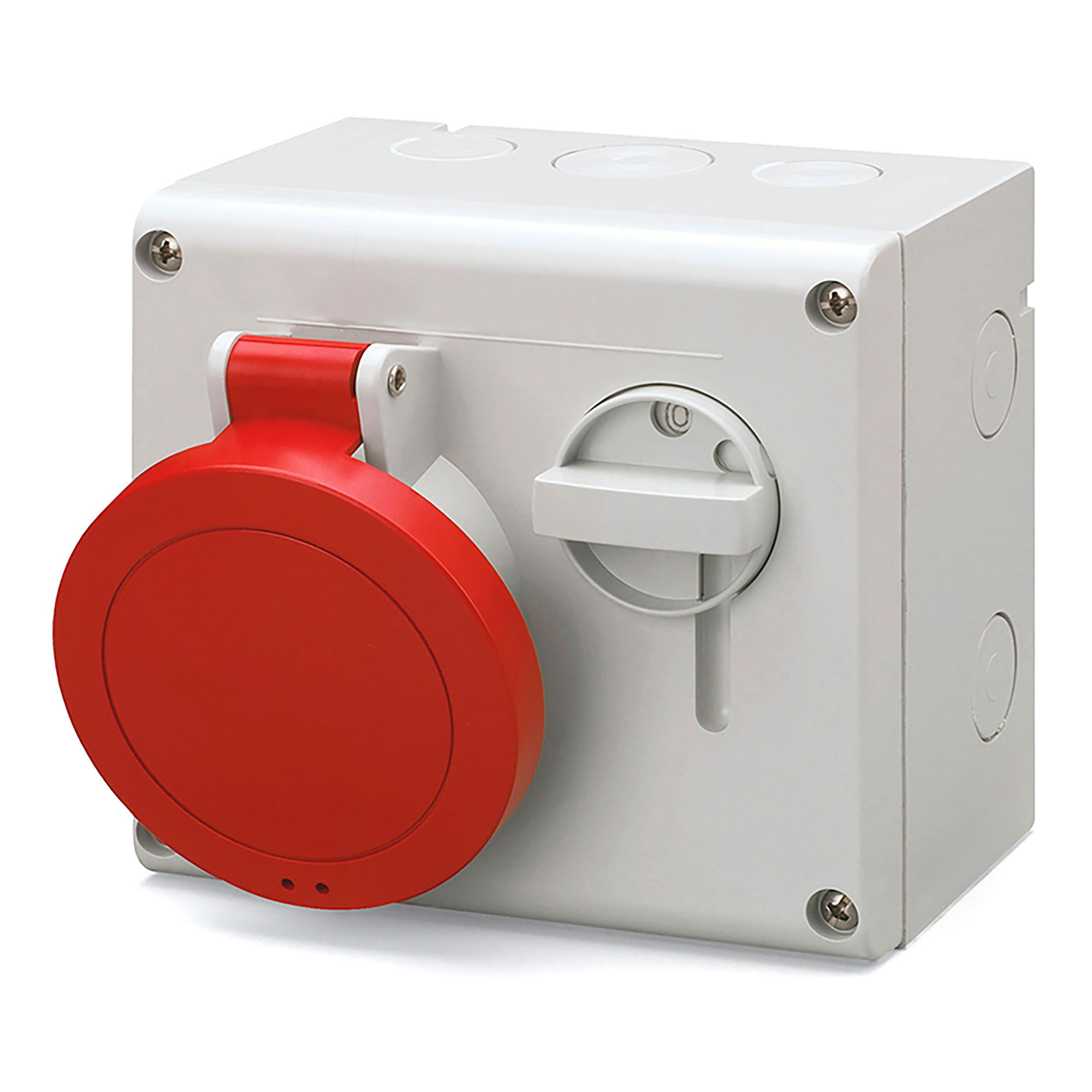

| Product type | Surface mounting interlocked socket |
| Voltage | 400V |
| Honest SIGN system. Commodity group | Radio‑electronic products |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.33.13.110 |
| Commodity Nomenclature of Foreign Economic Activity | 8536699008 |
