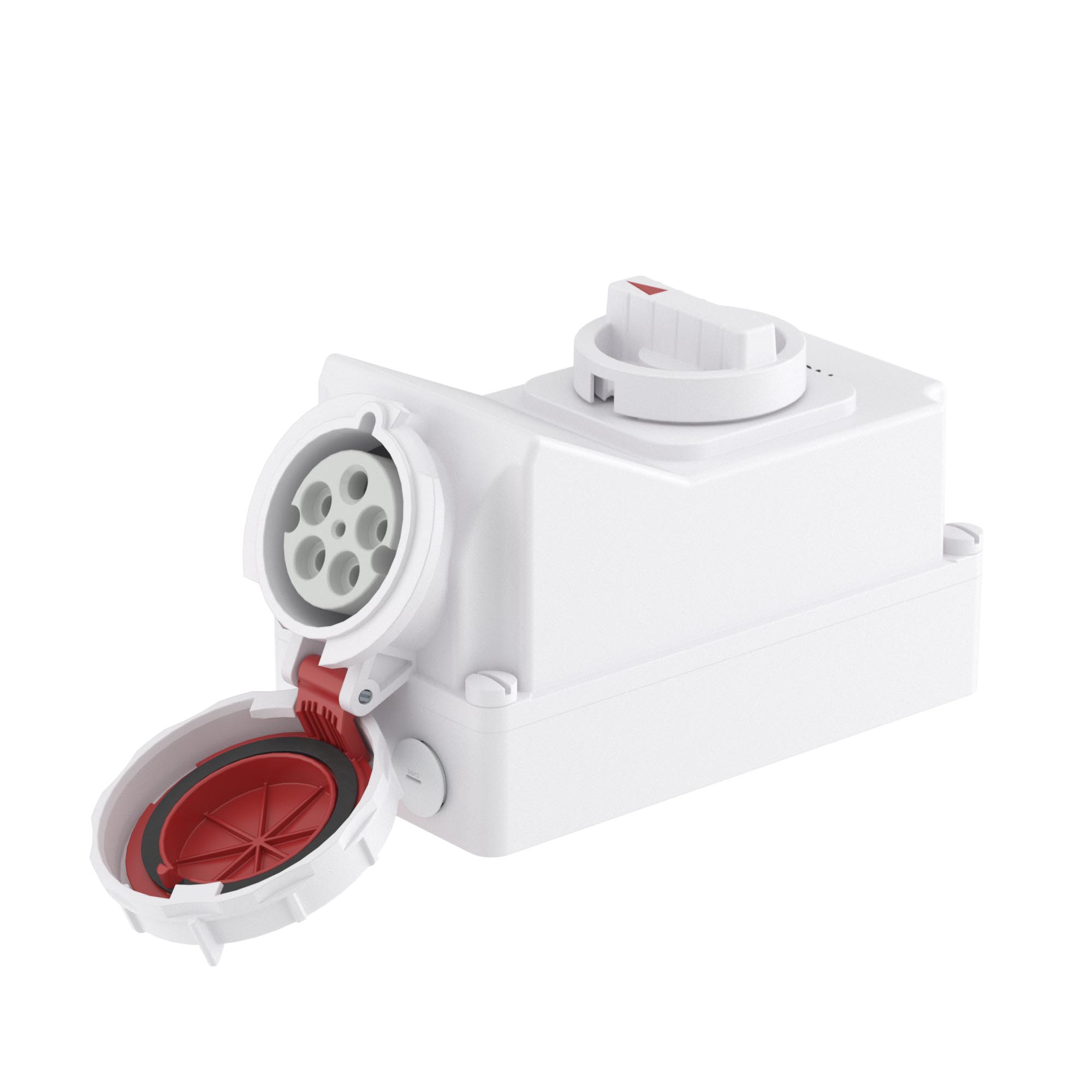

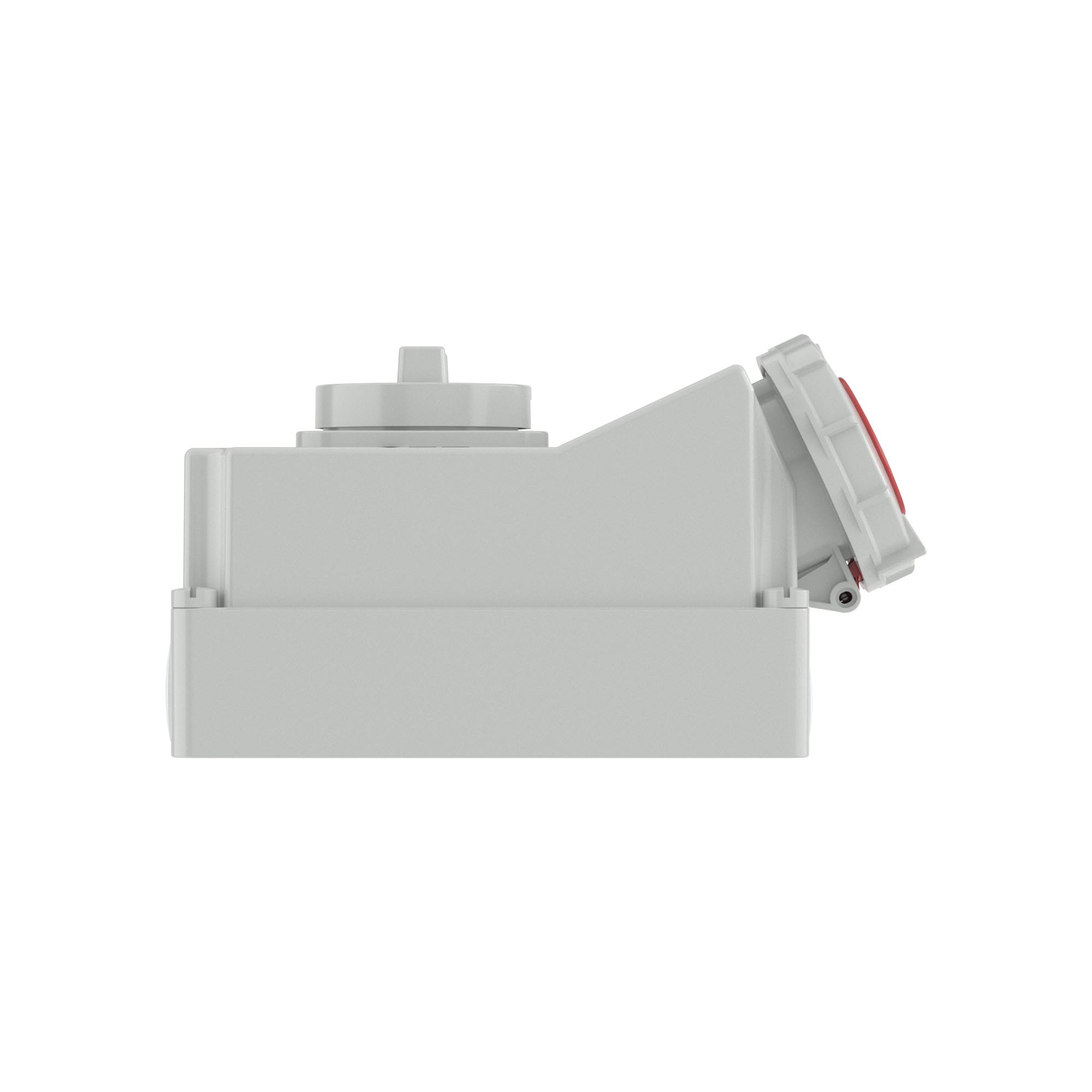

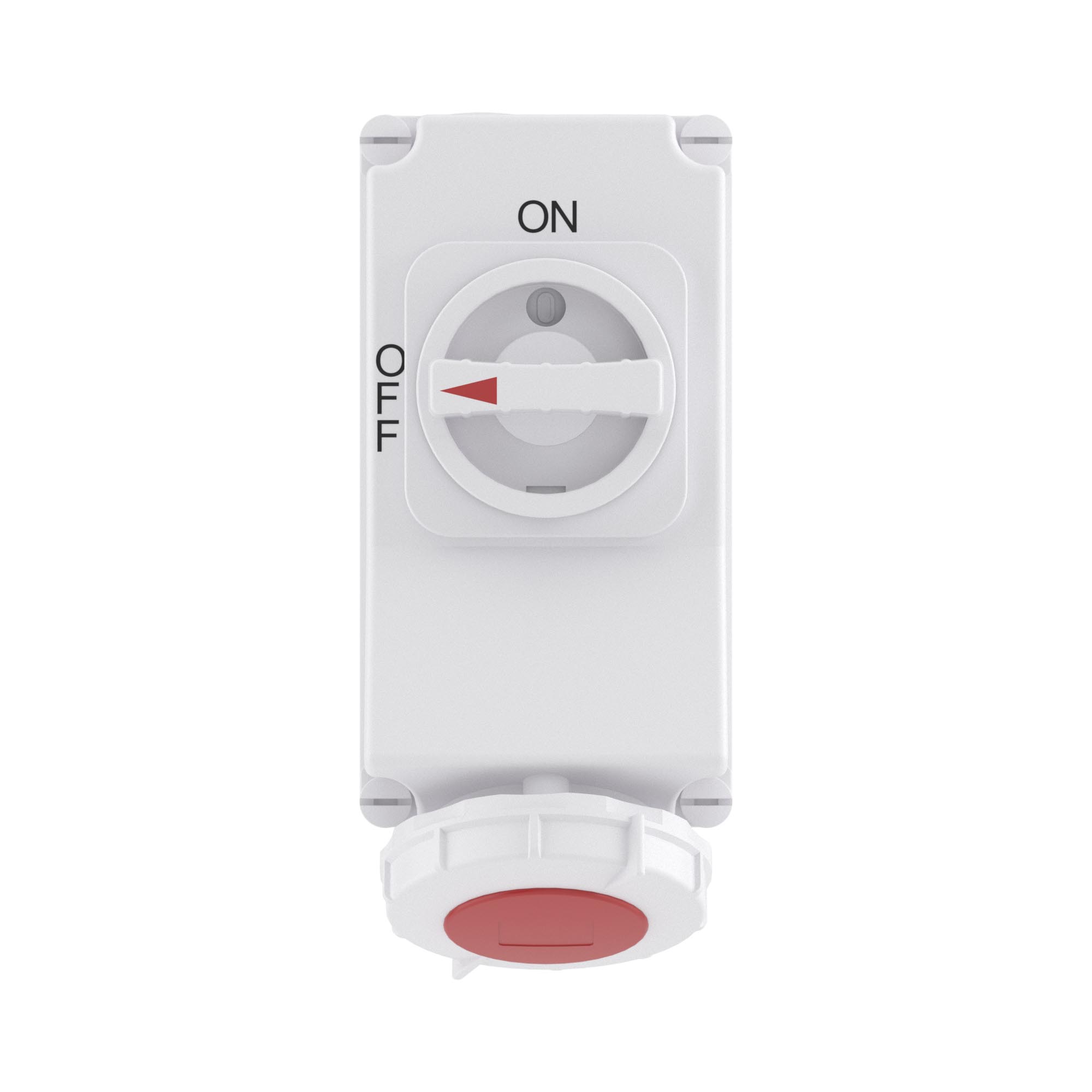

Interlocked socket. Surface mounting. IP67 63A 3P+E+N 400V

Code: DIS5616387
Interlocked socket. Surface mounting. IP67 63A 3P+E+N 400V
  • To ask a question
Number of poles 5
Material Plastic
IEC-amperage, A 63
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 390
Flange size horizontal, mm 136
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 136
Height of device 438
Depth of device 182
Height, mm 610
Width, mm 136
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 211
Product type Surface mounting interlocked socket
Voltage 400V

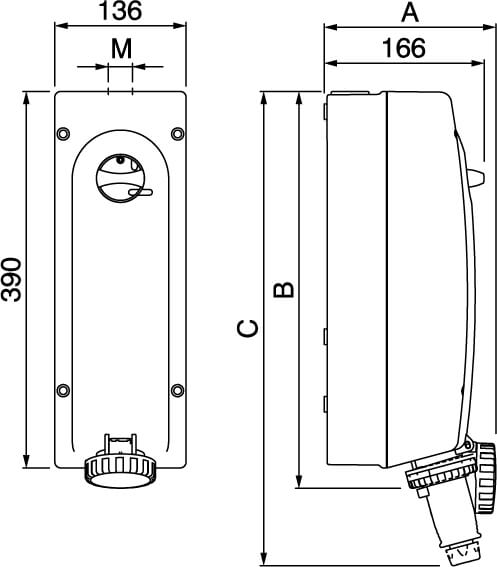

Drawings
