Code: DIS5616386
Number of poles3
MaterialPlastic
IEC-amperage, A63
Degree of protection (IP)IP67
Military modelNo
Clock hour position, hClock hour position, hClock hour position, hClock hour position, hClock hour position, hClock hour position, h6
Identification colourRed
Voltage acc. EN 60309-2400 V (50+60 Hz) red

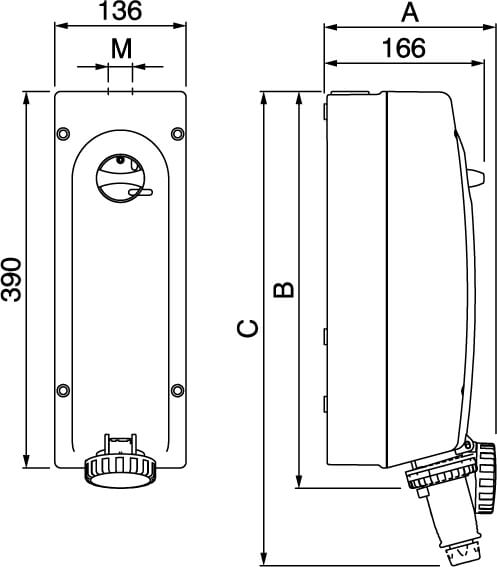

Flange size vertical, mm390
Flange size horizontal, mm136
