Code: DIS5601687
Number of poles3
MaterialPlastic
IEC-amperage, A16
Degree of protection (IP)IP44
Military modelNo
Clock hour position, hClock hour position, hClock hour position, hClock hour position, hClock hour position, hClock hour position, h6
Identification colourRed
Voltage acc. EN 60309-2400 V (50+60 Hz) red

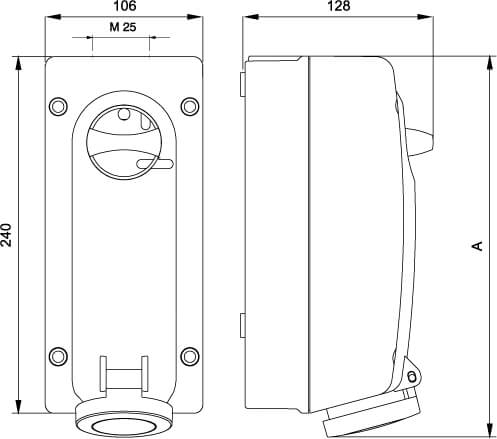

Flange size vertical, mm240
Flange size horizontal, mm106
