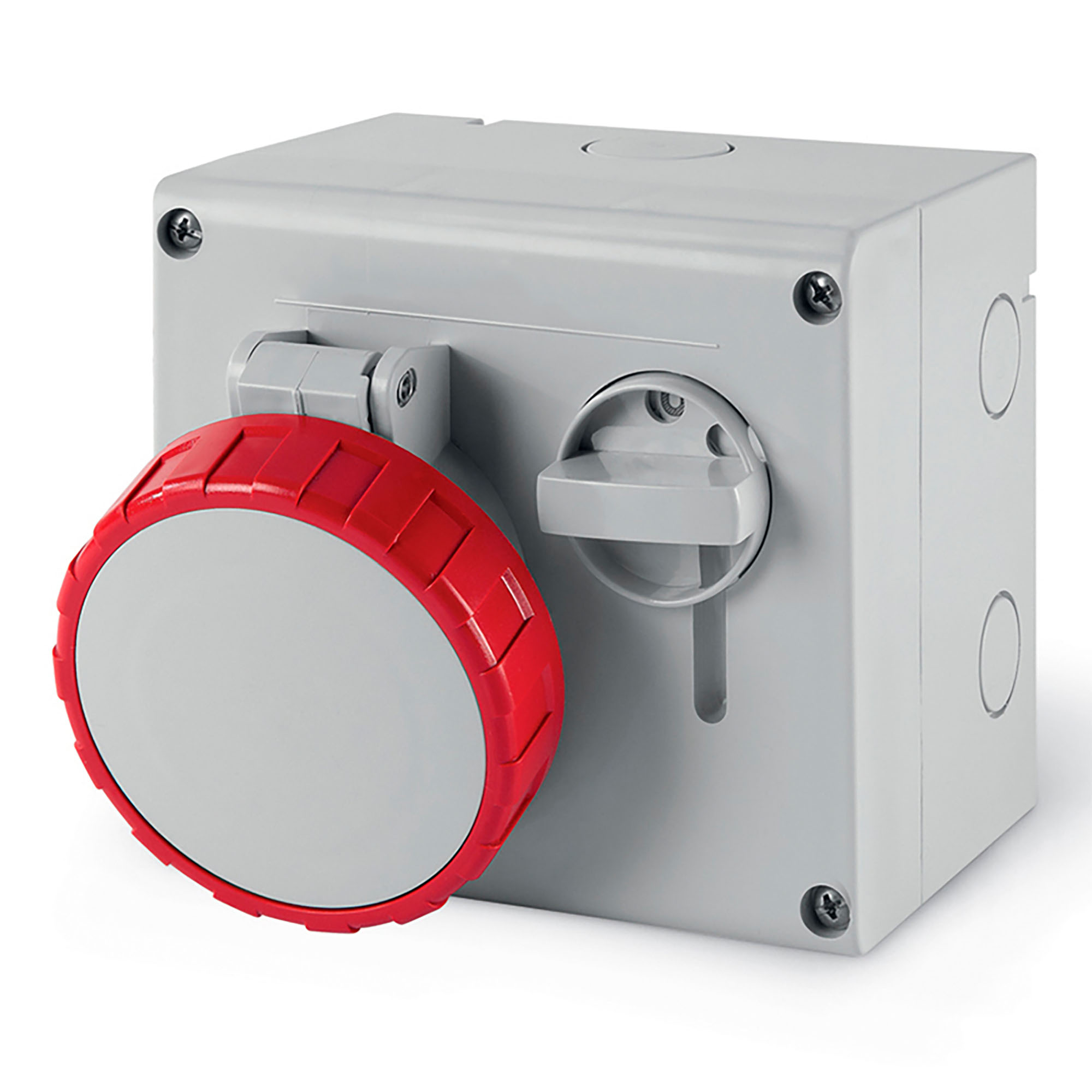

Interlocked socket. Surface mounting. IP67 16A 3P+E+N 400V
Code: DIS5051687
Interlocked socket. Surface mounting. IP67 16A 3P+E+N 400V
Code: DIS5051687
| Number of poles | 5 |
| Material | Plastic |
| IEC-amperage, A | 16 |
| Degree of protection (IP) | IP67 |
| Military model | Yes |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Flange size vertical, mm | 125 |
| Flange size horizontal, mm | 136 |
| Angle of plug | Angled |
| Connection system | Screwed terminal |
| Height, mm | 125 |
| Width, mm | 136 |
| Temperature of operation, °C | 60 |
| Shock resistance, J | 2 |
| Depth, mm | 145 |
| Product type | Surface mounting interlocked socket |
| Voltage | 400V |

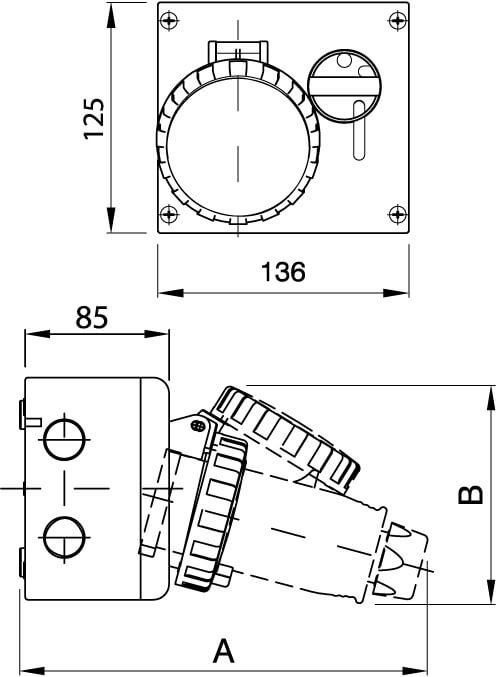

Drawings
| Seria | Name | DWG | Eplan |
|---|---|---|---|
|
