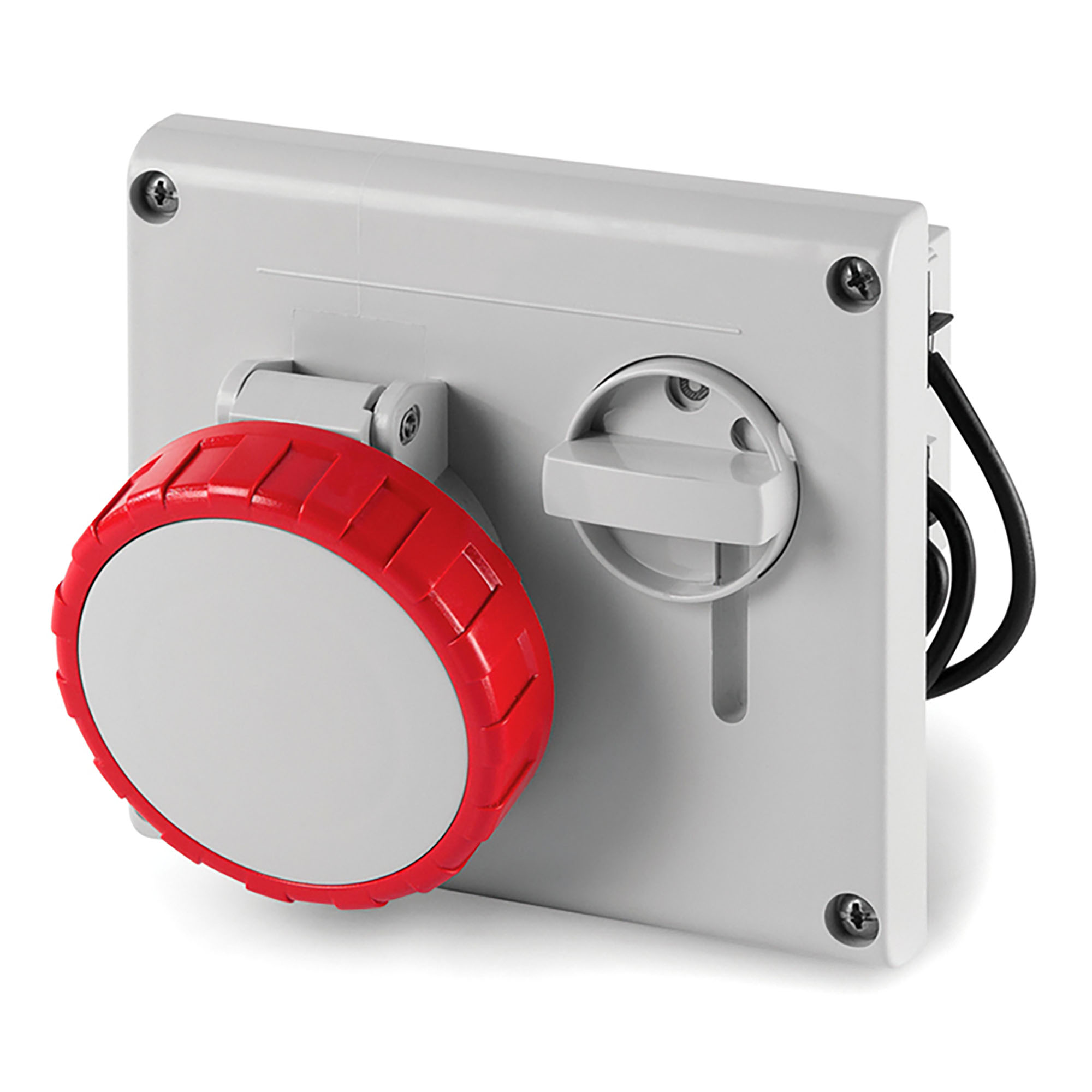

Interlocked socket. Flush mounting. IP67 16A 3P+E 400V

Code: DIS4051686
Number of poles 4
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 125
Flange size horizontal, mm 136
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 108
Height of device 140
Depth of device 140
Height, mm 125
Width, mm 136
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 108

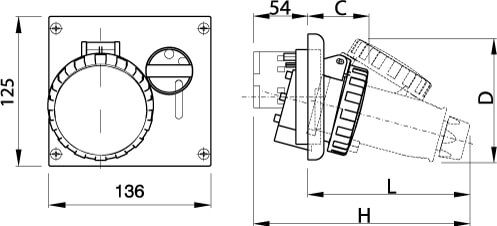

Drawings
