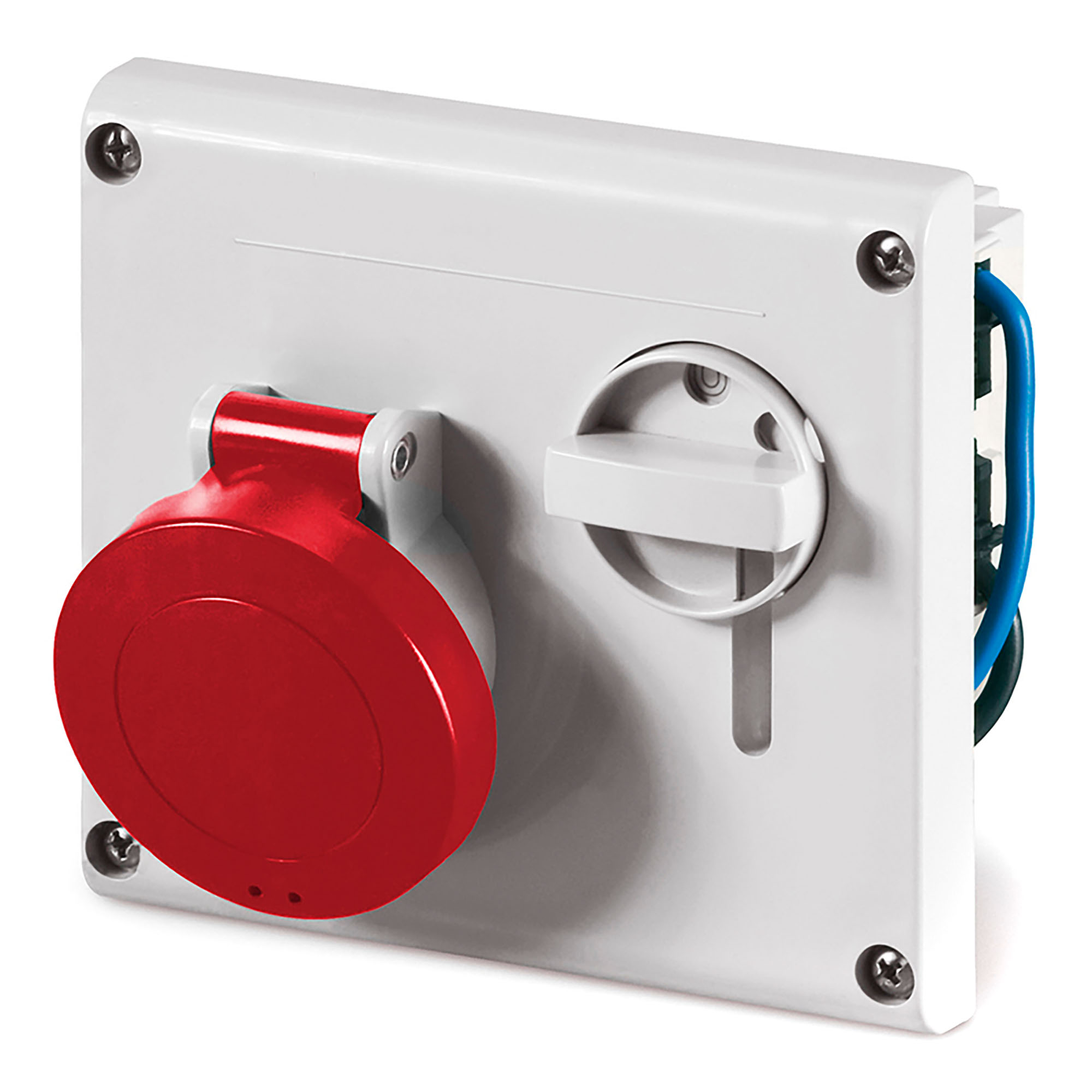

Interlocked socket. Flush mounting. IP44 32A 3P+E 400V

Code: DIS4003286
Interlocked socket. Flush mounting. IP44 32A 3P+E 400V
Interlocked socket. Flush mounting. IP44 32A 3P+E 400V
Code: DIS4003286
Removed from the product range . Proposed replacement: DIS5603286
  • To ask a question
  • Characteristics

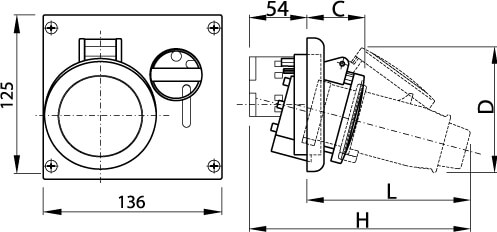

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Number of poles 4
Material Plastic
IEC-amperage, A 32
Degree of protection (IP) IP44
Military model Yes
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 125
Flange size horizontal, mm 136
Angle of plug Angled
Connection system Screwed terminal
Height, mm 125
Width, mm 136
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 117
Product type Flush-mounting interlocked socket
Voltage 400V
